Impala LS, Gas
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Lock Control System
>>
Wiring Schematics
>>
Shift Lock Control Wiring Schematics
>>
Shift Lock Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Shift Lock Control System

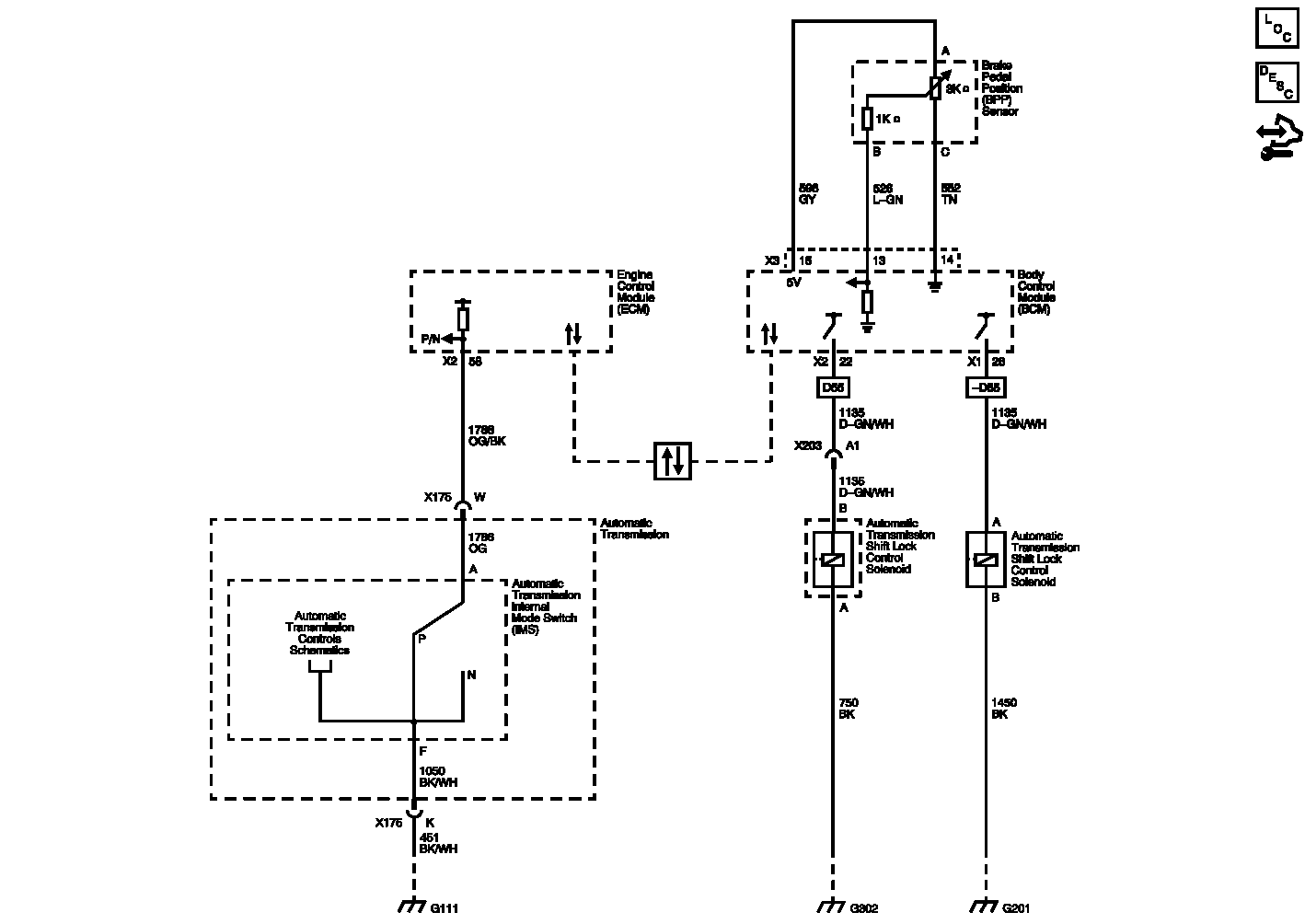

Fig 1: Shift Lock Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
