Manifold Absolute Pressure Sensor Replacement

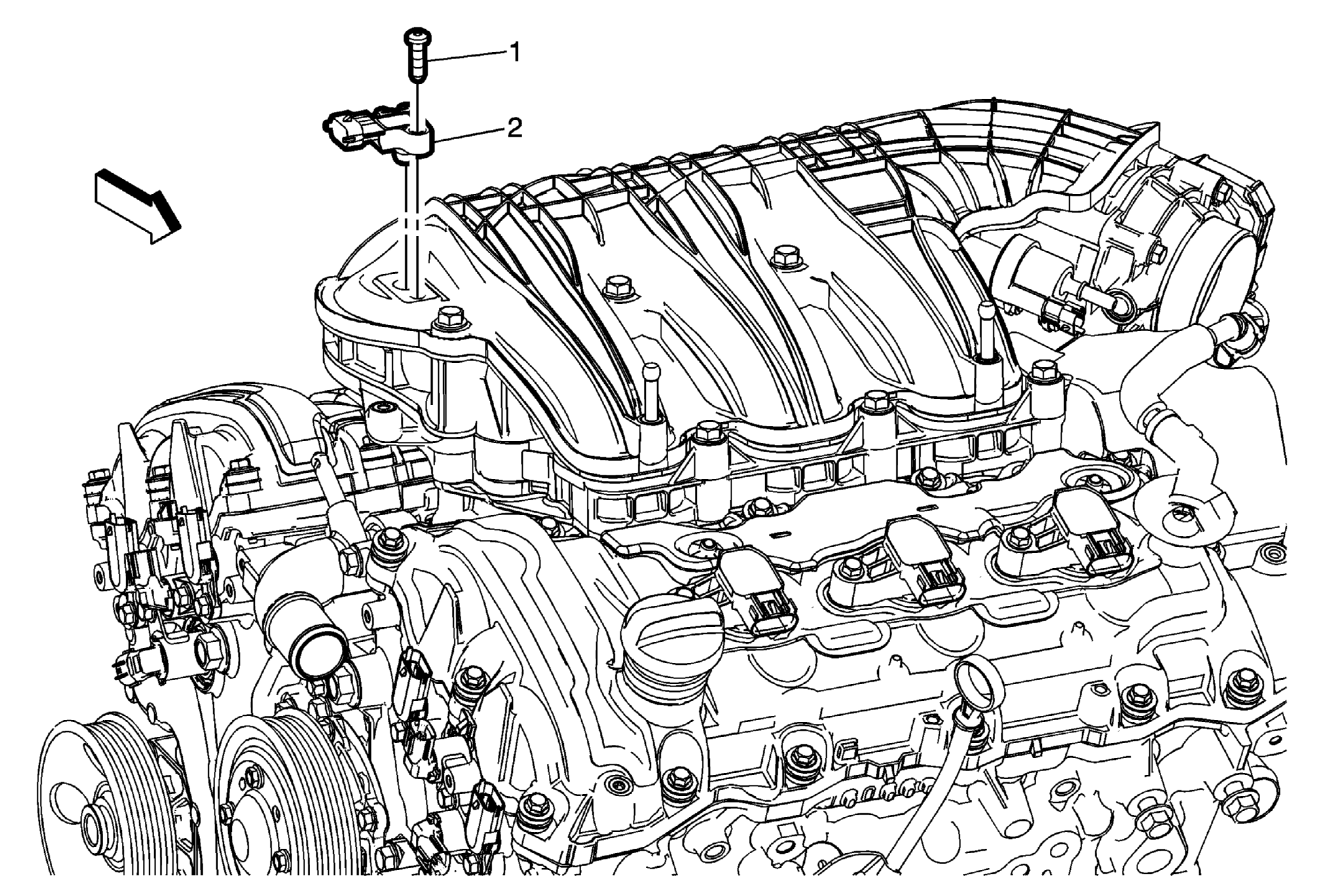

Fig 1: Manifold Absolute Pressure Sensor
GM2614916Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor Replacement

Callout Component Name
Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1 Manifold Absolute Pressure Sensor Bolt.
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Manifold Absolute Pressure Sensor.
Procedure
Disconnect the MAP sensor harness connector.
