Secondary Air Injection Pipe Replacement

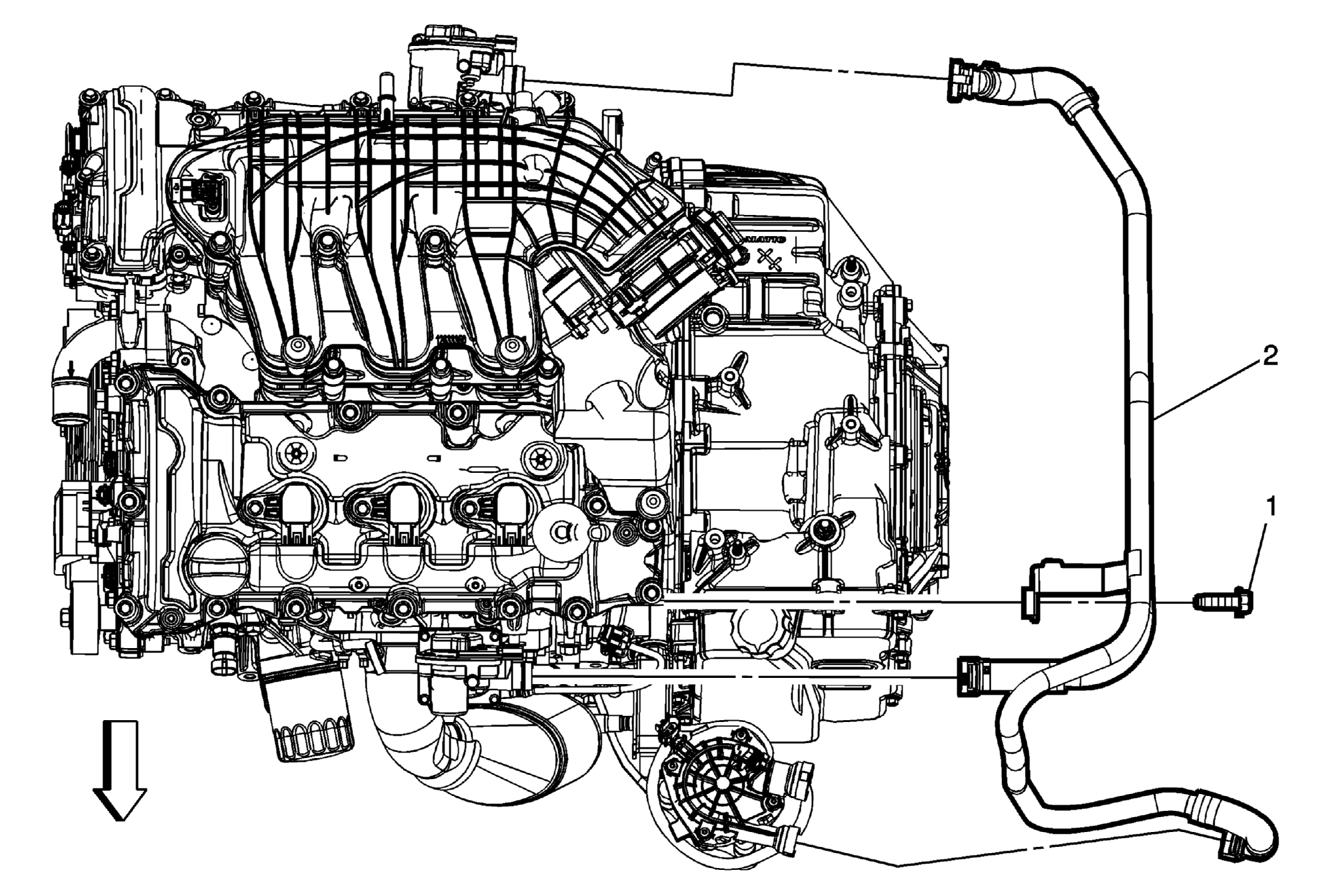

Fig 1: Secondary Air Injection Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Secondary Air Injection Pipe Bolt. CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Secondary Air Injection Pipe. Procedure Disconnect the quick connect fittings by squeezing both sides.

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Secondary Air Injection Pipe Bolt.

CAUTION:

Tighten
58 N.m (43 lb ft)

Secondary Air Injection Pipe.
Procedure
Disconnect the quick connect fittings by squeezing both sides.
