Keyless Entry Receiver: Locations




Instrument Panel/Center Console Component Views

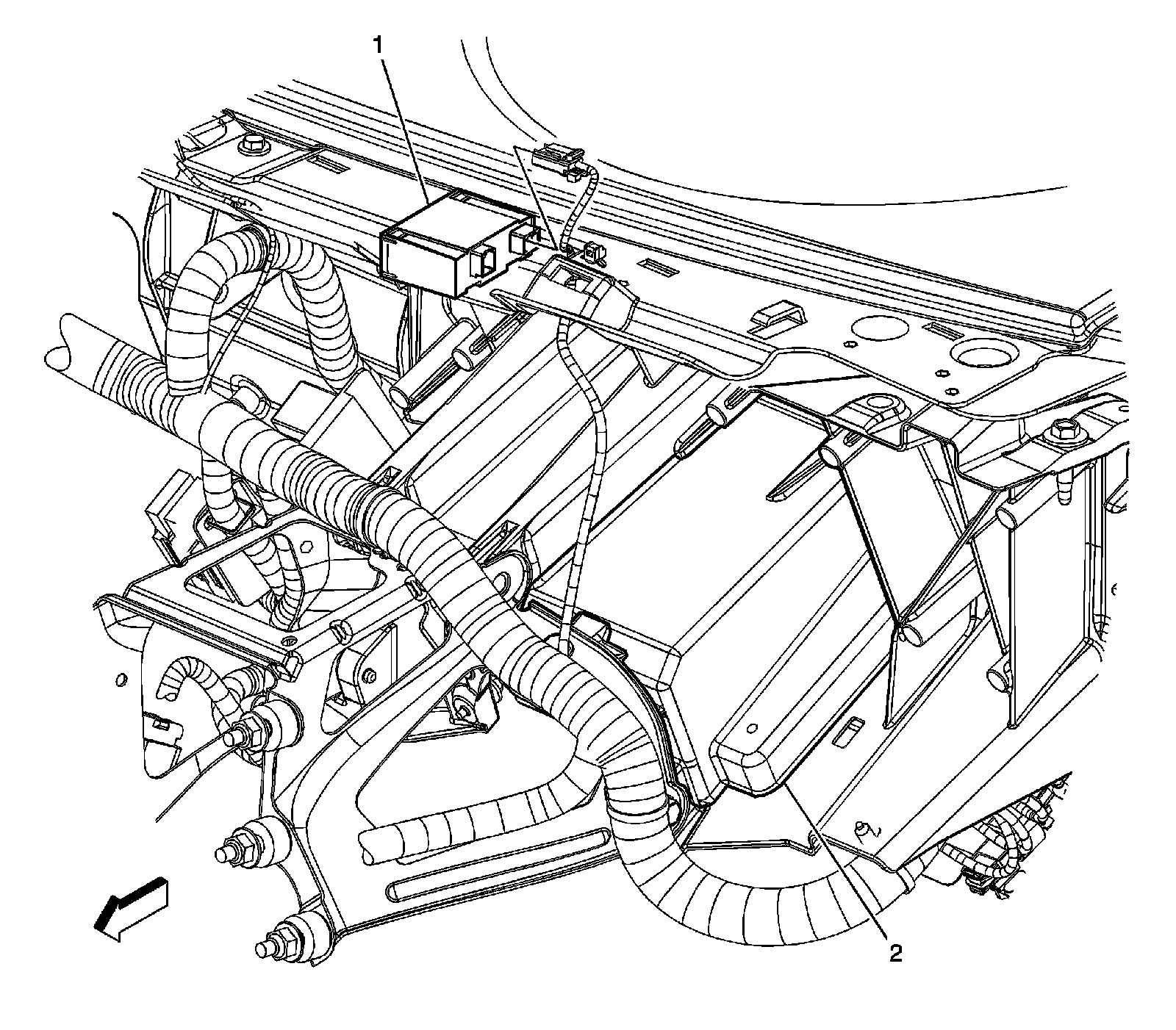

Behind the Instrument Panel Components





1 - Remote Control Door Lock Receiver (RCDLR)

2 - Instrument Panel Carrier
