Above the Windshield Components

Passenger Compartment/Roof Component Views

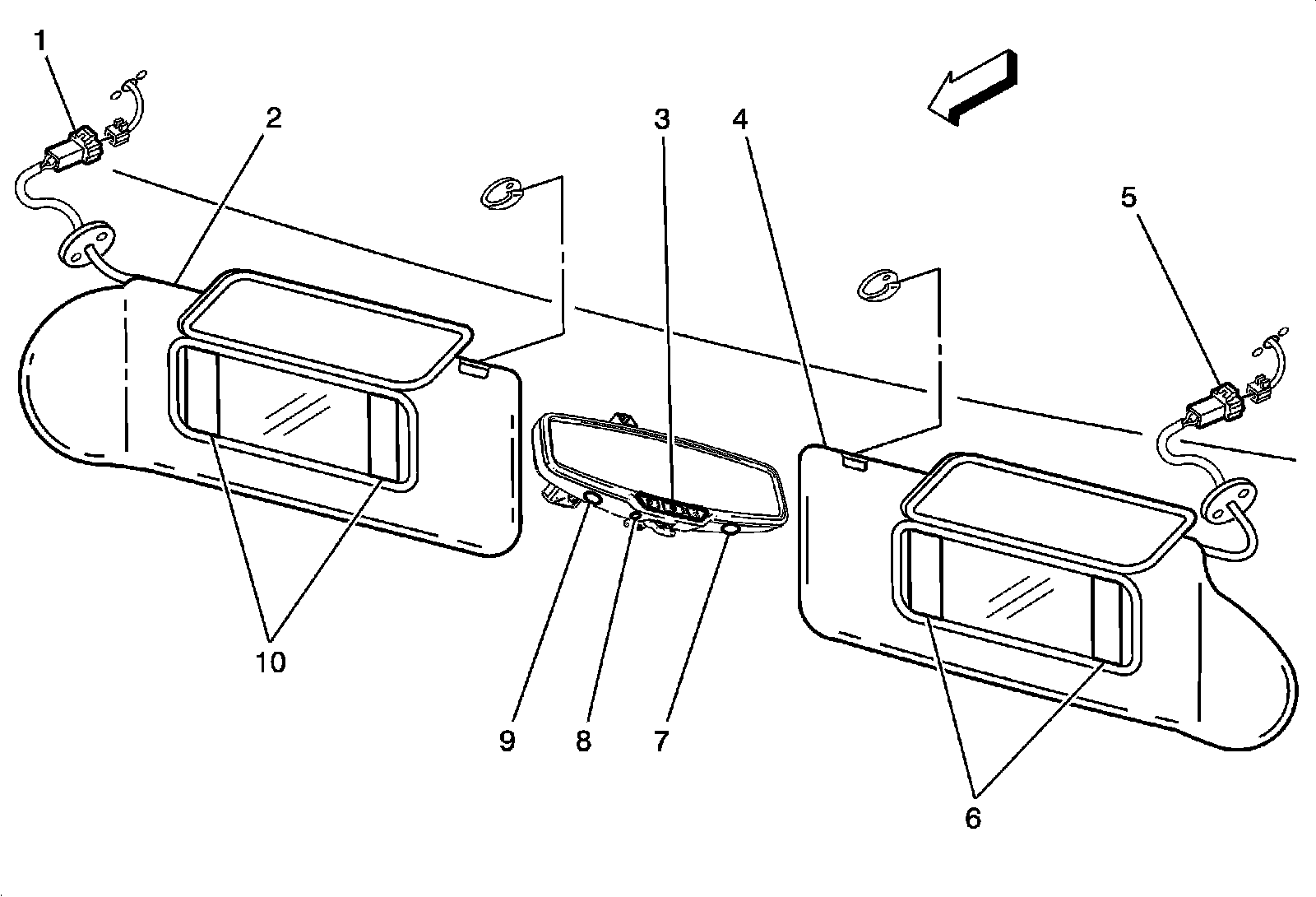

Above the Windshield Components





1 - Sunshade Connector- Left (DH6)

2 - Sunshade- Left (DH6)

3 - OnStar Button Assembly

4 - Sunshade- Right (DH6)

5 - Sunshade Connector- Right (DH6)

6 - Sunshade Lamps- Right

7 - Reading Lamp- Right

8 - Inside Rearview Mirror (ISRVM)

9 - Reading Lamp- Left

10 - Sunshade Lamps- Left
