Left Front of Engine Components

Powertrain Component Views

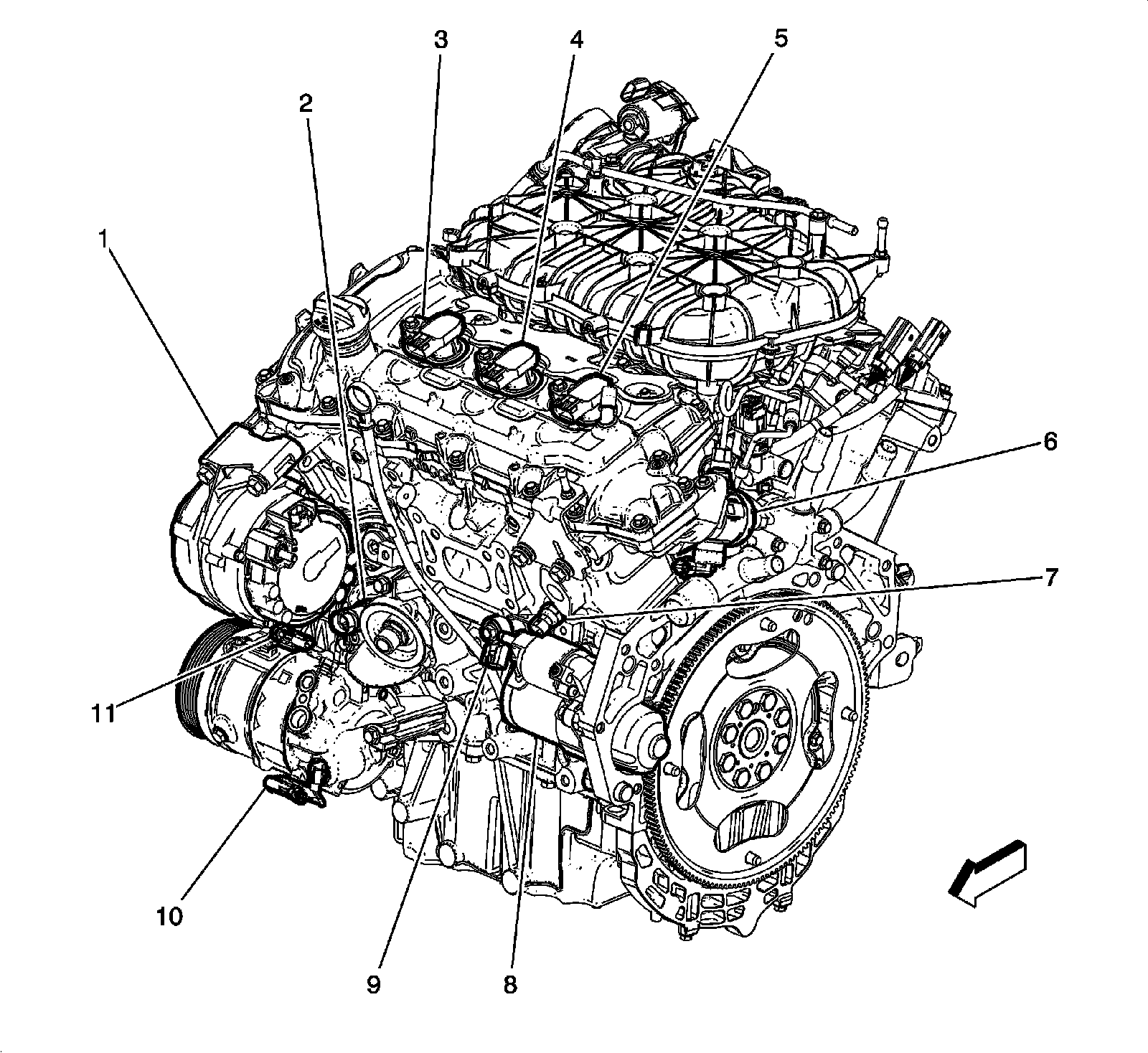

Left Front of Engine Components





1 - Generator

2 - Engine Oil Pressure (EOP) Switch

3 - Ignition Coil 2

4 - Ignition Coil 4

5 - Ignition Coil 6

6 - High Pressure Fuel Pump

7 - Engine Coolant Temperature (ECT) Sensor

8 - Starter Motor

9 - Knock Sensor (KS) 2

10 - A/C Compressor Solenoid Valve

11 - A/C Compressor Clutch
