Front Camber Adjustment

Front Camber Adjustment

Adjustment Procedure

1. Before performing any adjustment affecting the wheel alignment, refer to Wheel Alignment Measurement Wheel Alignment Measurement.

2. Loosen the strut to the knuckle bolts. Refer to Strut Assembly Removal and Installation Strut Assembly Removal and Installation.





Caution:
Refer to Fastener Caution Fastener Caution.

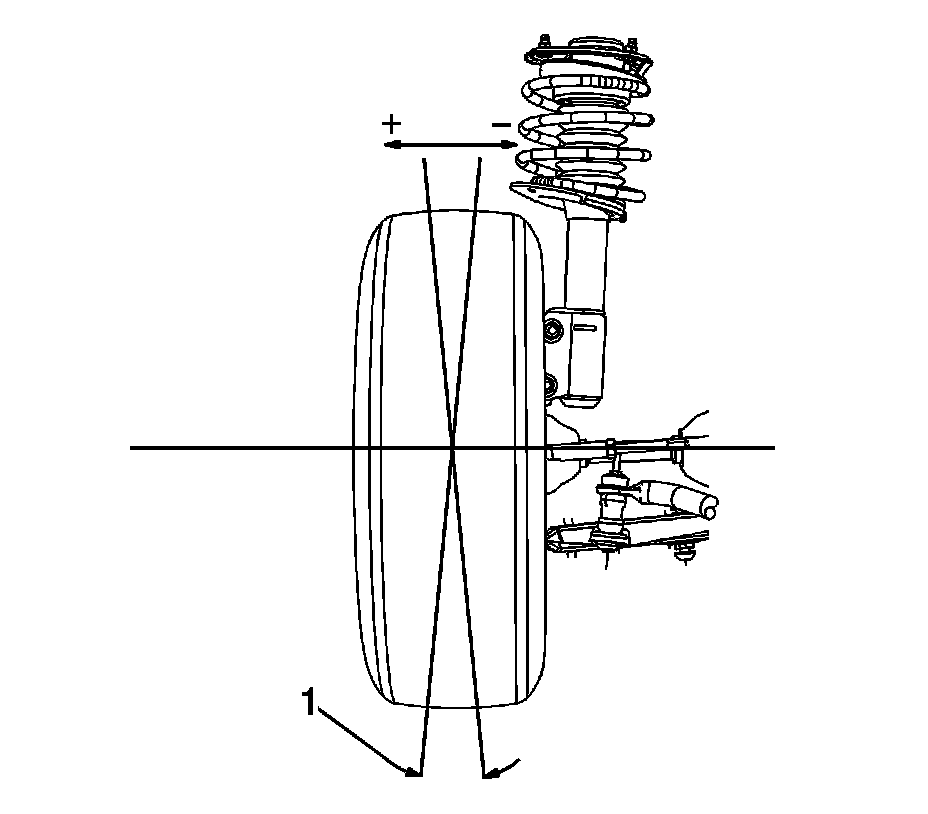

3. Adjust the front camber (1) and tighten the strut-to-knuckle nuts to 80 Nm (59 lb ft) plus 180 degrees.

Note:
After adjusting the front camber, it is necessary to adjust the front toe.

4. Adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment.
