Rear Toe Adjustment

Rear Toe Adjustment

Note: Adjust the rear toe on each rear wheel separately.

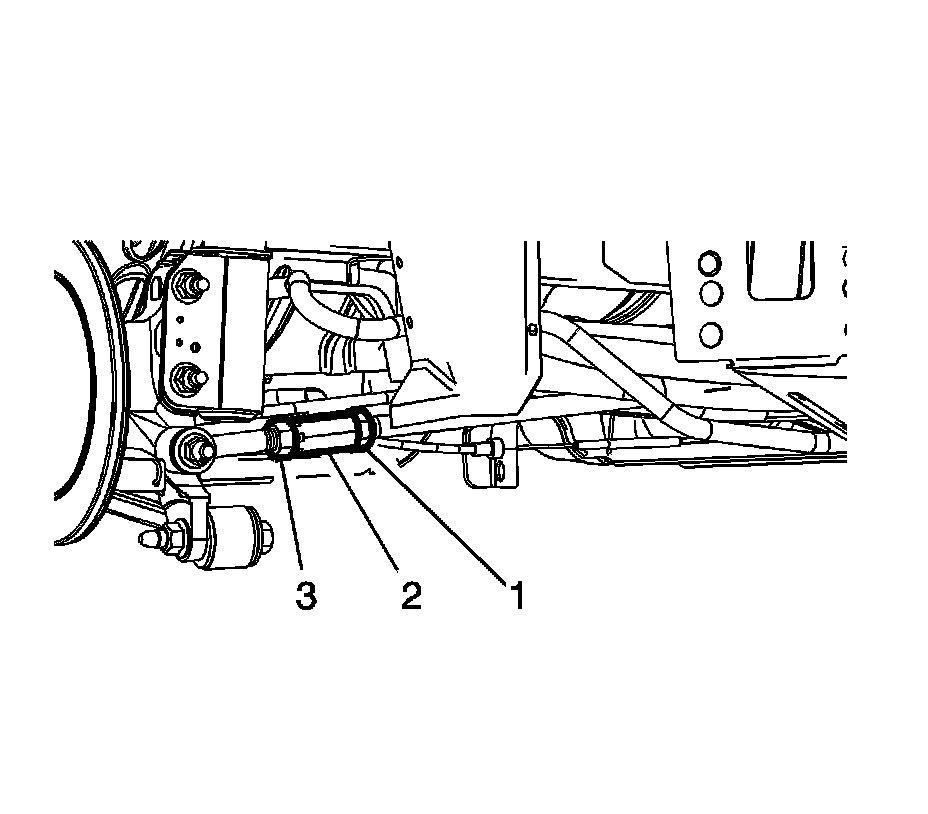

1. Loosen the rear suspension adjust link nuts (1) and (3).

2. Adjust the toe by rotating the rear suspension adjust link (2) until the proper specification as been reached. Refer to Wheel Alignment Specifications Specifications.

Caution: Refer to Fastener Caution Fastener Caution.

3. Using a backup wrench to hold the rear suspension adjust link (2), tighten the rear suspension adjust link nuts (1) and (3) to 75 Nm (55 lb ft).

4. Recheck the toe setting.

5. If necessary, readjust the toe specifications.
