Crankshaft Position Sensor: Locations

Powertrain Component Views

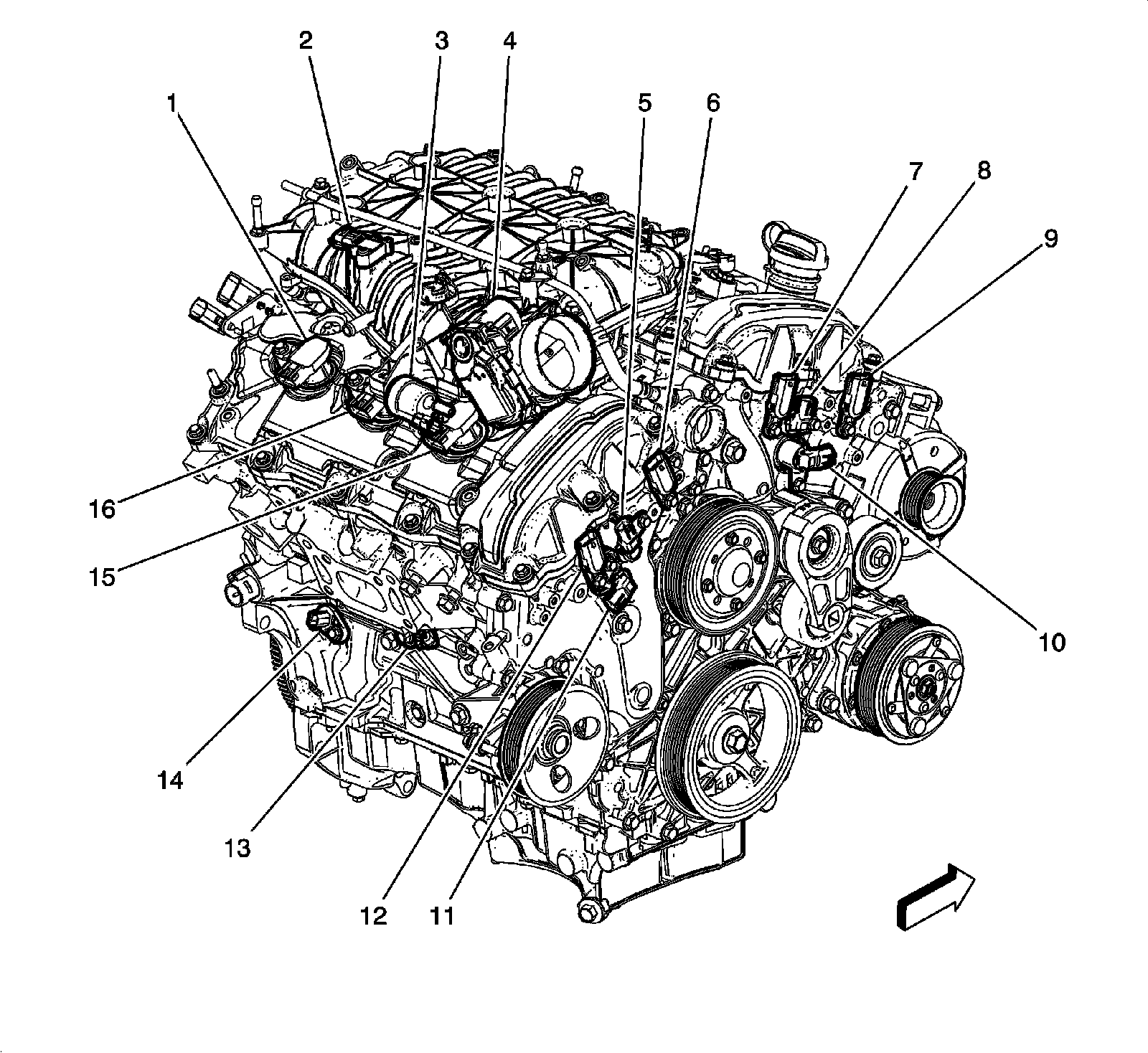

Right Rear of Engine Components





1 - Ignition Coil 5

2 - Manifold Absolute Pressure (MAP) Sensor

3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

4 - Throttle Body

5 - Camshaft Position (CMP) Actuator Solenoid Valve- Bank 1 Intake

6 - Camshaft Position (CMP) Sensor - Bank 1 Intake

7 - Camshaft Position (CMP) Sensor - Bank 2 Intake

8 - Camshaft Position (CMP) Actuator Solenoid Valve- Bank 2 Intake

9 - Camshaft Position (CMP) Sensor - Bank 2 Exhaust

10 - Camshaft Position (CMP) Actuator Solenoid Valve- Bank 2 Exhaust

11 - Camshaft Position (CMP) Actuator Solenoid Valve- Bank 1 Exhaust

12 - Camshaft Position Sensor (CMP) - Bank 1 Exhaust

13 - Knock Sensor (KS) 1

14 - Crankshaft Position (CKP) Sensor

15 - Ignition Coil 1

16 - Ignition Coil 3
