Data Link Connector: Service and Repair

Data Link Connector Replacement

Removal Procedure

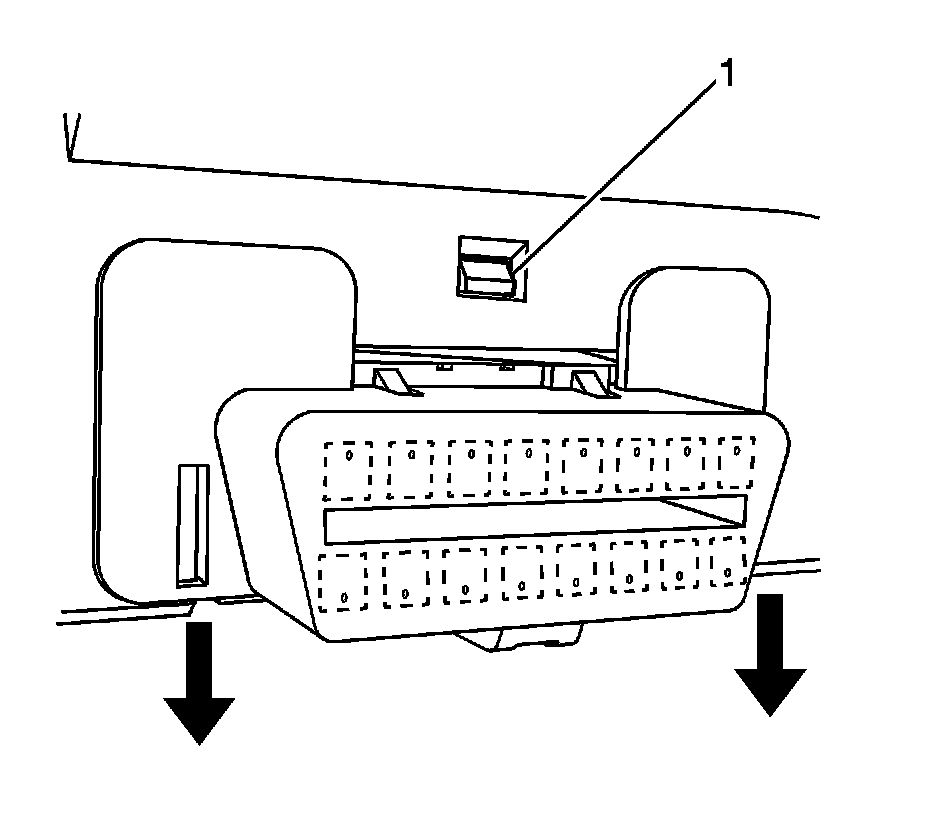

1. Disengage the data link connector (DLC) tab (1).

2. Remove the DLC from the instrument panel (I/P) trim pad.

Installation Procedure





1. Align the DLC to the I/P trim pad.

2. Slide the DLC upward in order to engage the tab (1).
