Body Control Module (BCM) X1

Harness Routing Views

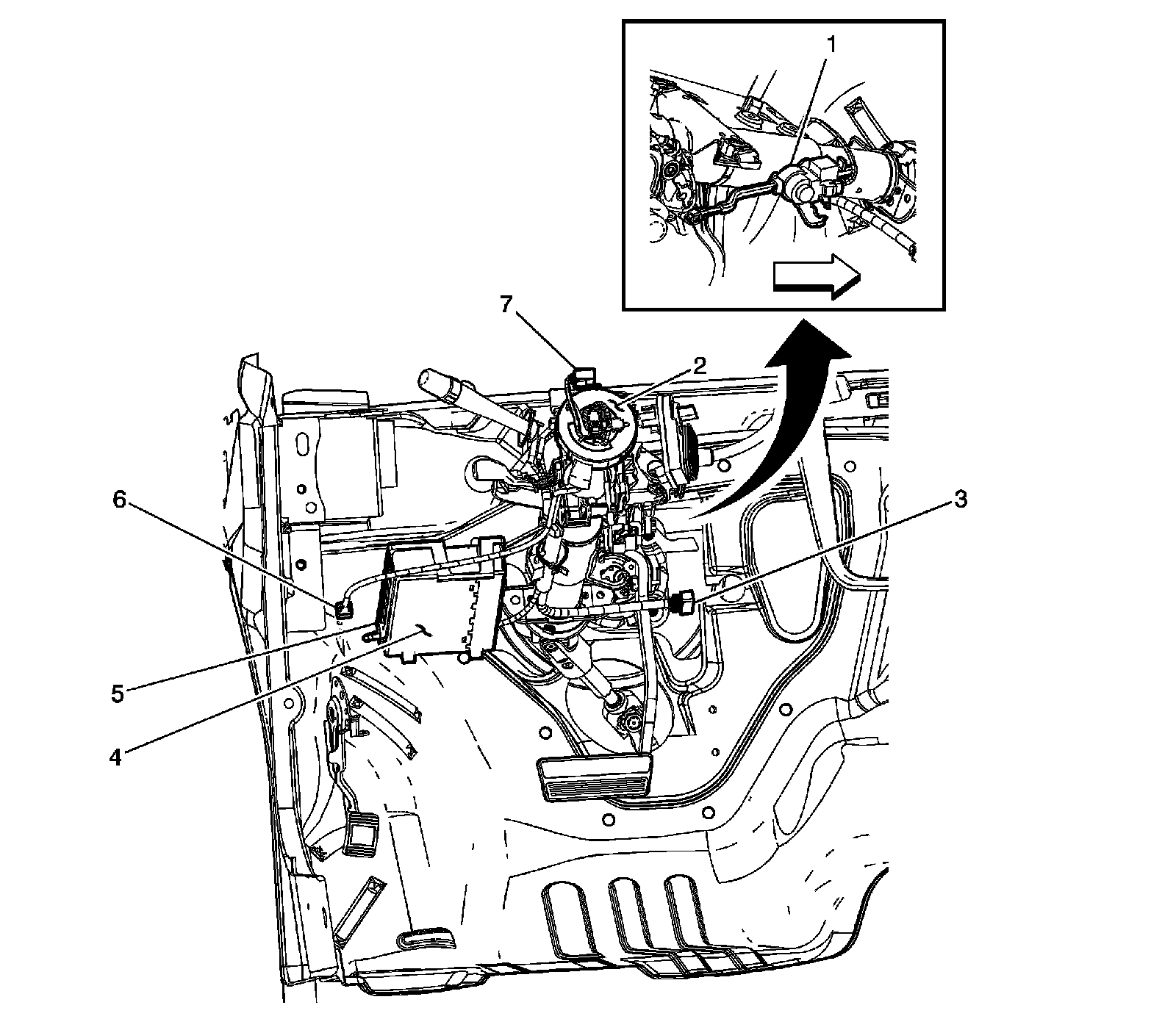

Instrument Panel Harness Routing- Lower Left





1 - Ignition Lock Cylinder Control Actuator

2 - Inflatable Restraint Steering Wheel Module Coil

3 - X201

4 - Body Control Module (BCM)

5 - Body Control Module (BCM) X1

6 - X250

7 - X277
