Multimedia Player Interface Module Replacement

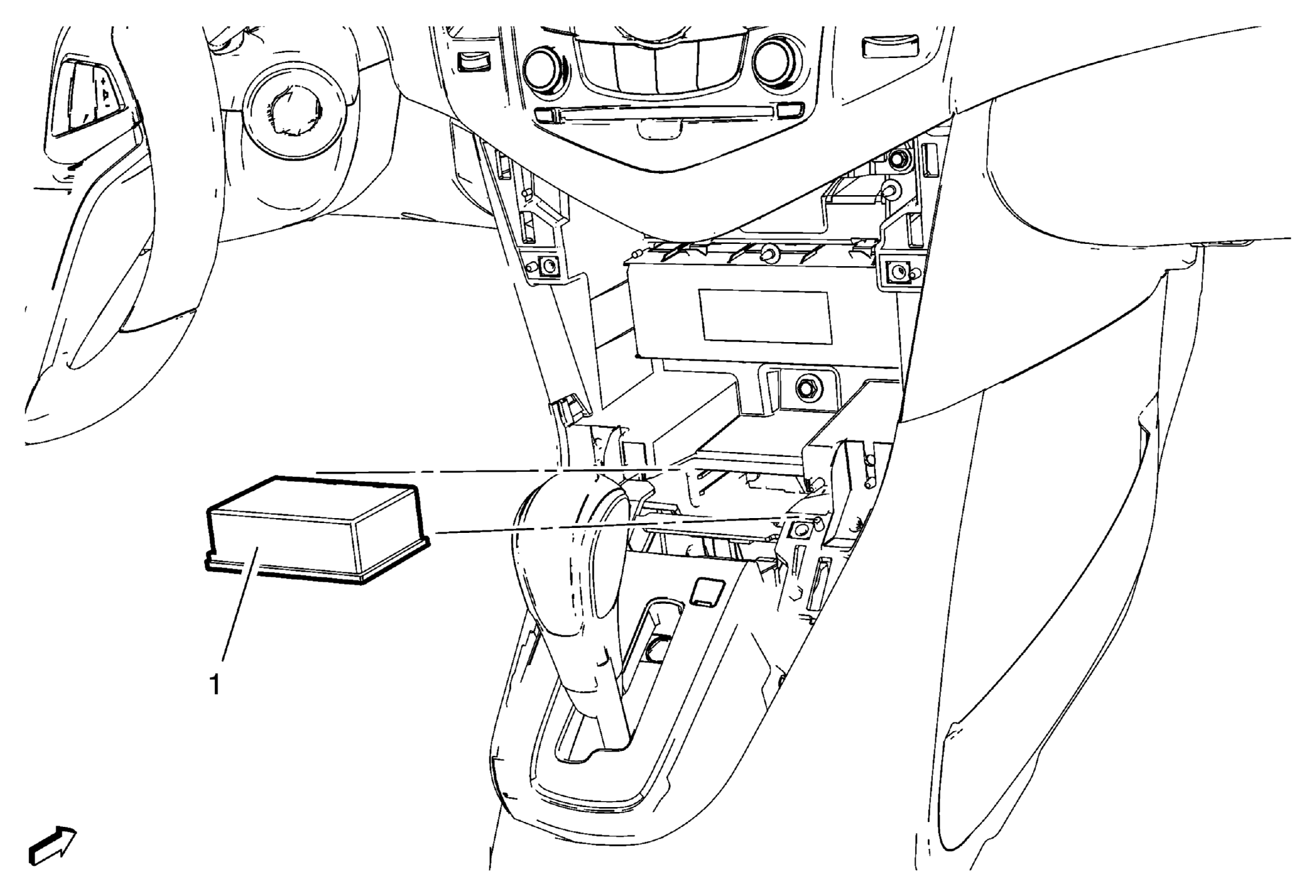

Fig 1: Multimedia Player Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the heater and air conditioning remote control. Refer to Heater and Air Conditioning Remote Control Replacement .
1	Multimedia Player Interface Module Procedure Disconnect the electrical connectors. After repairs, refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedures
Remove the heater and air conditioning remote control. Refer to Heater and Air Conditioning Remote Control Replacement .

Multimedia Player Interface Module

Procedure

Disconnect the electrical connectors.
After repairs, refer to Control Module References for programming and set up procedures.
