Ignition Lock Key Transmitter Antenna Replacement

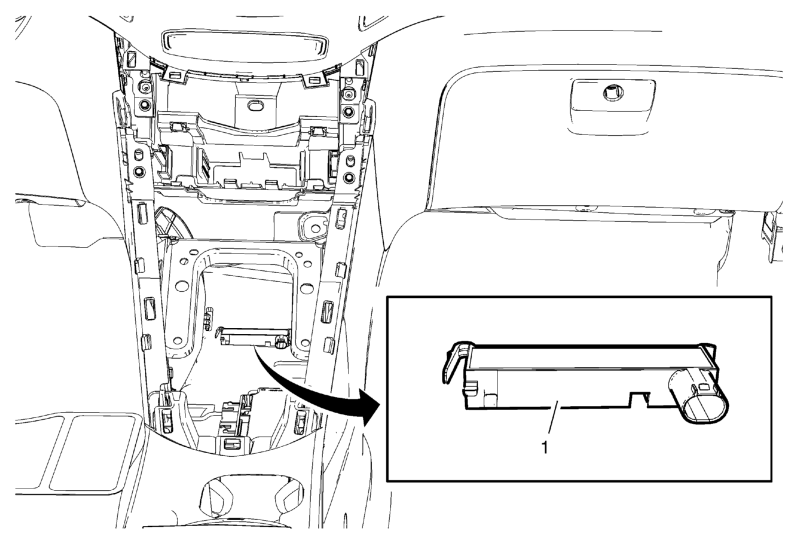

Fig 1: Ignition Lock Key Transmitter Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Remove the ignition lock key transmitter antenna from bracket.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement .

Ignition Lock Key Transmitter Antenna

Procedure
