Orlando LS, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Wiring Schematics
>>
Remote Function Wiring Schematics
>>
Keyless Entry (without ATH)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry (without ATH)

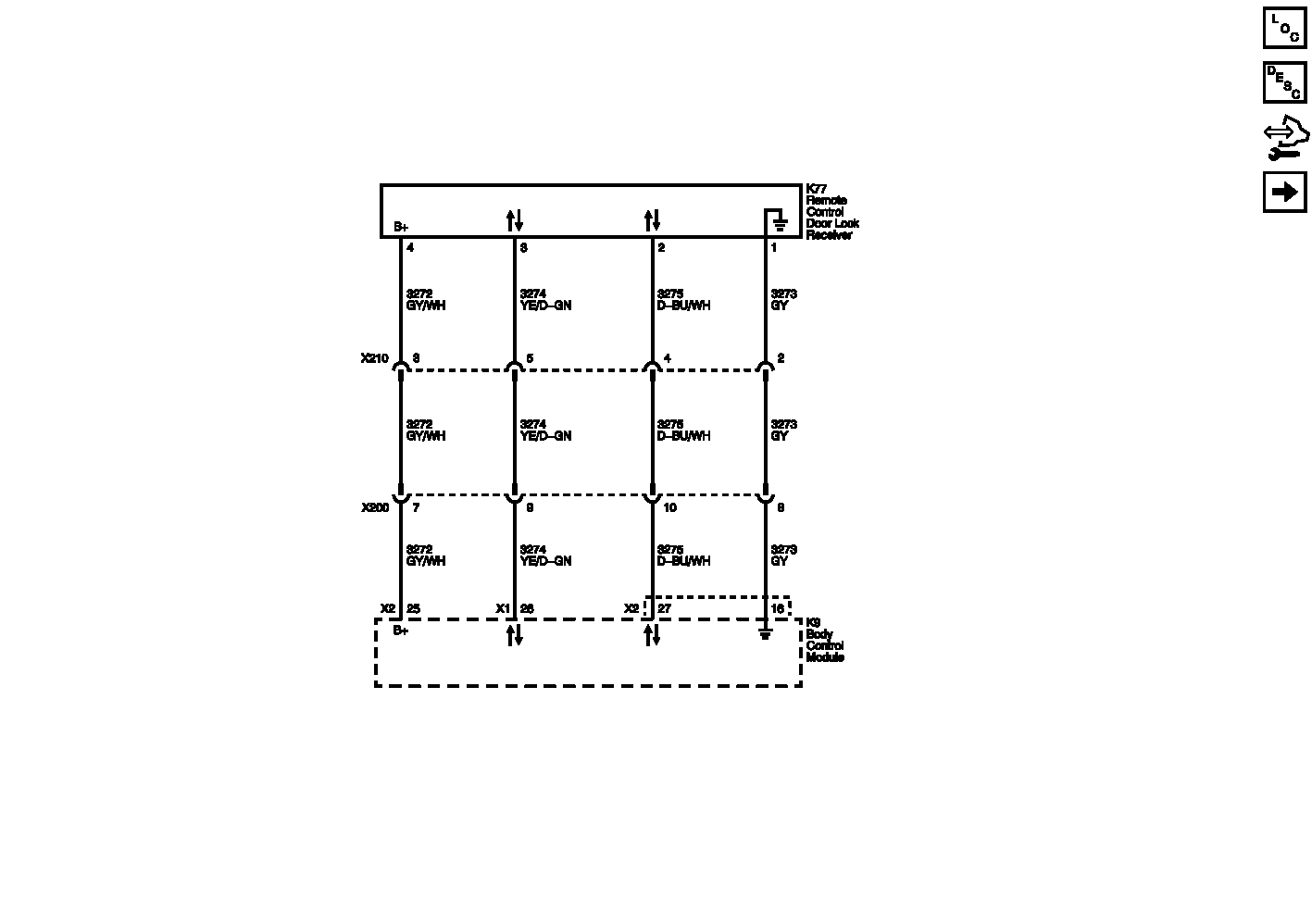

Fig 1: Keyless Entry Wiring Schematic (without ATH)
Courtesy of GENERAL MOTORS COMPANY
