Passive Entry (ATH)

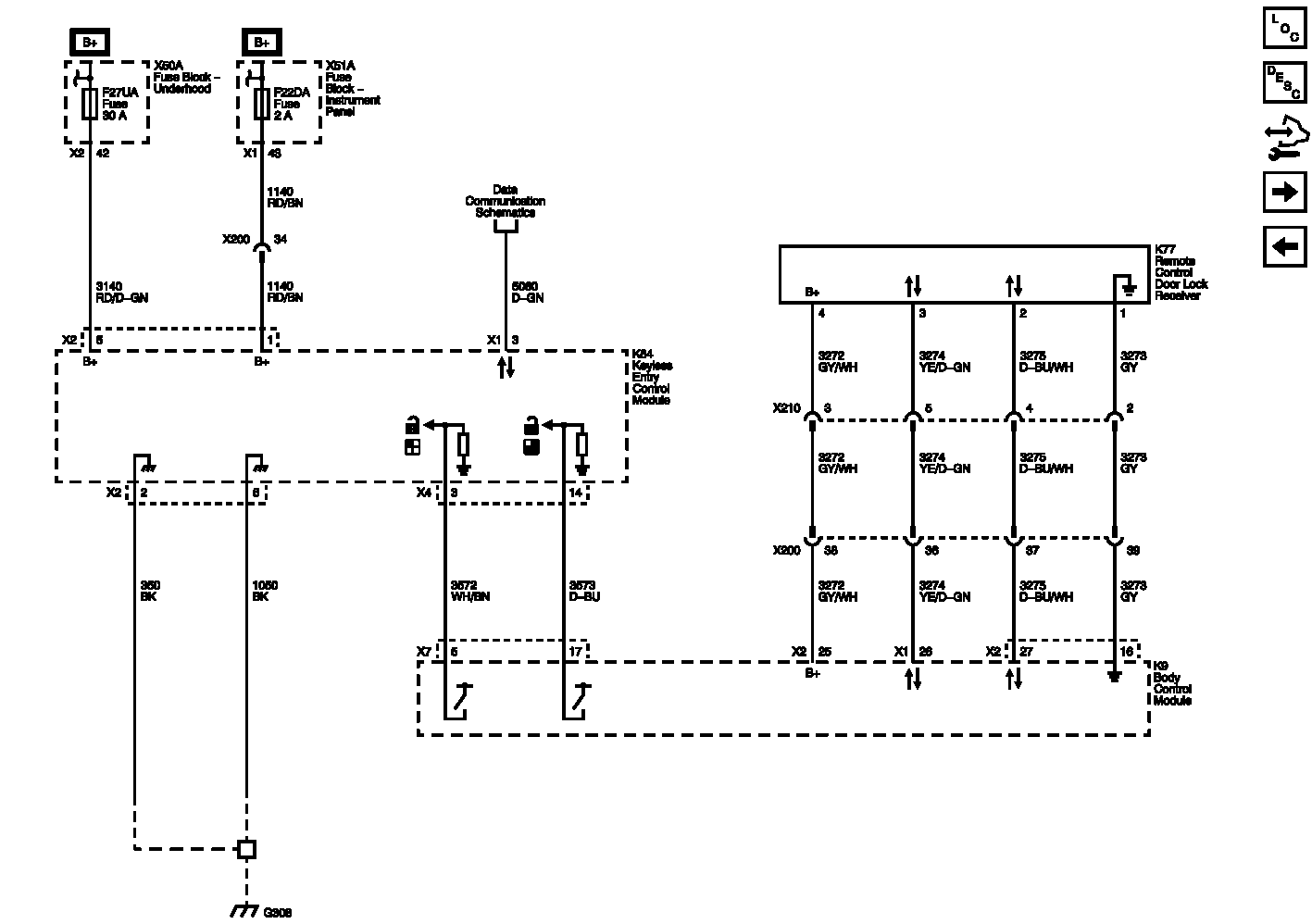

Fig 1: Passive Entry Wiring Schematic (ATH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
