Theft Deterrent Module Replacement

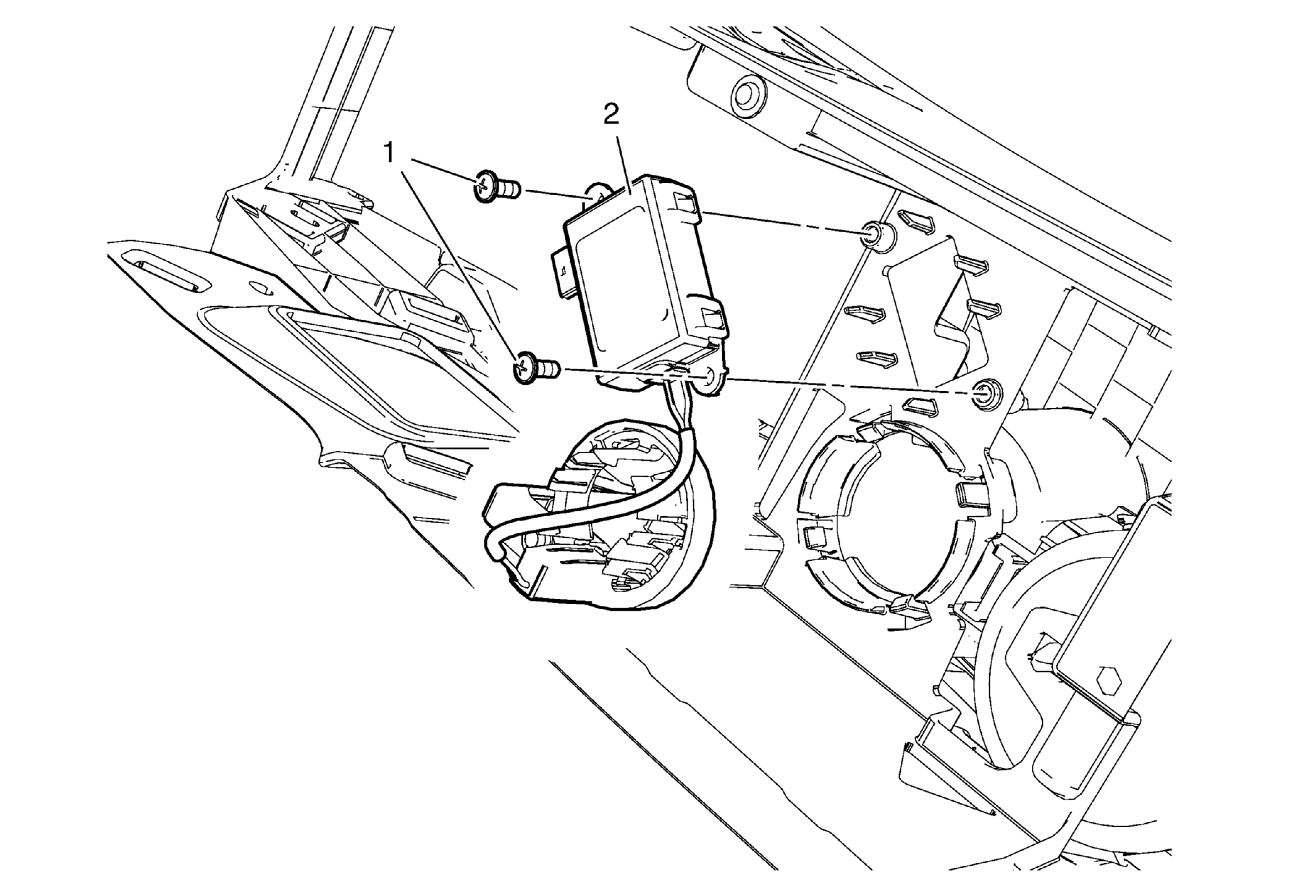

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor rear console. Refer to Front Floor Rear Console Replacement .
1	Theft Deterrent Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Theft Deterrent Module Procedure Disconnect the electrical connector. After repairs, refer to Control Module References .

Callout

Component Name

Preliminary Procedures
Remove the front floor rear console. Refer to Front Floor Rear Console Replacement .

Theft Deterrent Module Fastener (Qty: 2)

CAUTION:

Theft Deterrent Module

Procedure
