Front Seat Heater Control Module Replacement

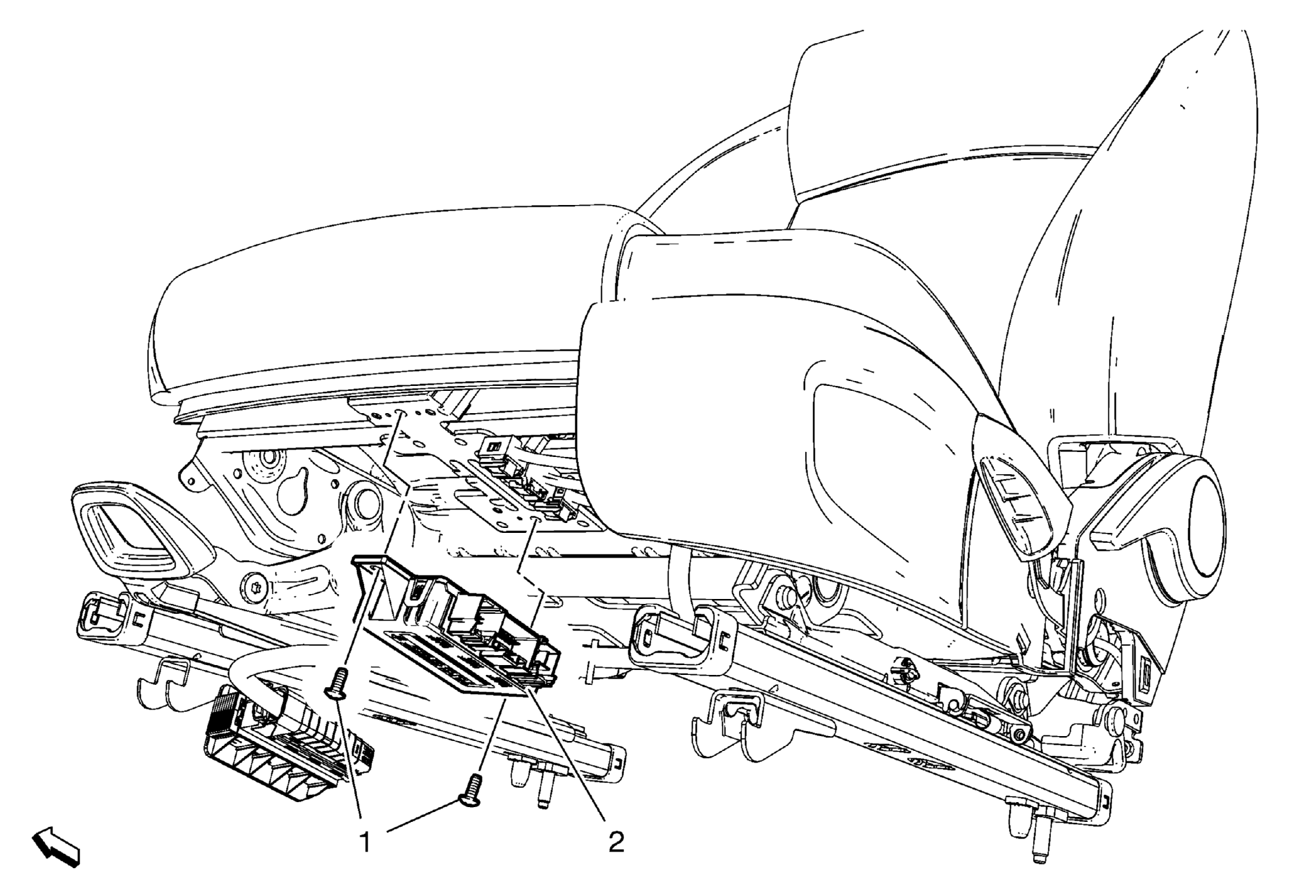

Fig 1: Front Seat Heater Control Module
GM2027800Courtesy of GENERAL MOTORS COMPANY
Front Seat Heater Control Module Replacement

Callout Component Name
Preliminary Procedures
Remove the front seat. Refer to Driver or Passenger Seat Replacement .
1 Front Seat Heater Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front Seat Heater Control Module
Procedure
Disconnect the electrical connector.
