Sunroof Module Assembly Replacement

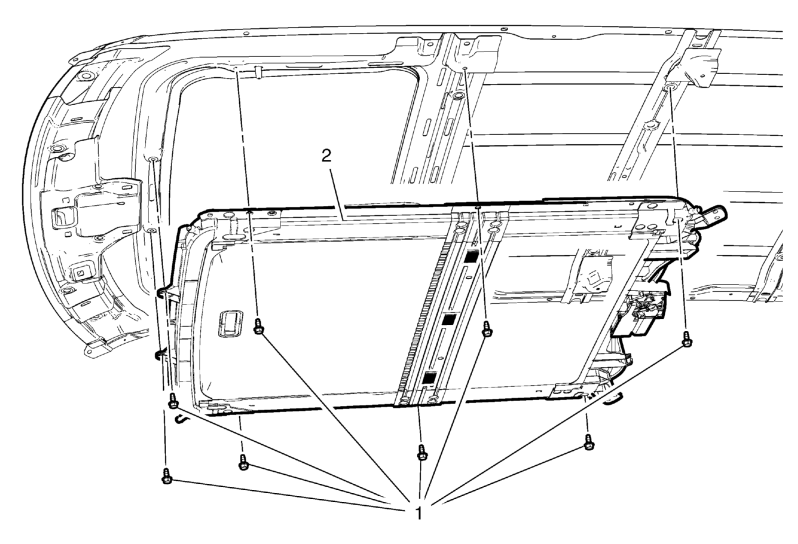

Fig 1: Sunroof Module Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (without Sunroof) , Headlining Trim Panel Replacement (with Sunroof)
1	Sunroof Module Assembly Fastener (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Sunroof Module Assembly Procedure Disconnect the front and rear sunroof drain hoses. Disconnect the electrical connector. With an assistant, lower and remove the sunroof module assembly.

Callout

Component Name

Preliminary Procedures
It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (without Sunroof) , Headlining Trim Panel Replacement (with Sunroof)

Sunroof Module Assembly Fastener (Qty: 8)

CAUTION:

Tighten
9 N.m (80 lb in)

Sunroof Module Assembly

Procedure
