Interior HVAC Components (RHD)

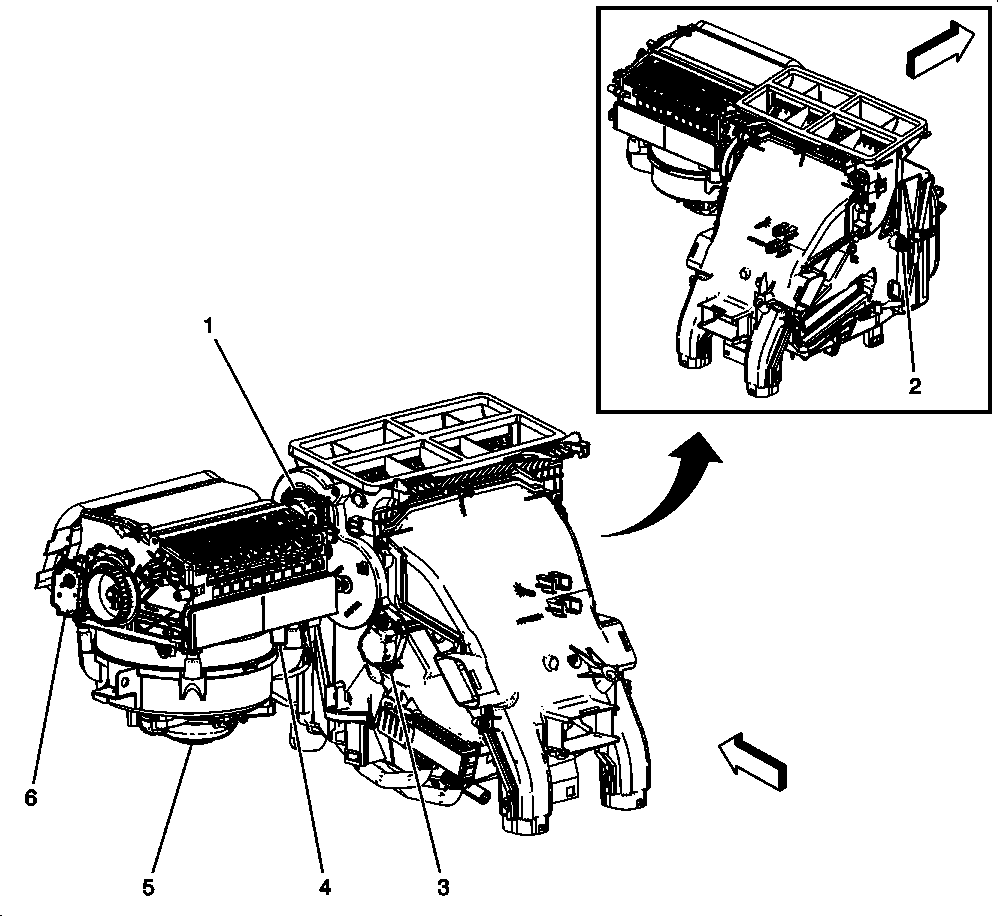

Fig 1: Interior HVAC Components (RHD)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
M37 Mode Door Actuator
2
B7A Inside Air Temperature Sensor
3
M6 Air Temperature Door Actuator
4
K8 Blower Motor Control Module
5
M8 Blower Motor
6
M46 Air Recirculation Door Actuator
