Fuel Pump Flow Control Module Replacement

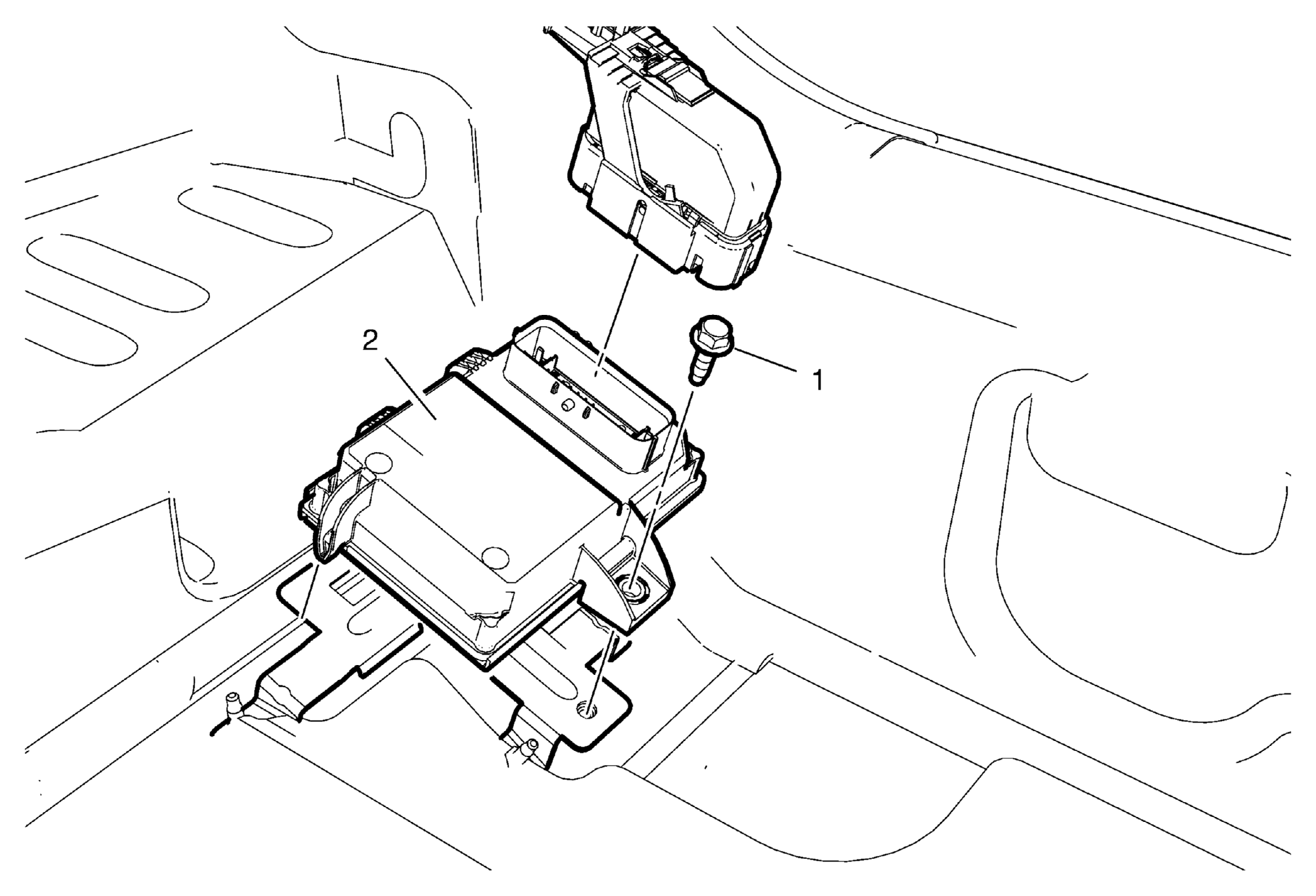

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement .
1	Fuel Pump Flow Control Module Bolt CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures
Remove the rear compartment floor stowage compartment. Refer to Rear Compartment Floor Stowage Compartment Replacement .

Fuel Pump Flow Control Module Bolt

CAUTION:

Tighten
8 N.m (71 lb in)

Fuel Pump Flow Control Module

Procedure
