5HB

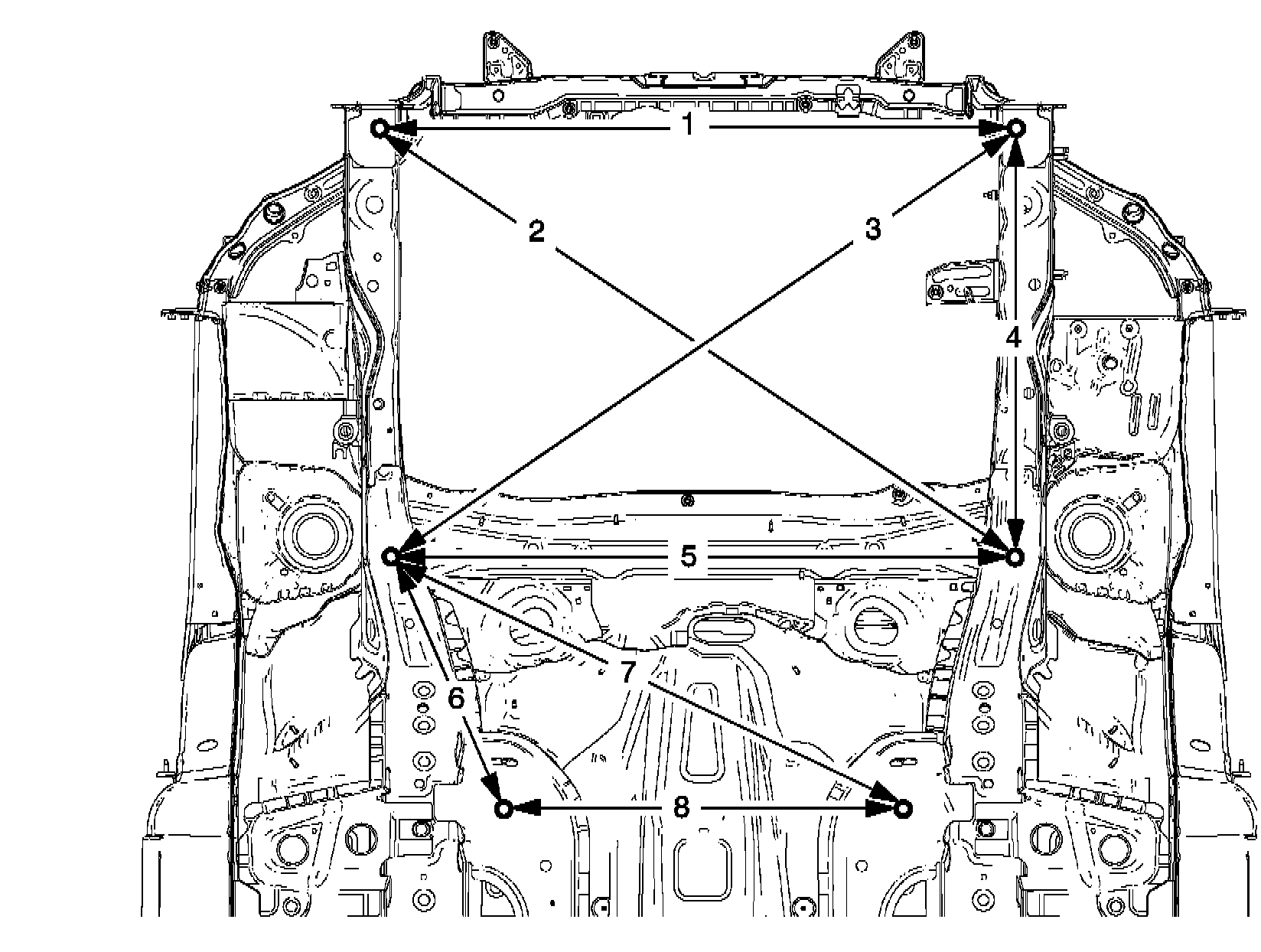

Front End Lower

�E:





(1)928 mm

(2)1122 mm

(3)1110 mm

(4)633 mm

(5)910 mm

(6)440 mm

(7)852 mm

(8)584 mm

###
