Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
System Specifications
>>
Side
>>
5HB
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

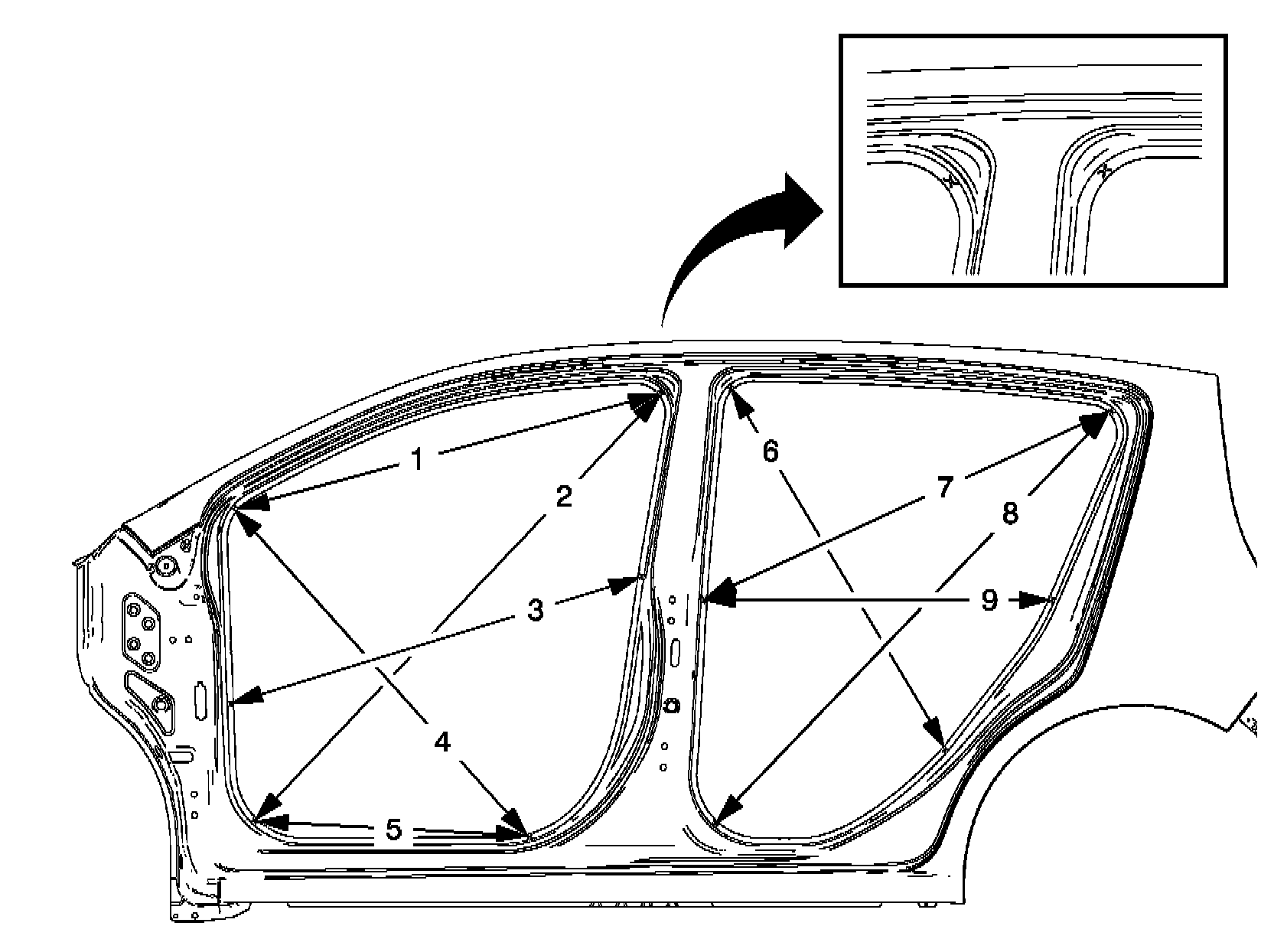

5HB
Side
�+E:
(1)985 mm
(2)1319 mm
(3)955 mm
(4)981 mm
(5)611 mm
(6)946 mm
(7)1005 mm
(8)1277 mm
(9)772 mm
###
