Structure Identification (5HB)



Structure Identification (5HB)

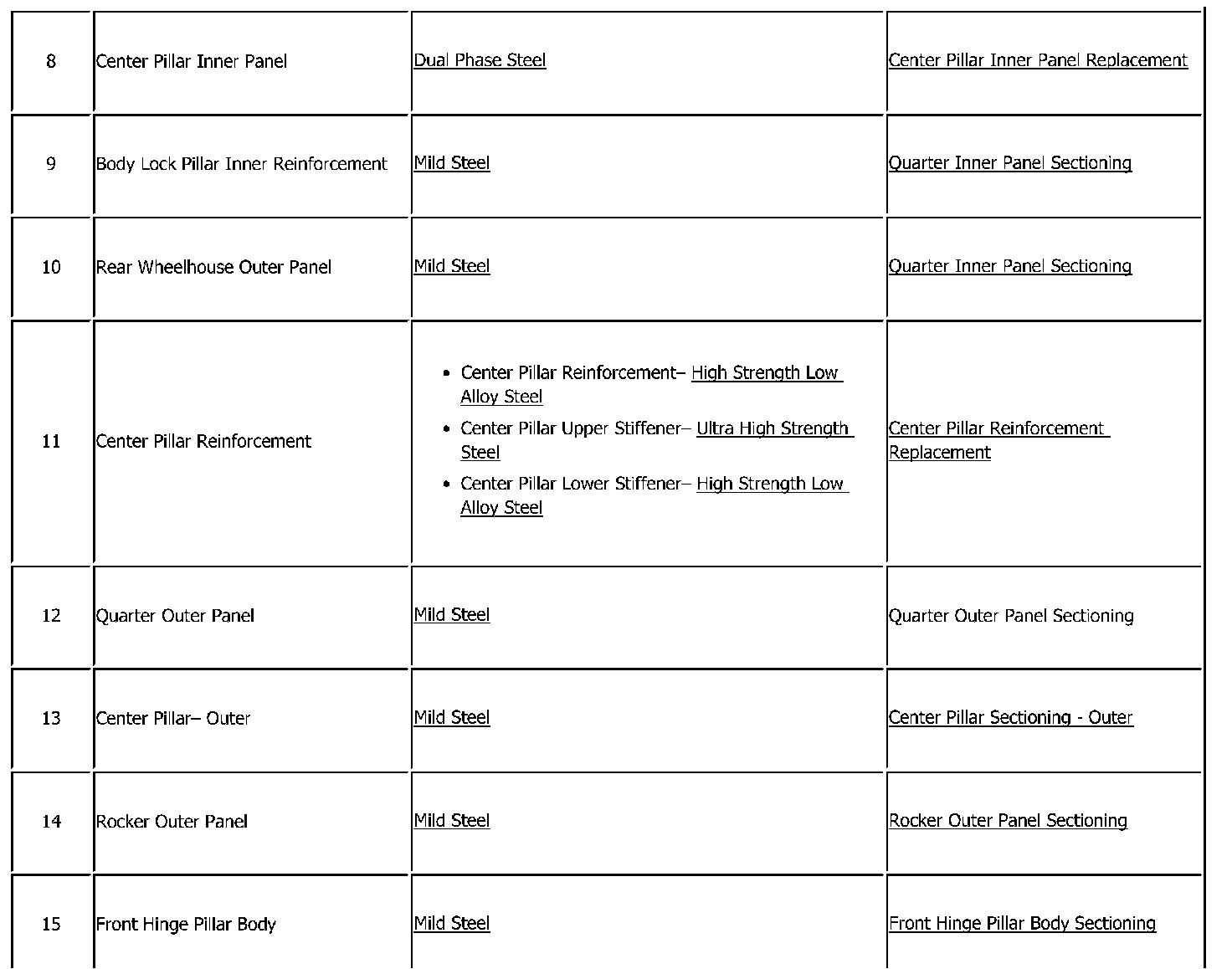

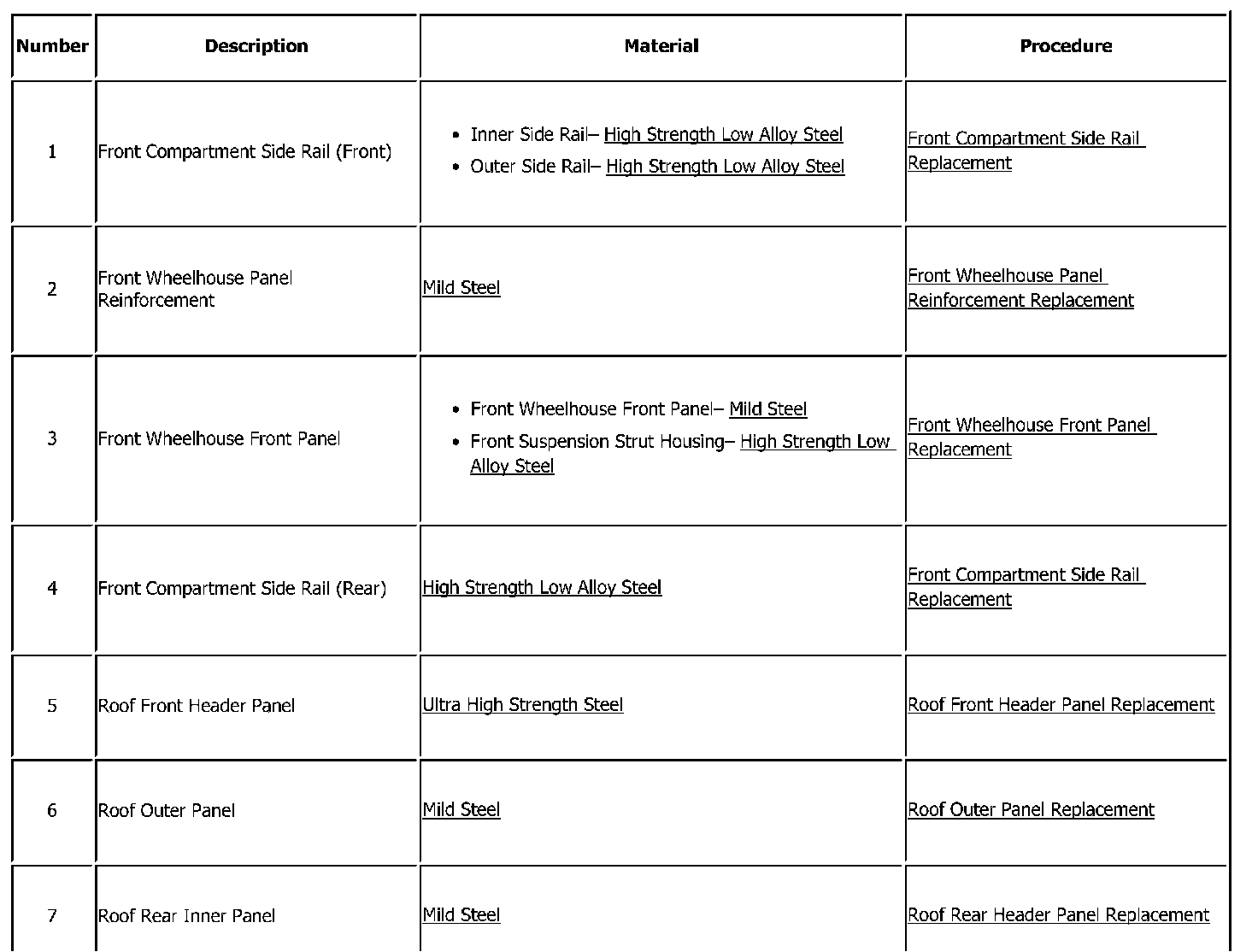

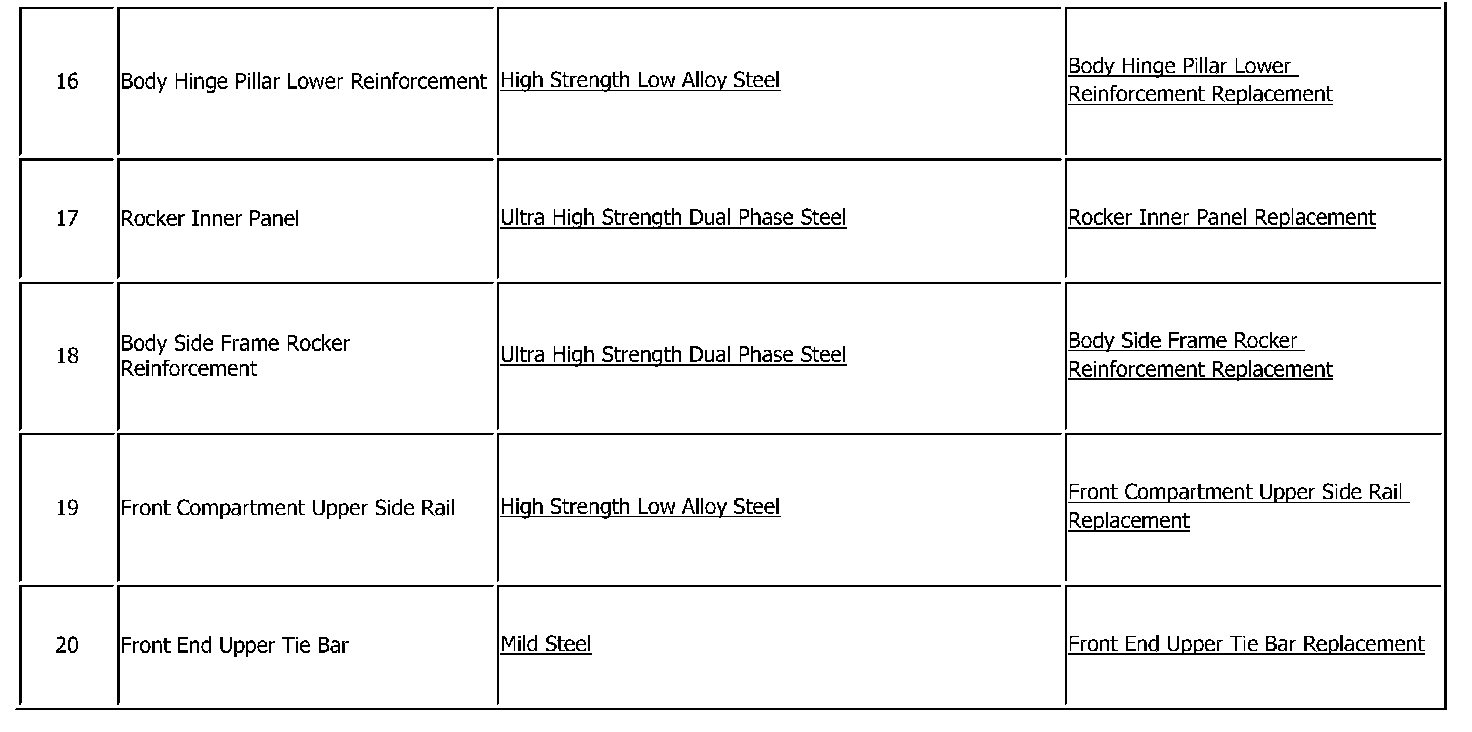

Table 1: View Front

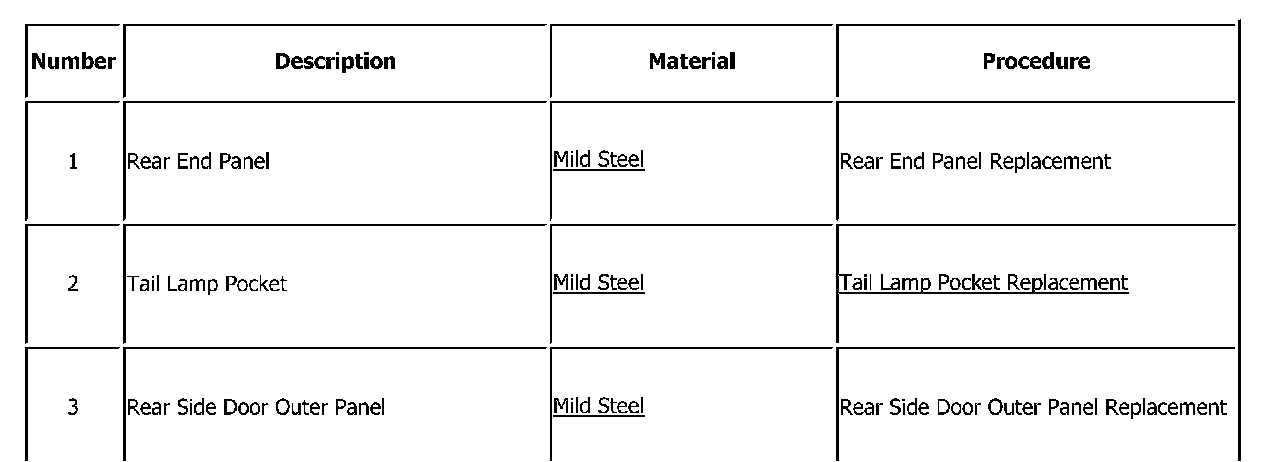

Table 2: View Rear

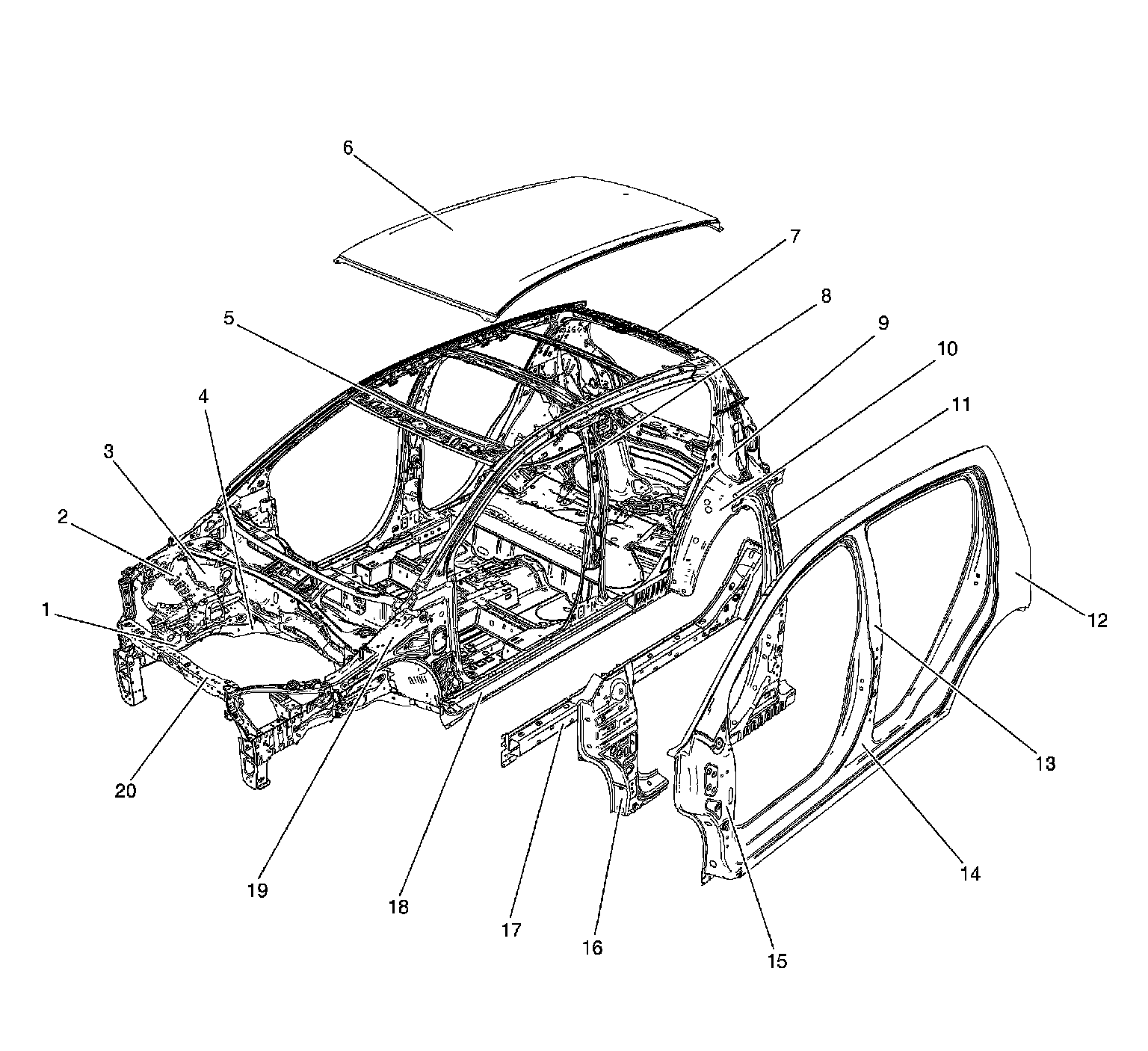

Front View






Front View

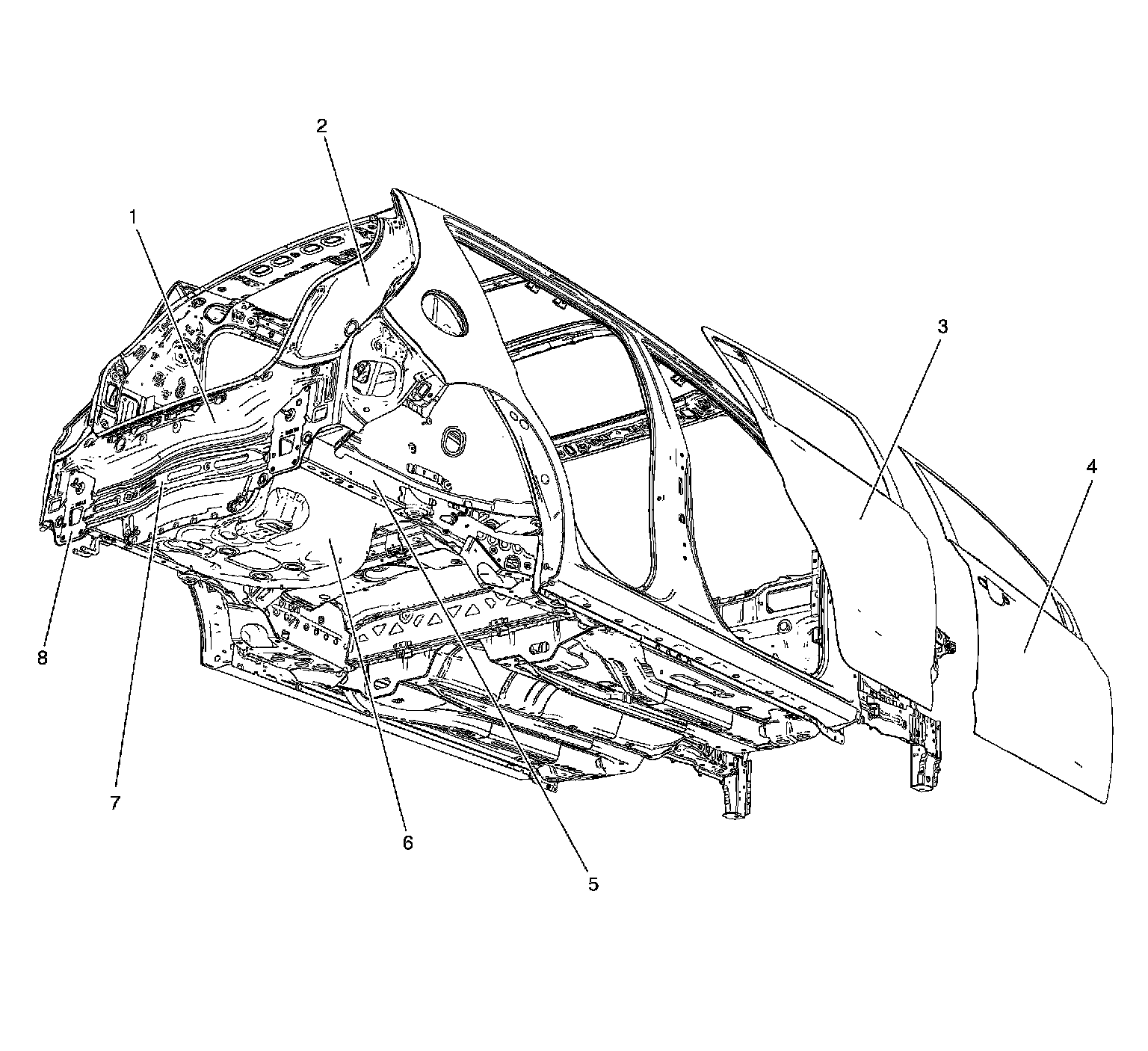

Rear View
