Home
>>
Chevrolet
>>
2012
>>
Sonic L4-1.8L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Specifications
>>
Mechanical Specifications
>>
Side
>>
4NB
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

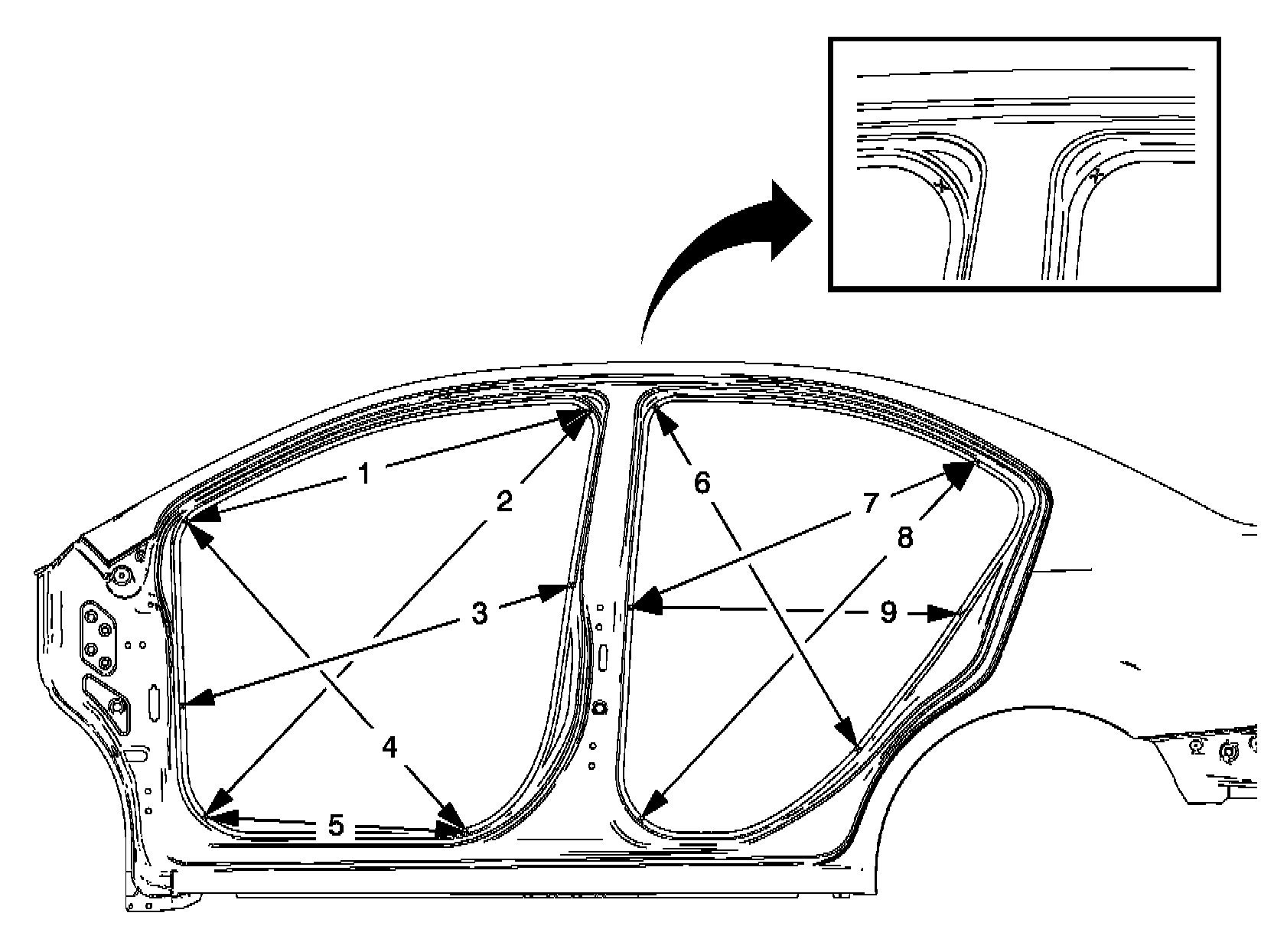

4NB
Side
^TE:
(1)985 mm
(2)1319 mm
(3)955 mm
(4)981 mm
(5)611 mm
(6)946 mm
(7)886 mm
(8)1155 mm
(9)776 mm
###
