Variable Induction Control Valve

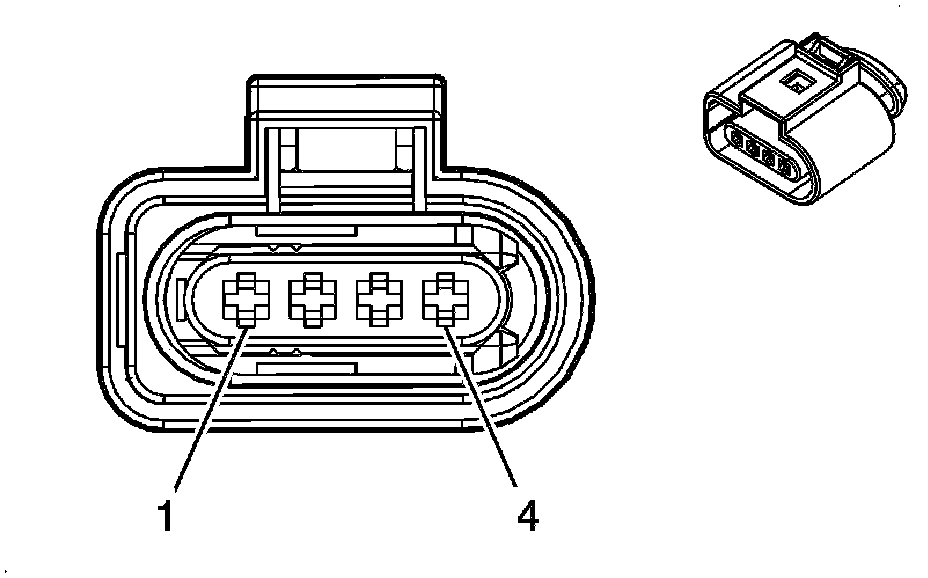

Component Connector End Views

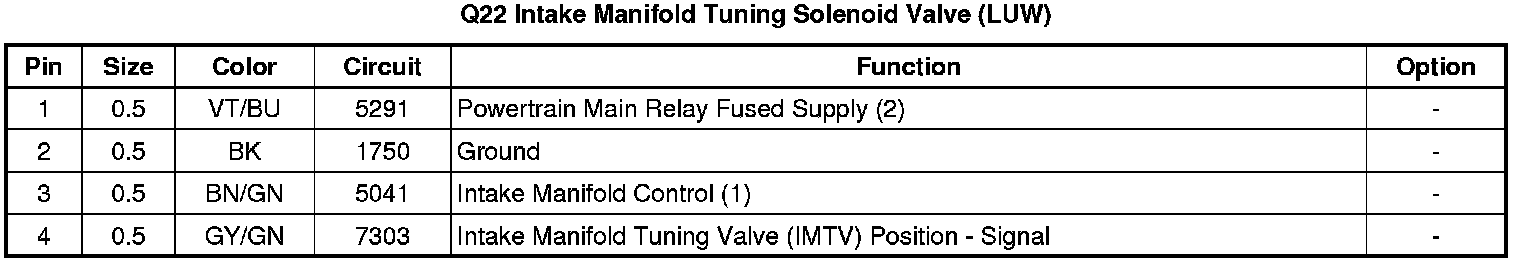

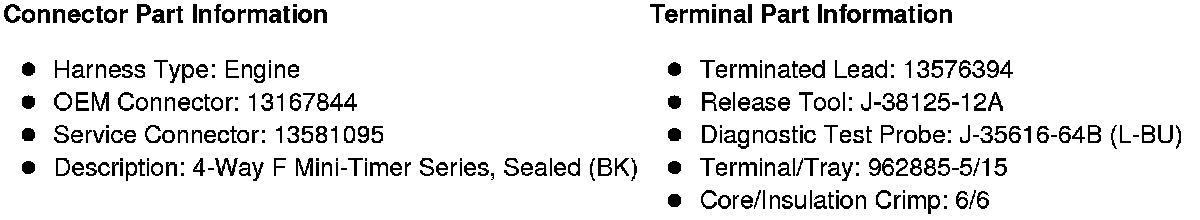

Q22 Intake Manifold Tuning Solenoid Valve (LUW)
