Air Flow Meter/Sensor: Diagrams

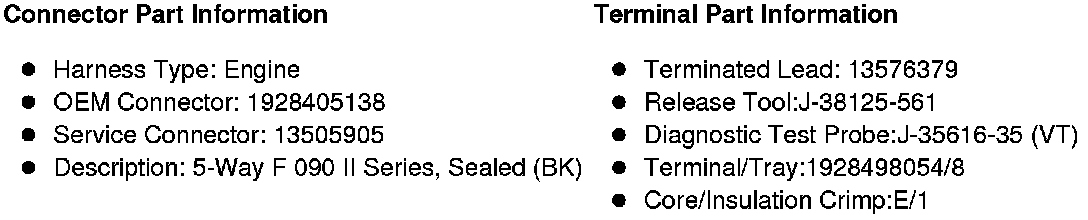

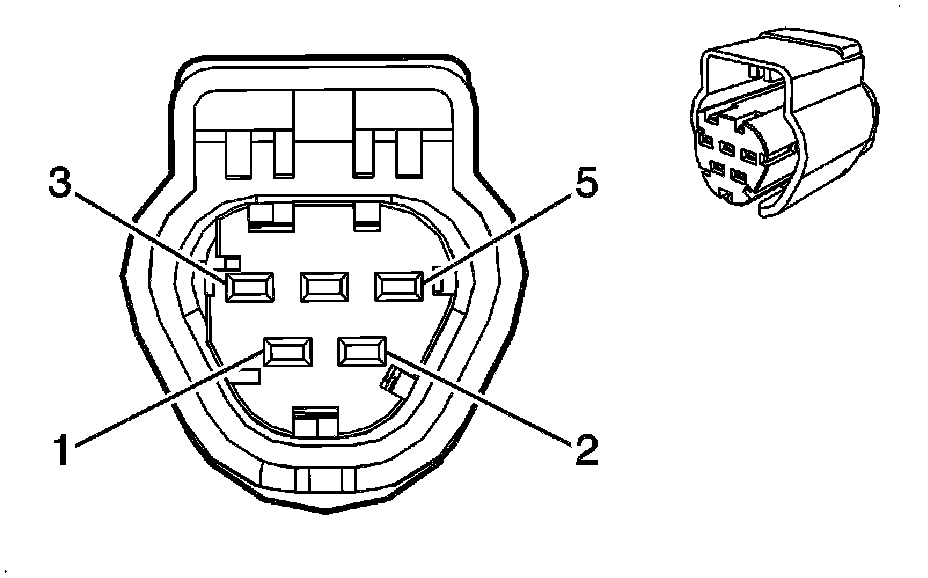

Component Connector End Views

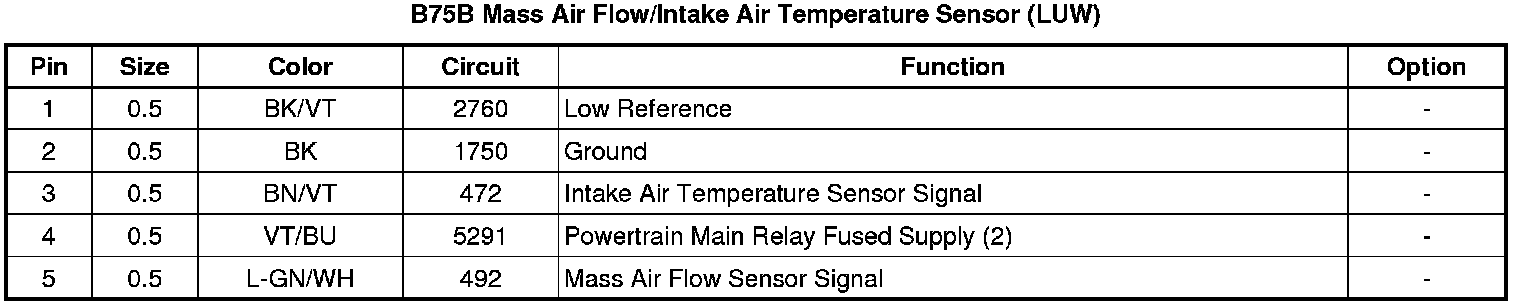

B75B Mass Air Flow/Intake Air Temperature Sensor (LUW)
