Body Control Module: Locations

Instrument Panel/Center Console Component Views

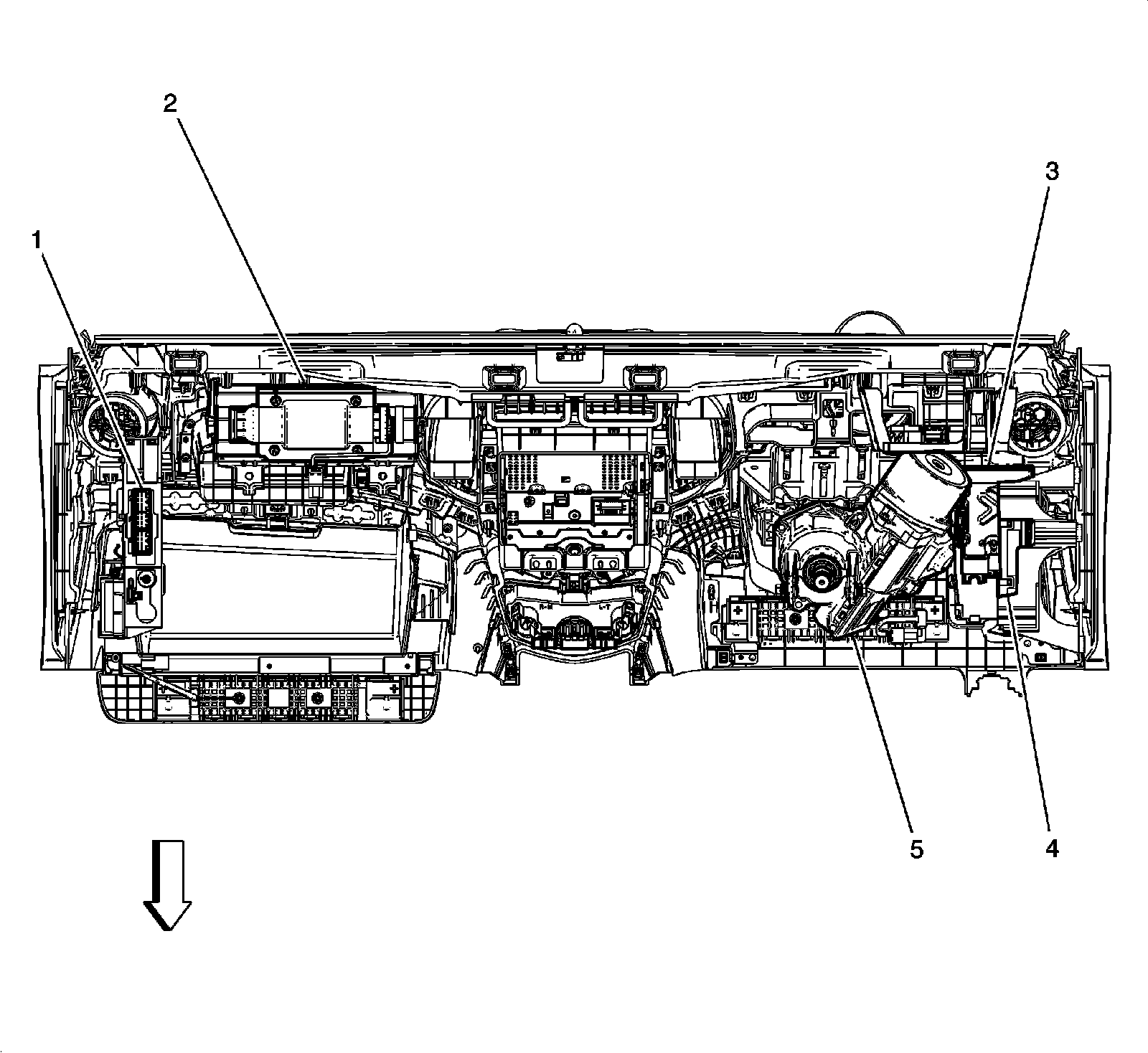

Rear of Instrument Panel Components





1 - K73 Telematics Communication Interface Control Module (UE1)

2 - F101 Passenger Instrument Panel Air Bag

3 - X51A Fuse Block - Instrument Panel

4 - K9 Body Control Module

5 - K43 Power Steering Control Module
