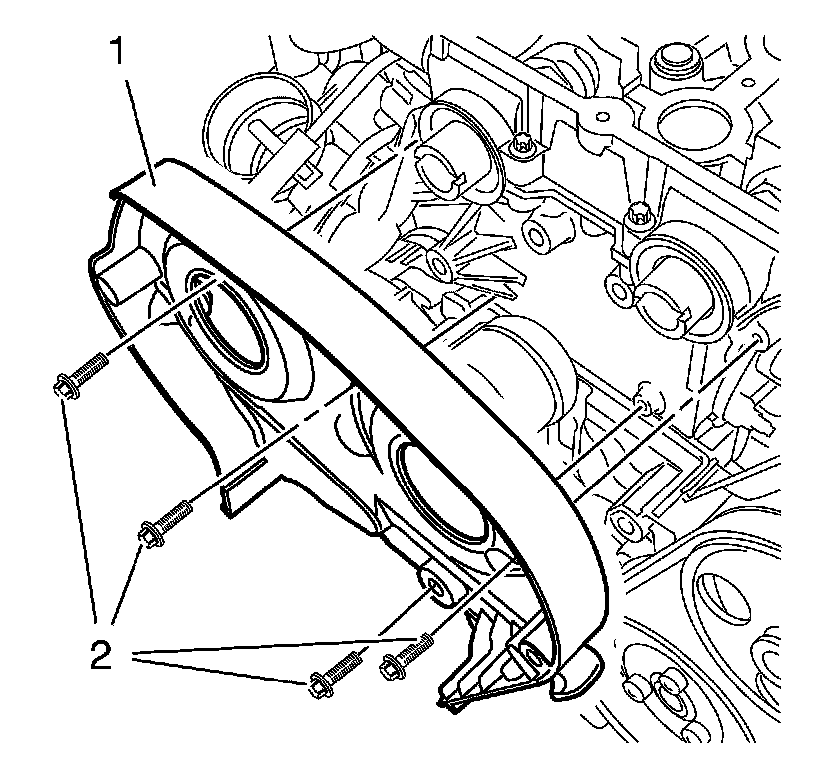

Timing Belt Rear Cover

Timing Belt Rear Cover







Caution: Refer to Fastener Caution Fastener Caution.

Note: Service may offer bolts that are not microencapsulated. If this is the case apply thread lock agent to the bolt. If fastener is microencapsulated, install a NEW 4 timing belt rear cover bolts. DO NOT reuse the old bolt.

4 NEW timing belt rear cover bolts 6 Nm (53 lb in)
