Accelerator Pedal Position Sensor Replacement

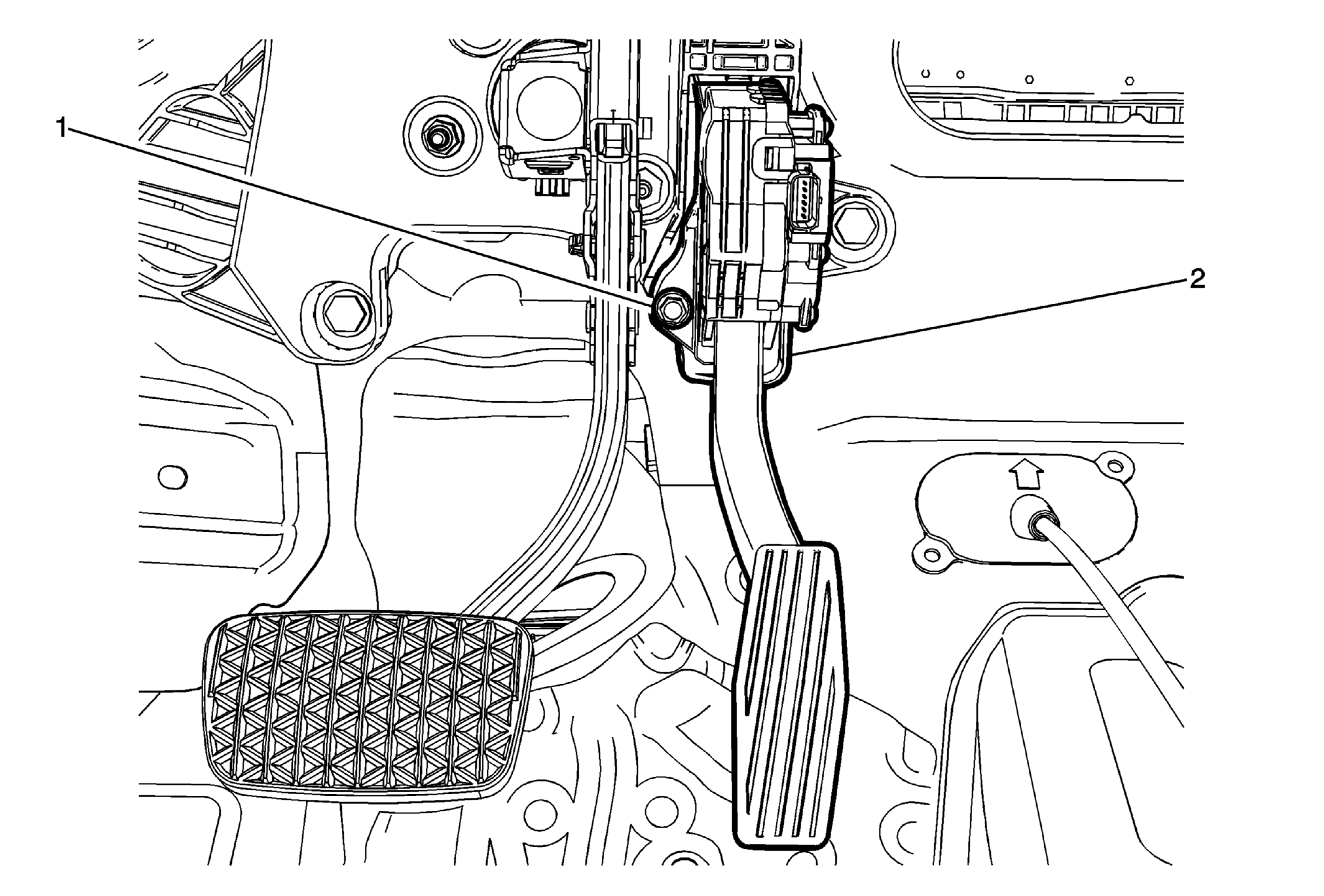

Fig 1: Accelerator Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Accelerator Pedal Position Sensor Procedure Disconnect the electrical wiring harness connector from accelerator pedal position Sensor. After replacement of the accelerator pedal position sensor, use a scan tool to speed up the learn process. Refer to Engine Control Module Programming and Setup (LUW) .

Callout

Component Name

Preliminary Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Accelerator Pedal Position Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Accelerator Pedal Position Sensor

Procedure

Disconnect the electrical wiring harness connector from accelerator pedal position Sensor.
After replacement of the accelerator pedal position sensor, use a scan tool to speed up the learn process. Refer to Engine Control Module Programming and Setup (LUW)
.
