Air Cleaner Assembly Replacement

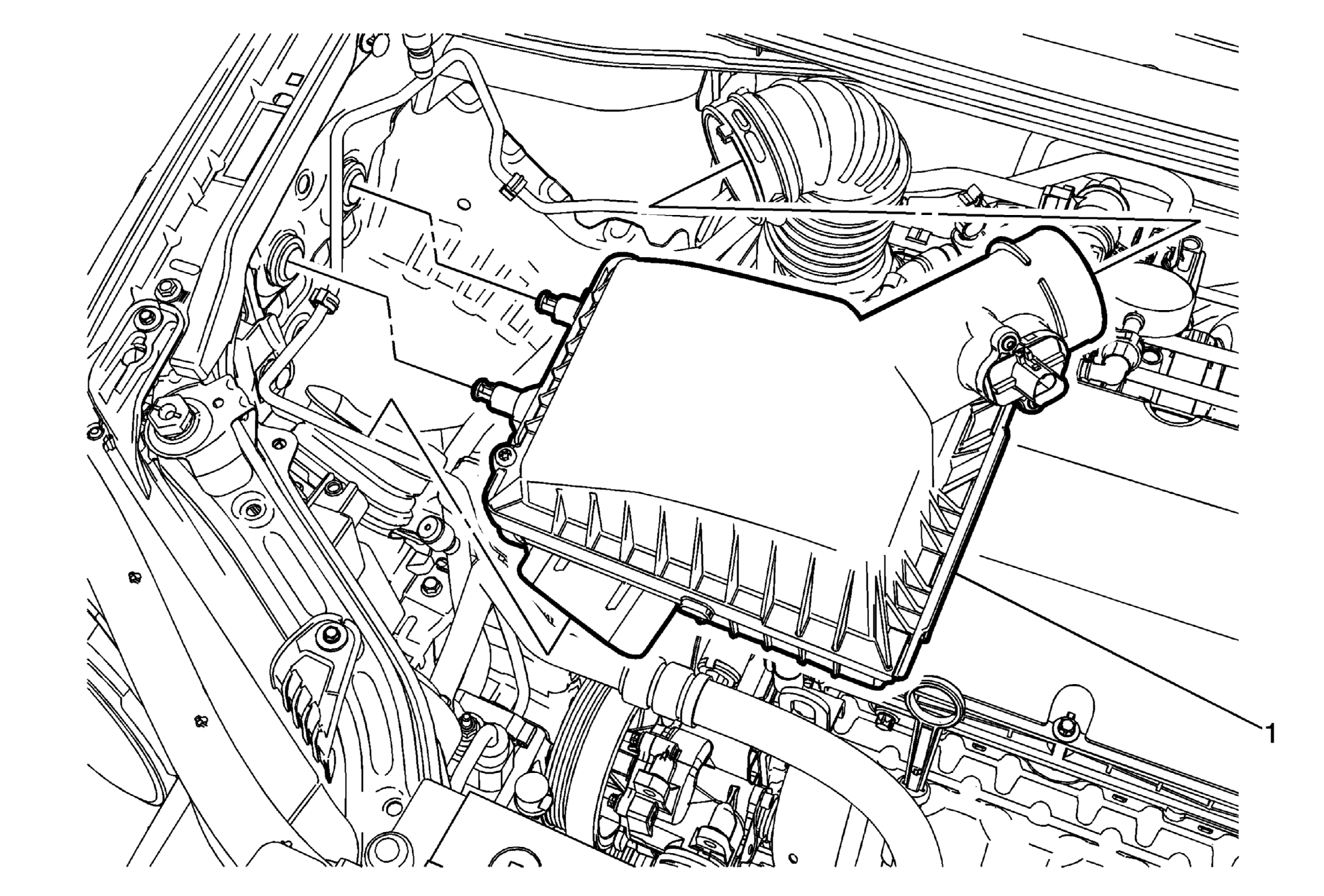

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Pull the air cleaner assembly upward and away from the right inner fender to separate the assembly from the rubber grommets.
