Crankshaft Position Sensor Replacement

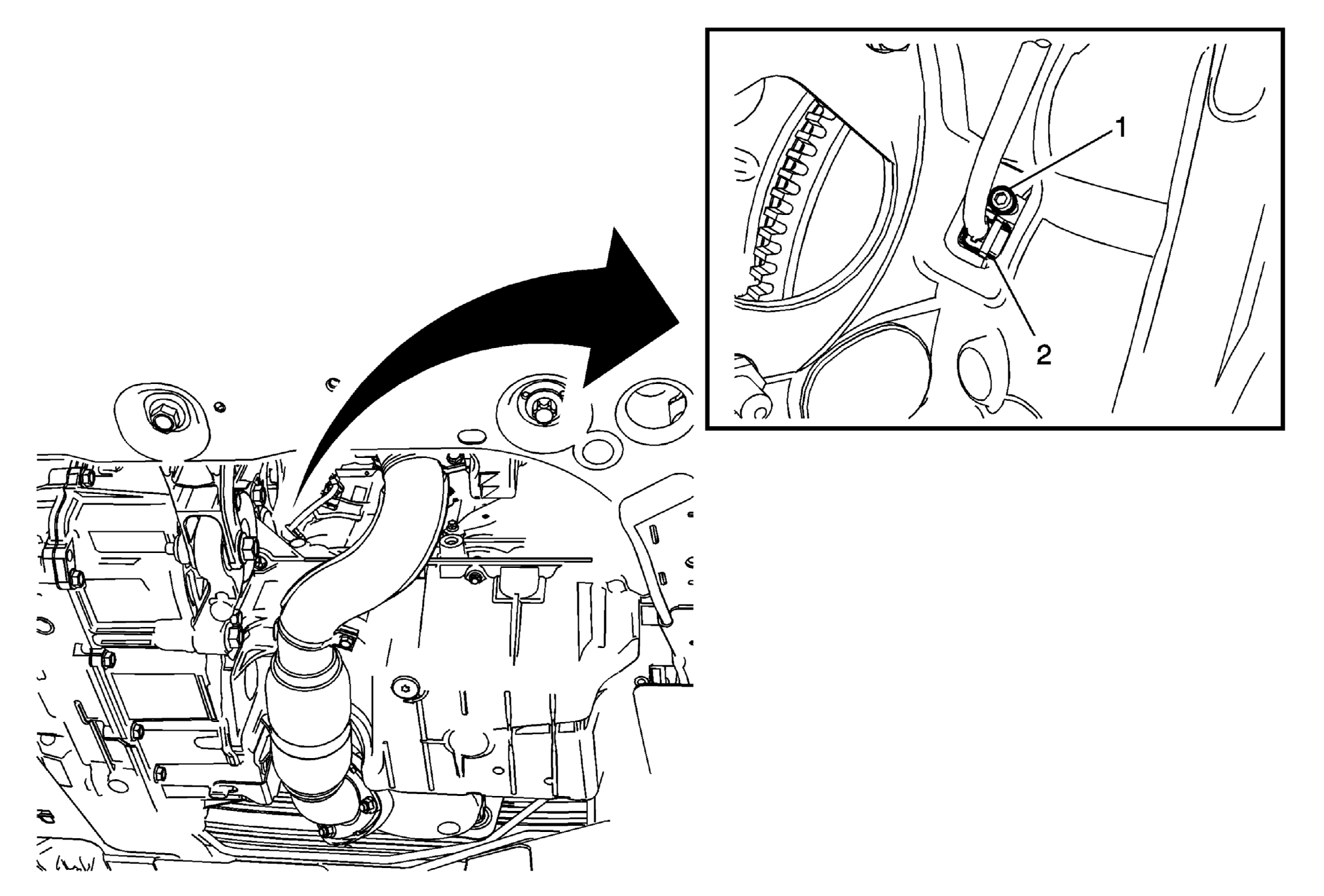

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the starter motor. Refer to Starter Replacement (LUW) .
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure Remove the crankshaft position sensor bolt Tighten 4.5 N.m (40 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical wiring harness connector from the crankshaft position sensor.
