Engine Oil Pressure Indicator Switch Replacement

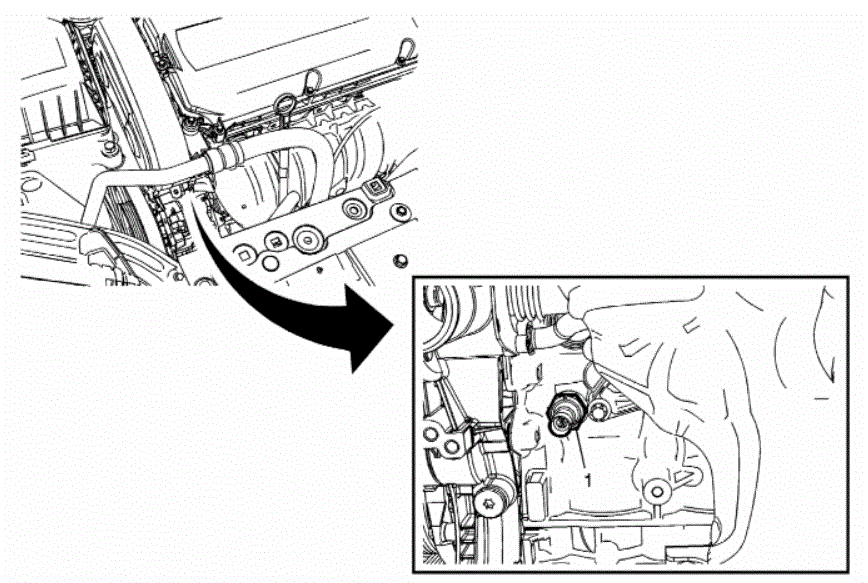

Fig 1: Engine Oil Pressure Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Engine Oil Pressure Indicator Switch Replacement

Callout	Component Name
Preliminary Procedure  Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LDE/LUW) .
1	Oil Pressure Switch CAUTION: Refer to Fastener Caution . Procedure  Disconnect the oil pressure switch electrical wiring harness connector and remove the switch. Tighten  20 N.m (15 lb ft)
