Installation Procedure

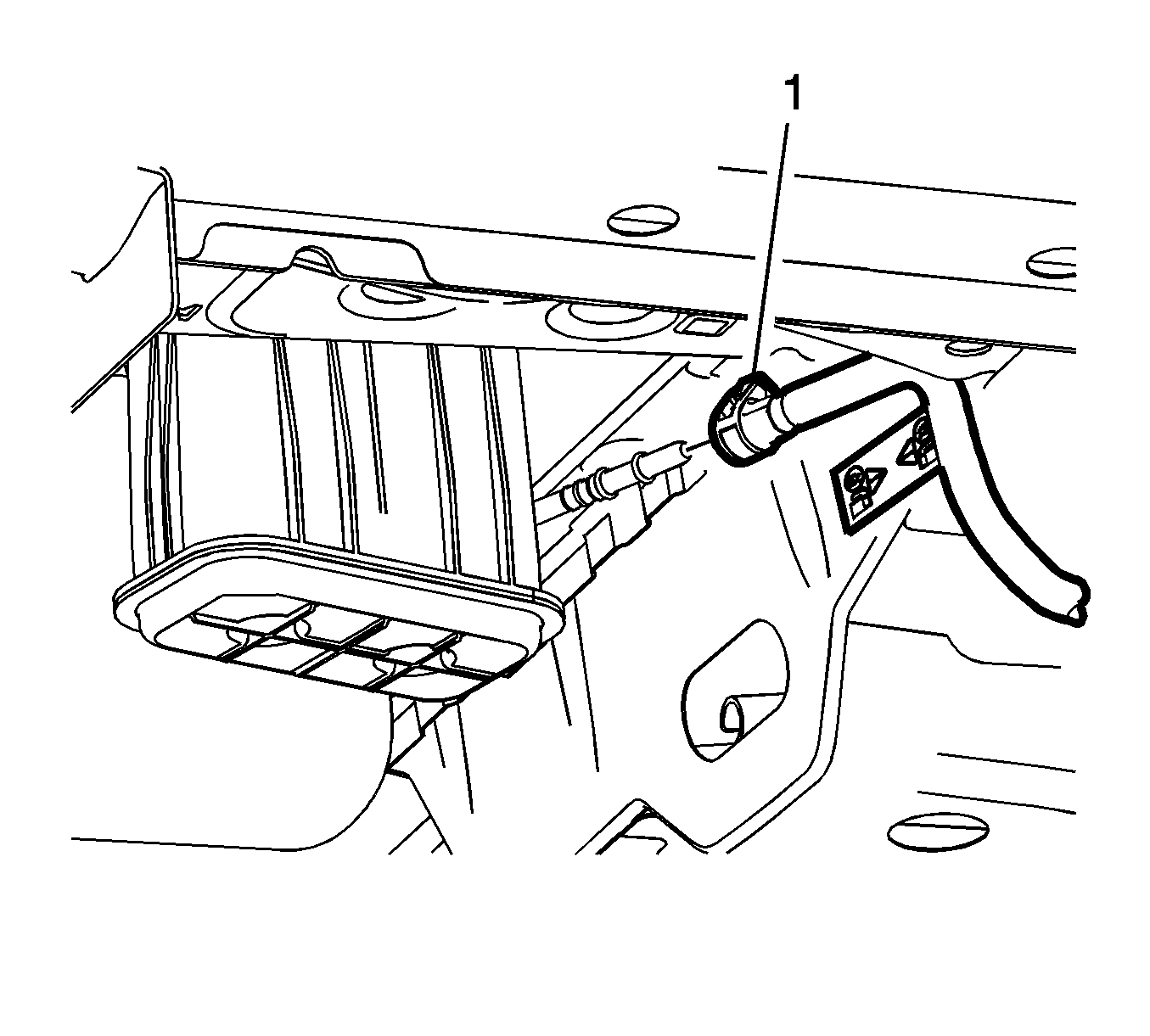

    Fig 1: Fuel Feed Pipe
    GM2495623Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe.
  2. Connect the fuel feed pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .

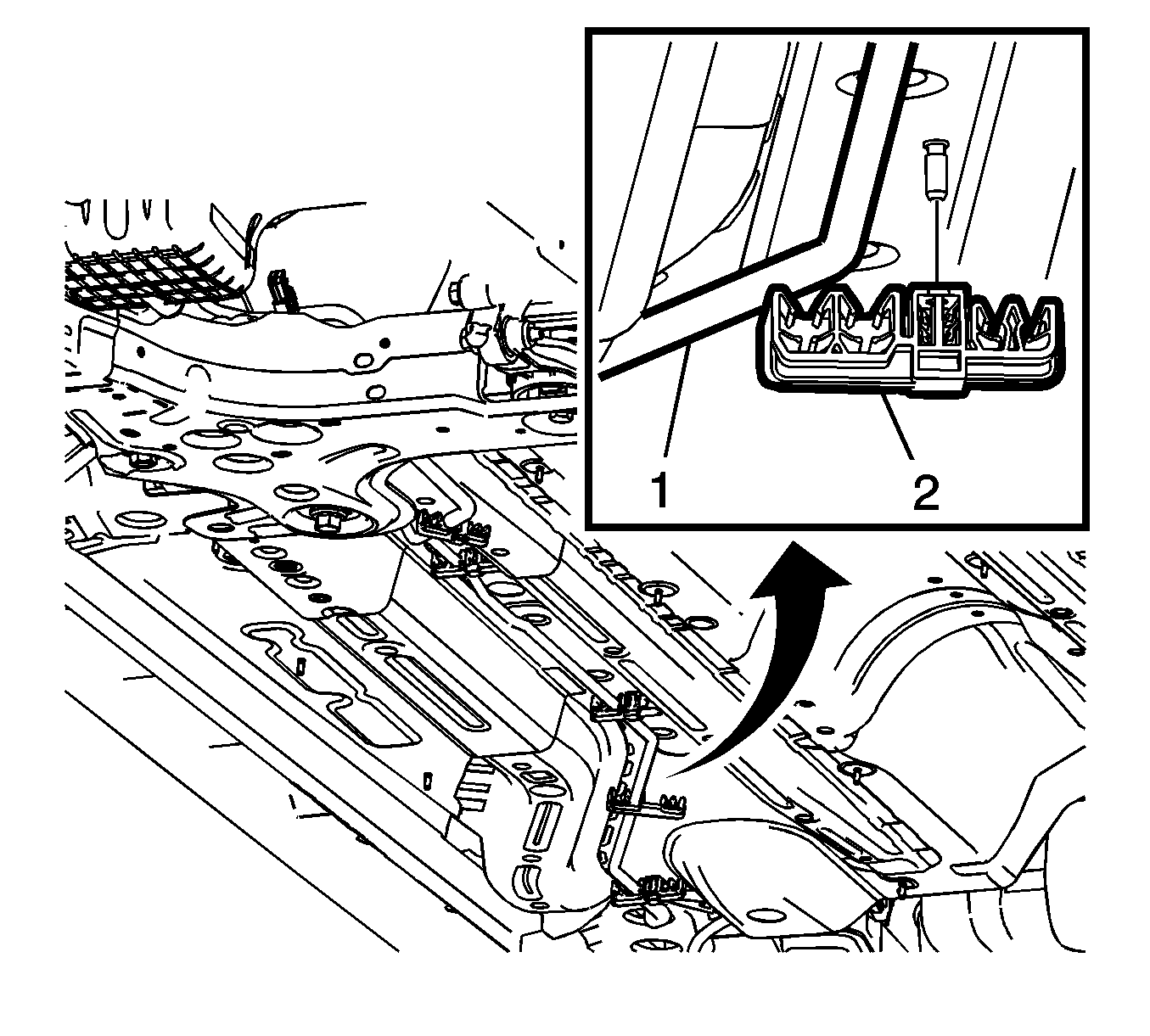

    3. Fig 2: Fuel Feed Pipe & Retainers
    GM2495620Courtesy of GENERAL MOTORS COMPANY
  3. Connect the fuel feed pipe (2) to the plastic retainers (1).

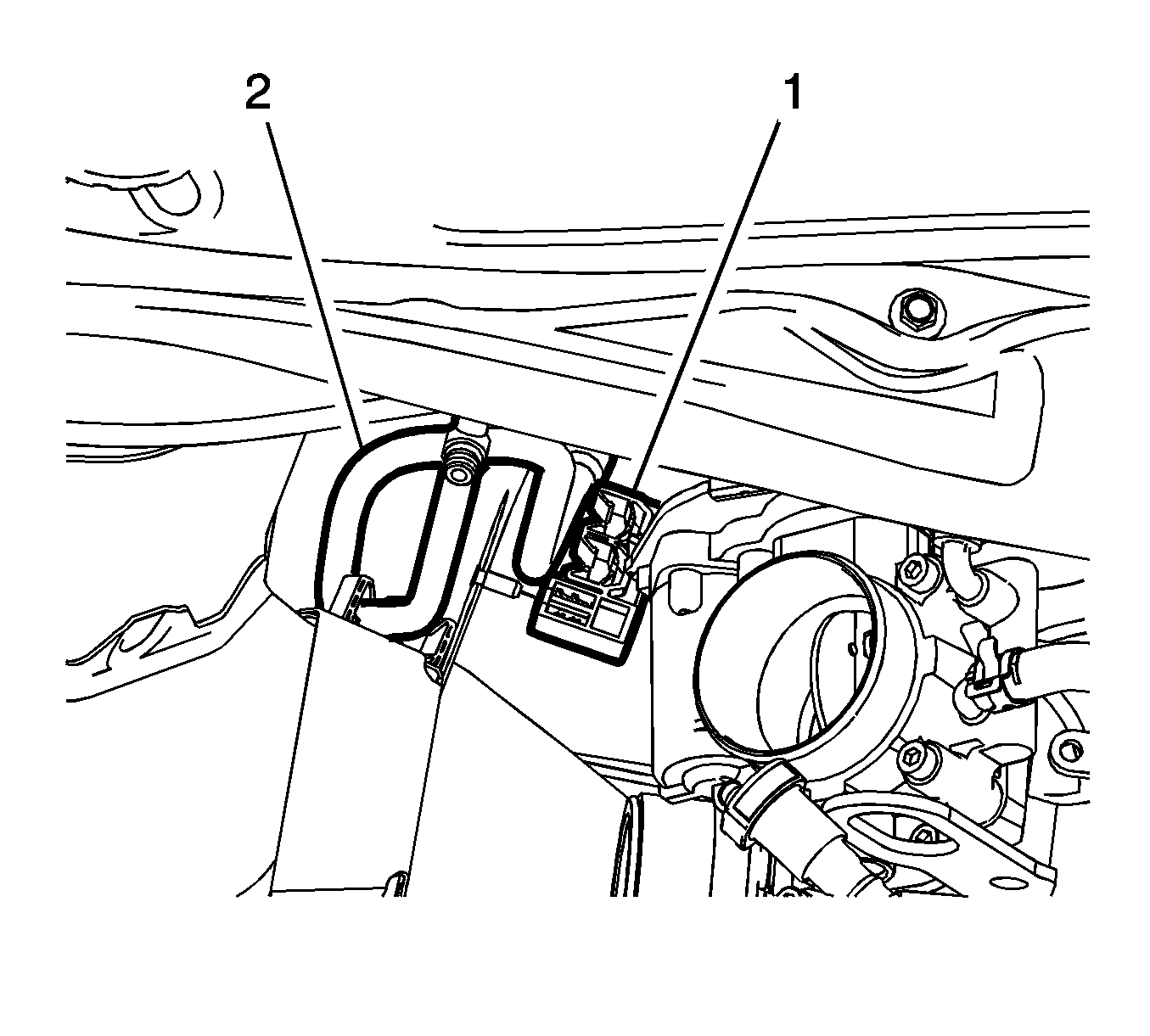

    4. Fig 3: Fuel Feed Pipe & Retainer
    GM2495619Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel feed pipe (2) and install the plastic retainer (1).

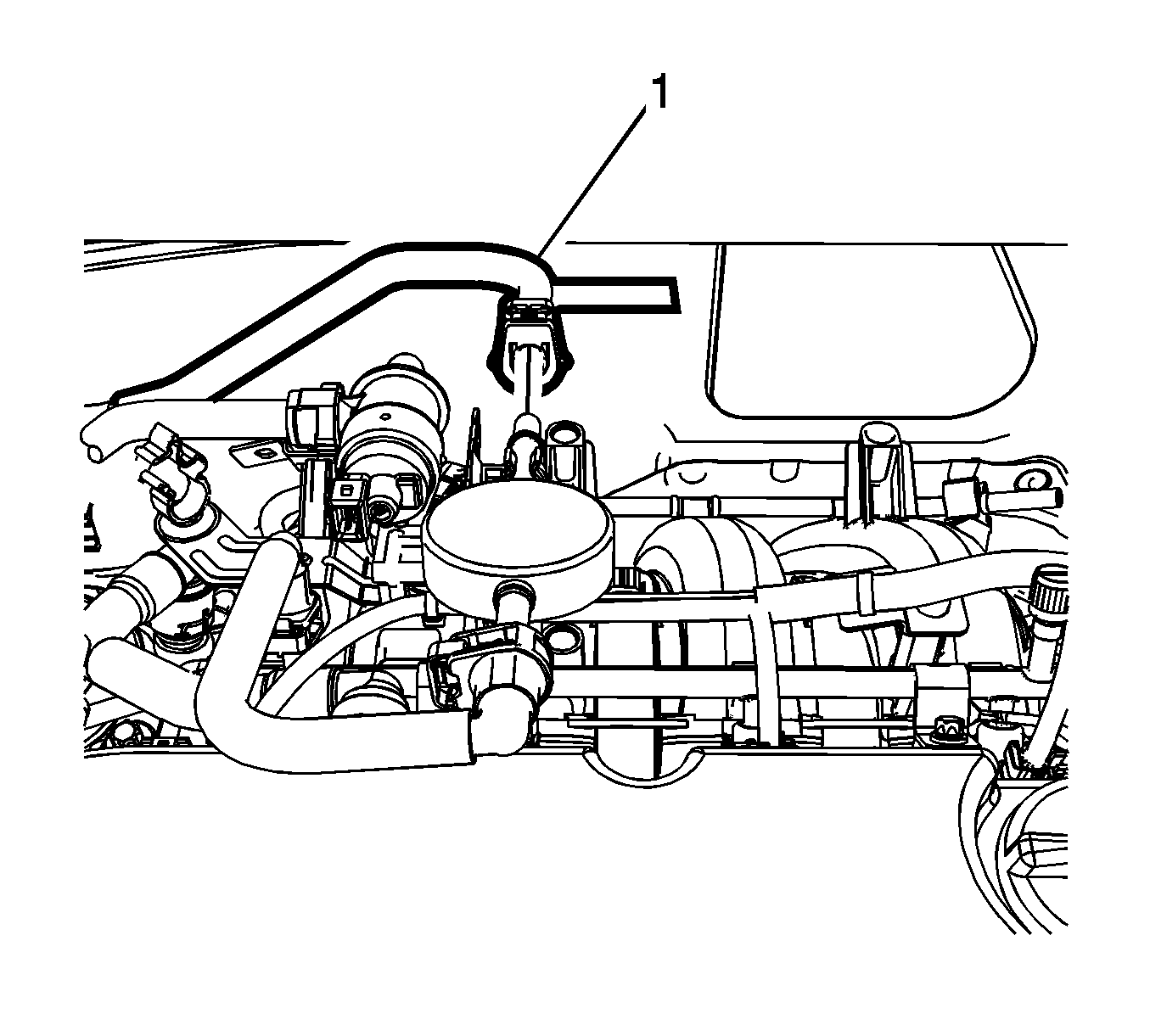

    5. Fig 4: Fuel Feed Pipe
    GM2509366Courtesy of GENERAL MOTORS COMPANY
  5. Connect the fuel feed pipe (1). Refer to Plastic Collar Quick Connect Fitting Service .
  6. Install the fuel feed pressure sensor. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe .
