Fuel Pressure Sensor Replacement

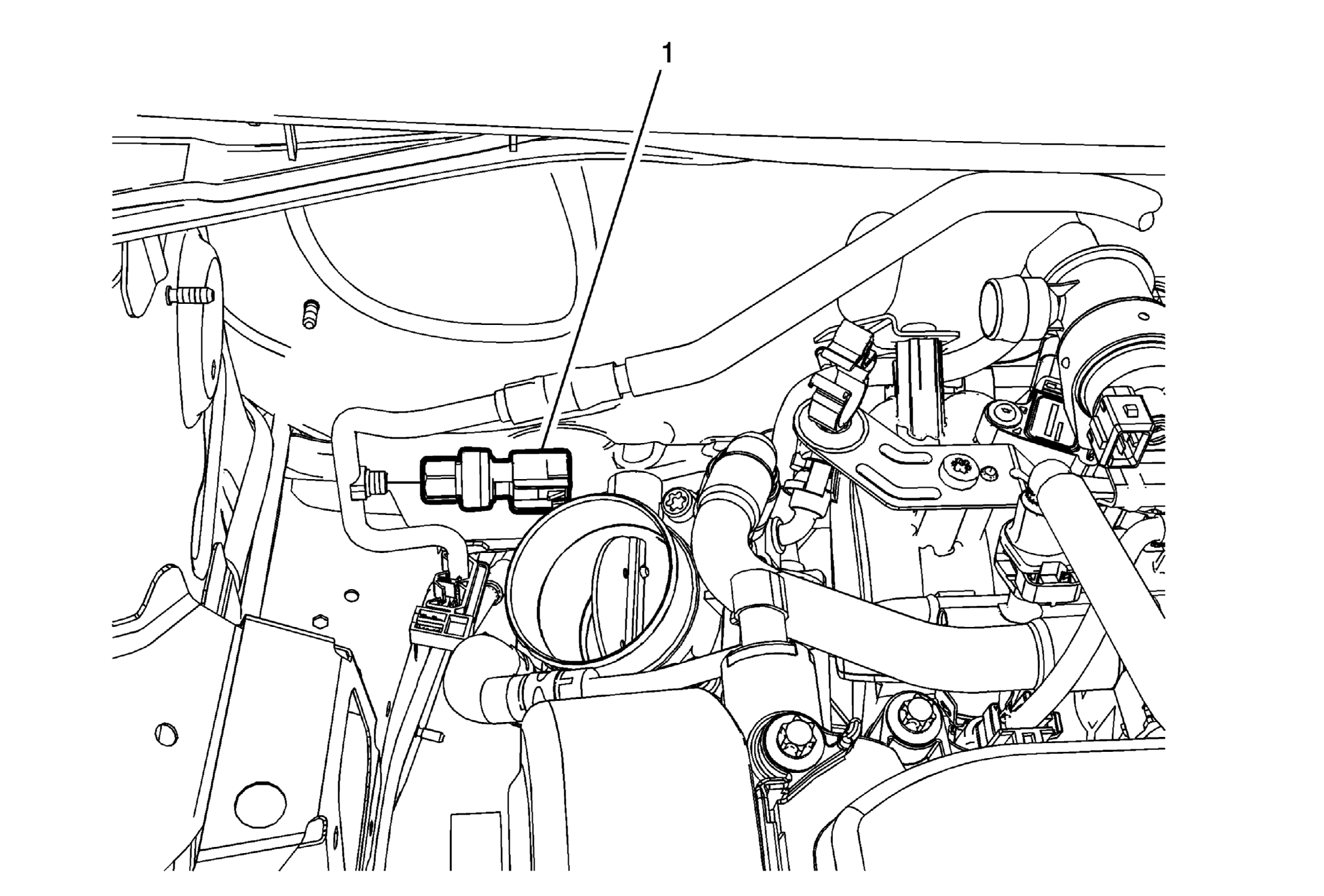

Fig 1: Fuel Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Fuel Pressure Sensor CAUTION: Refer to Fastener Caution . Tighten 19 N.m(14 lb ft)

Callout

Component Name

Preliminary Procedure

Fuel Pressure Sensor

CAUTION:

Tighten
19 N.m(14 lb ft)
