Installation Procedure

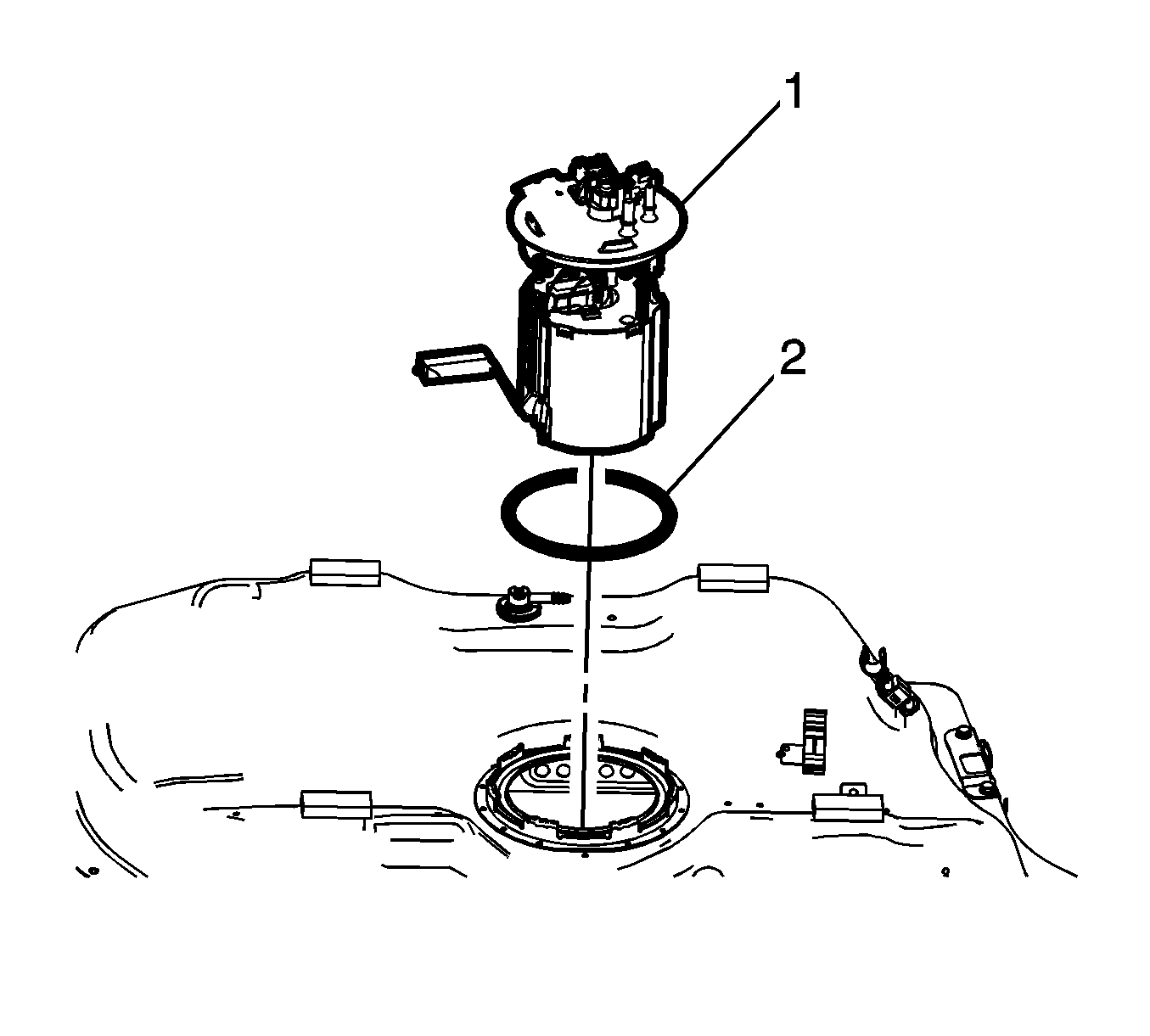

    Fig 1: Fuel Pump Module & O-Ring
    GM2495432Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW O-ring (2) and the fuel pump module (1).

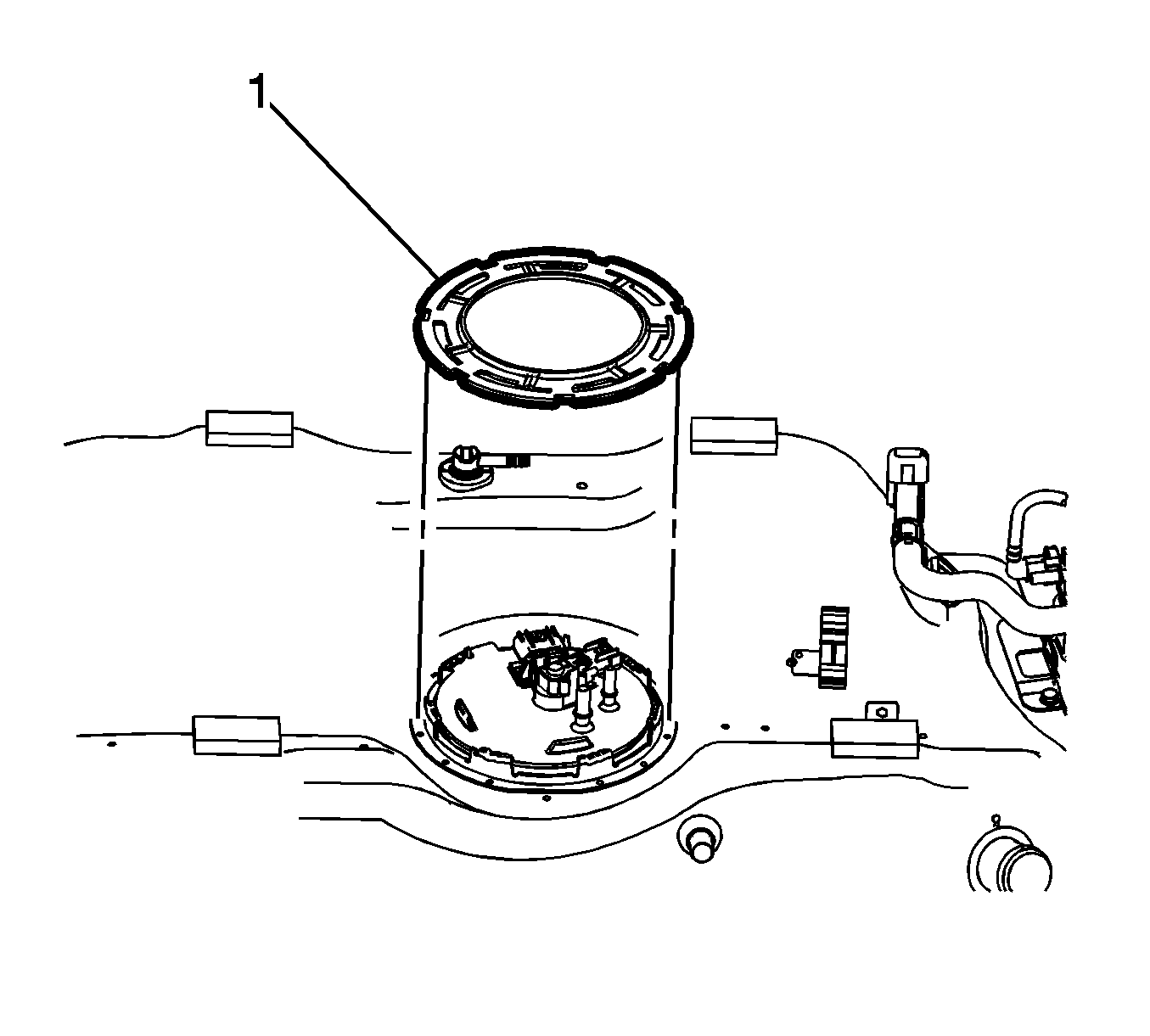

    2. Fig 2: Fuel Sender Lock Ring
    GM2495431Courtesy of GENERAL MOTORS COMPANY
  2. Using the EN 48279 wrench, install the lock ring (1) by turning clockwise.

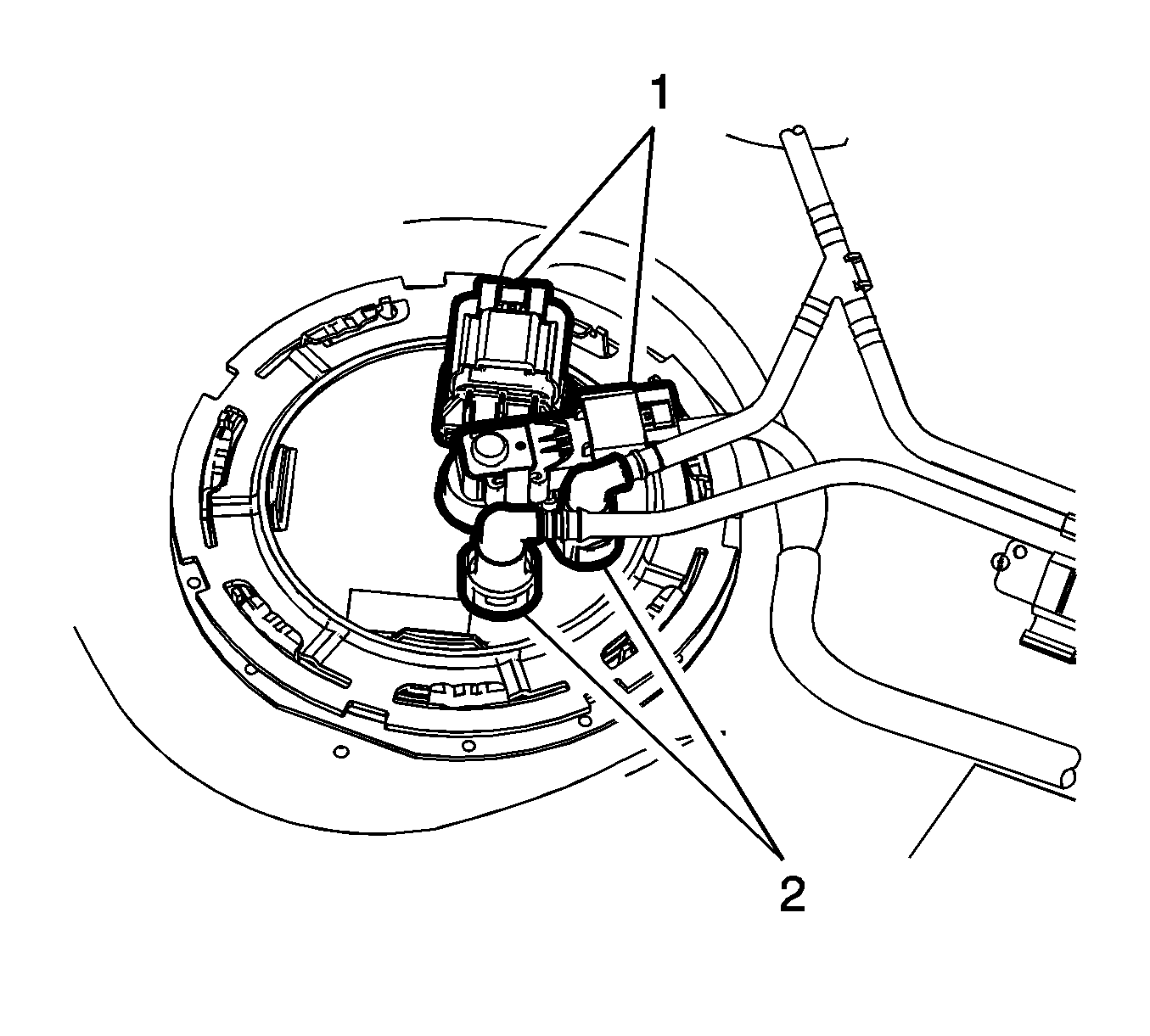

    3. Fig 3: Evaporative Emission & Fuel Feed Lines
    GM2495427Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connectors (1).
  4. Connect the evaporative emission and fuel lines (2). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the fuel tank. Refer to Fuel Tank Replacement .
