Mass Airflow Sensor Replacement

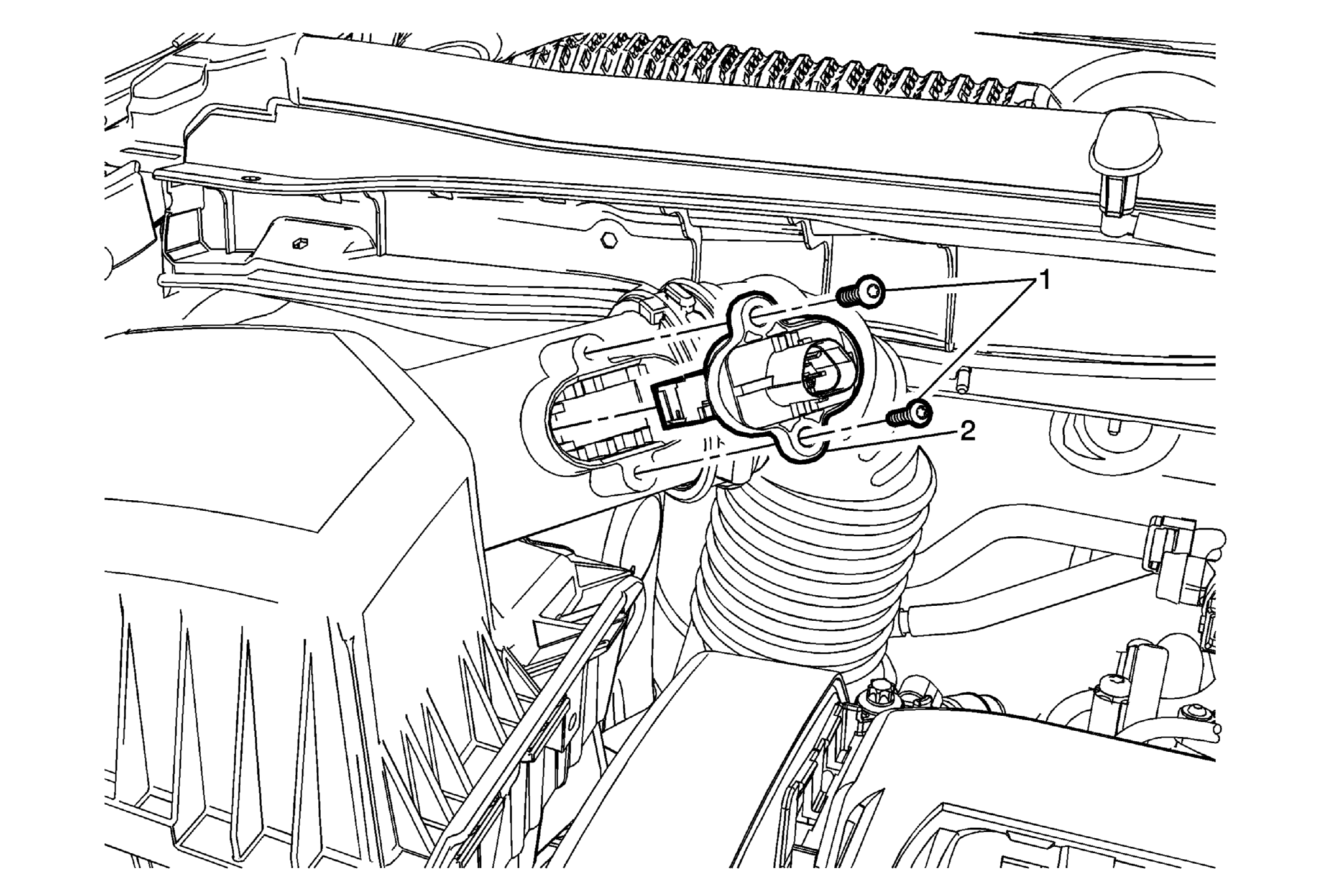

Fig 1: Mass Airflow Sensor
GM2498126Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor Fastener (Qty 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical wiring harness connector from the Mass Airflow Sensor.
