Power, Ground, Data Communications, and Subsystem References (1 of 5)

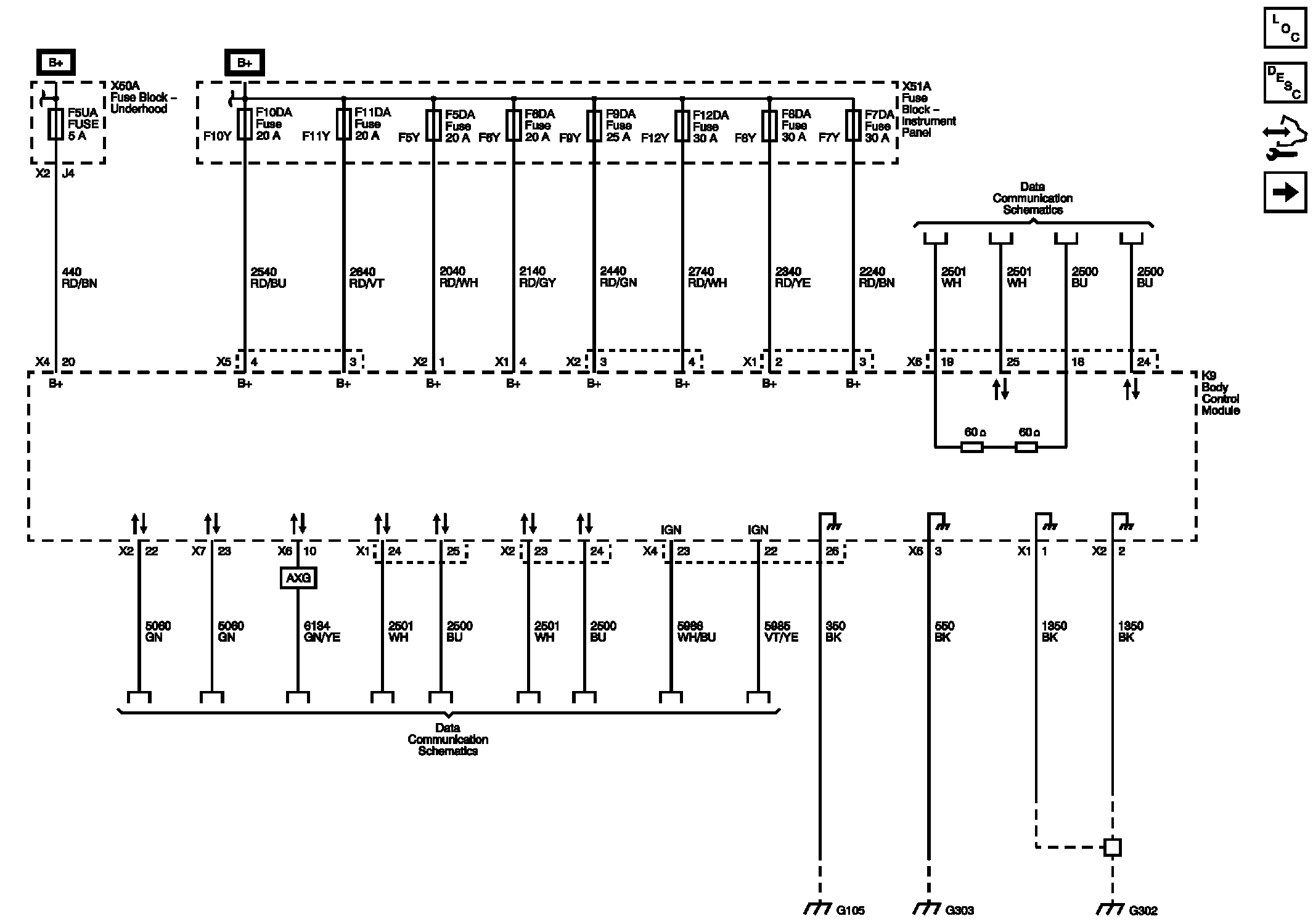

Fig 1: Power, Ground, Data Communications, and Subsystem References Wiring Schematic (1 of 5)
GM2592149Courtesy of GENERAL MOTORS COMPANY
