Subsystem References (5 of 5)

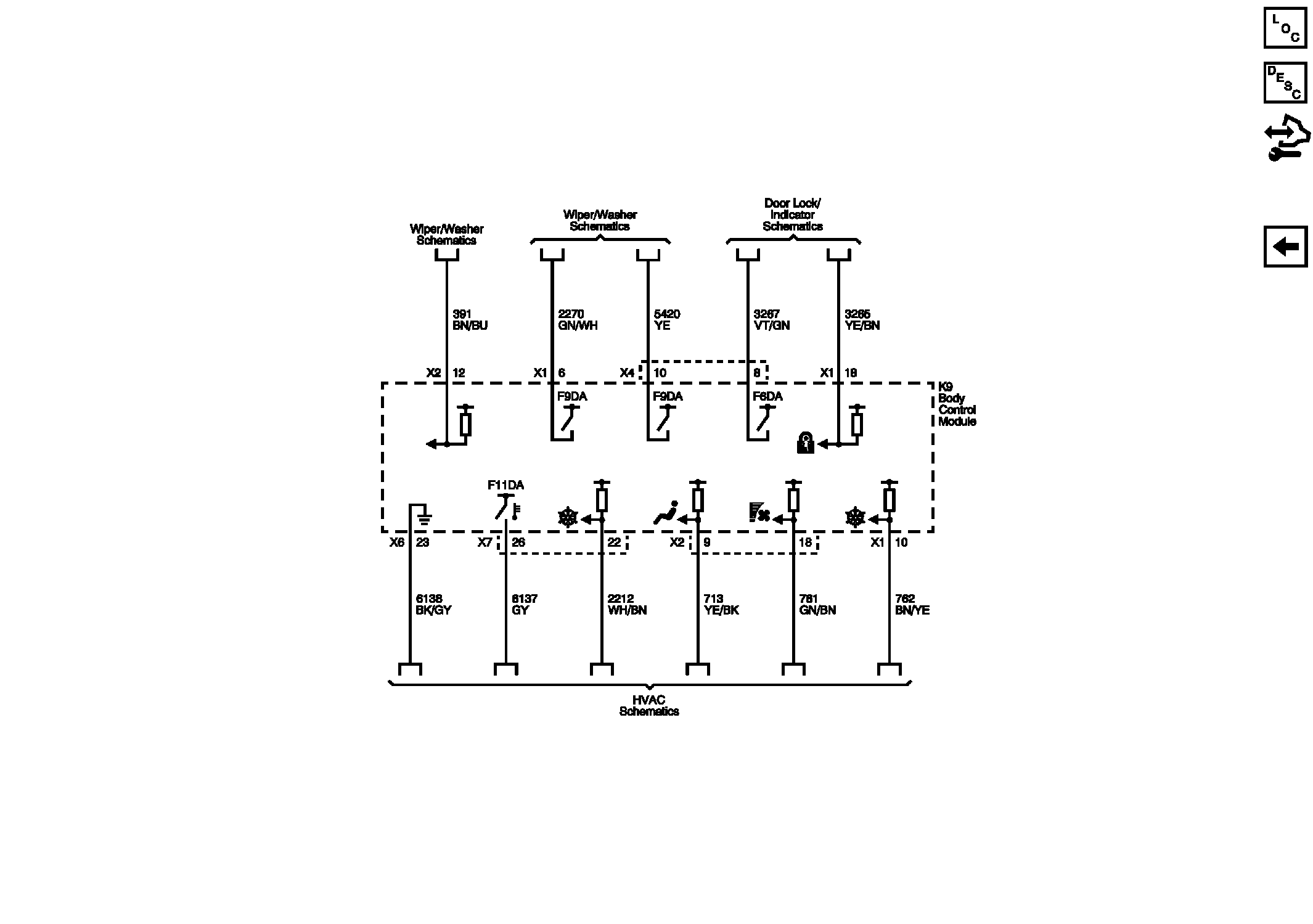

Fig 1: Subsystem References Wiring Schematic (5 of 5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
