Intake Manifold Tuning Valve Actuator Replacement

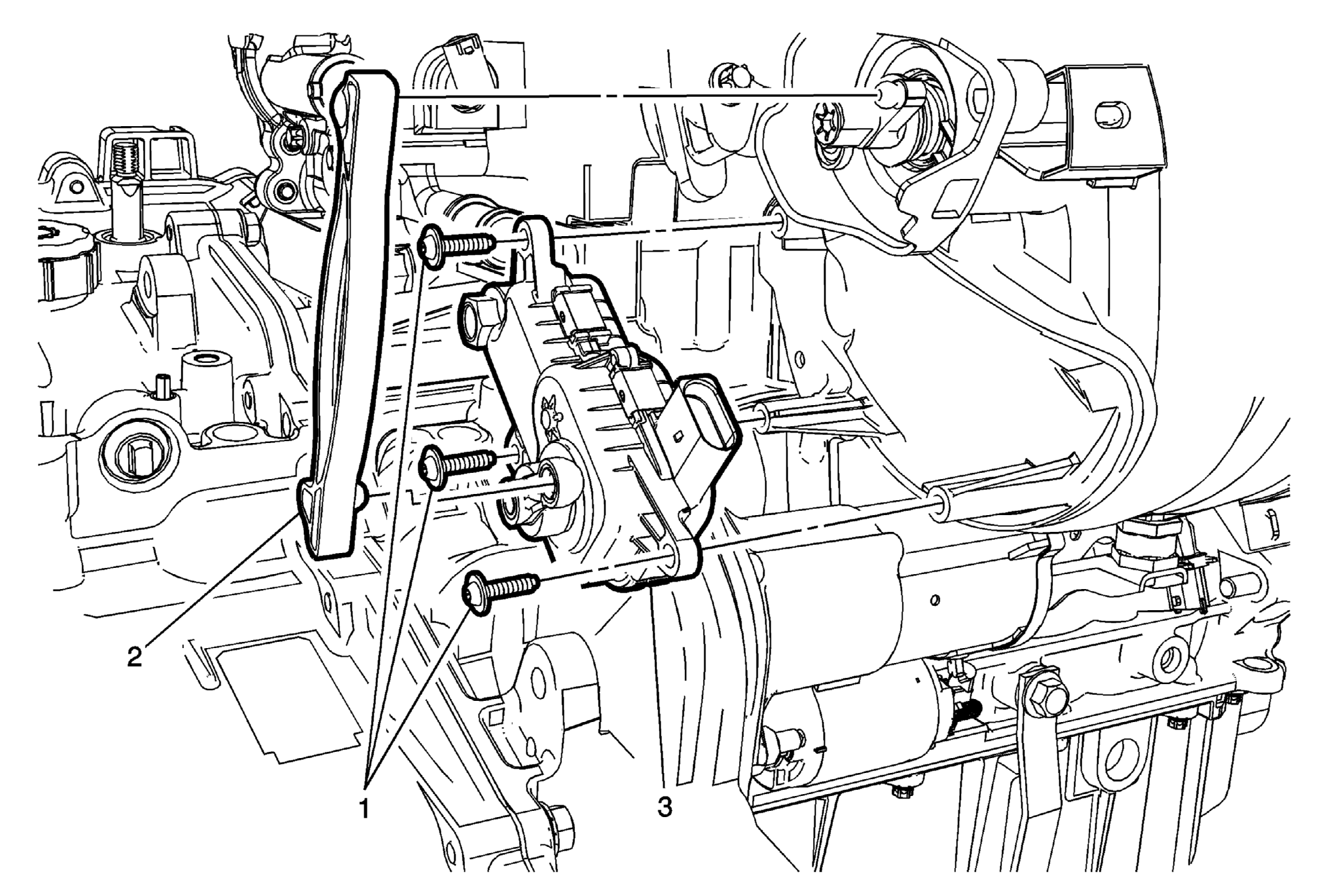

Fig 1: Intake Manifold Tuning Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Tuning Valve Actuator Replacement

Callout	Component Name
Preliminary Procedure  Properly raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Intake Manifold Runner Control Valve Actuator Solenoid Valve Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Intake Manifold Runner Control Valve Actuator Solenoid Linkage
3	Intake Manifold Runner Control Valve Actuator Solenoid Procedure  Disconnect the wiring harness electrical connector from the intake manifold runner control valve actuator solenoid.
