Data Link Power, Ground, and Low Speed GMLAN

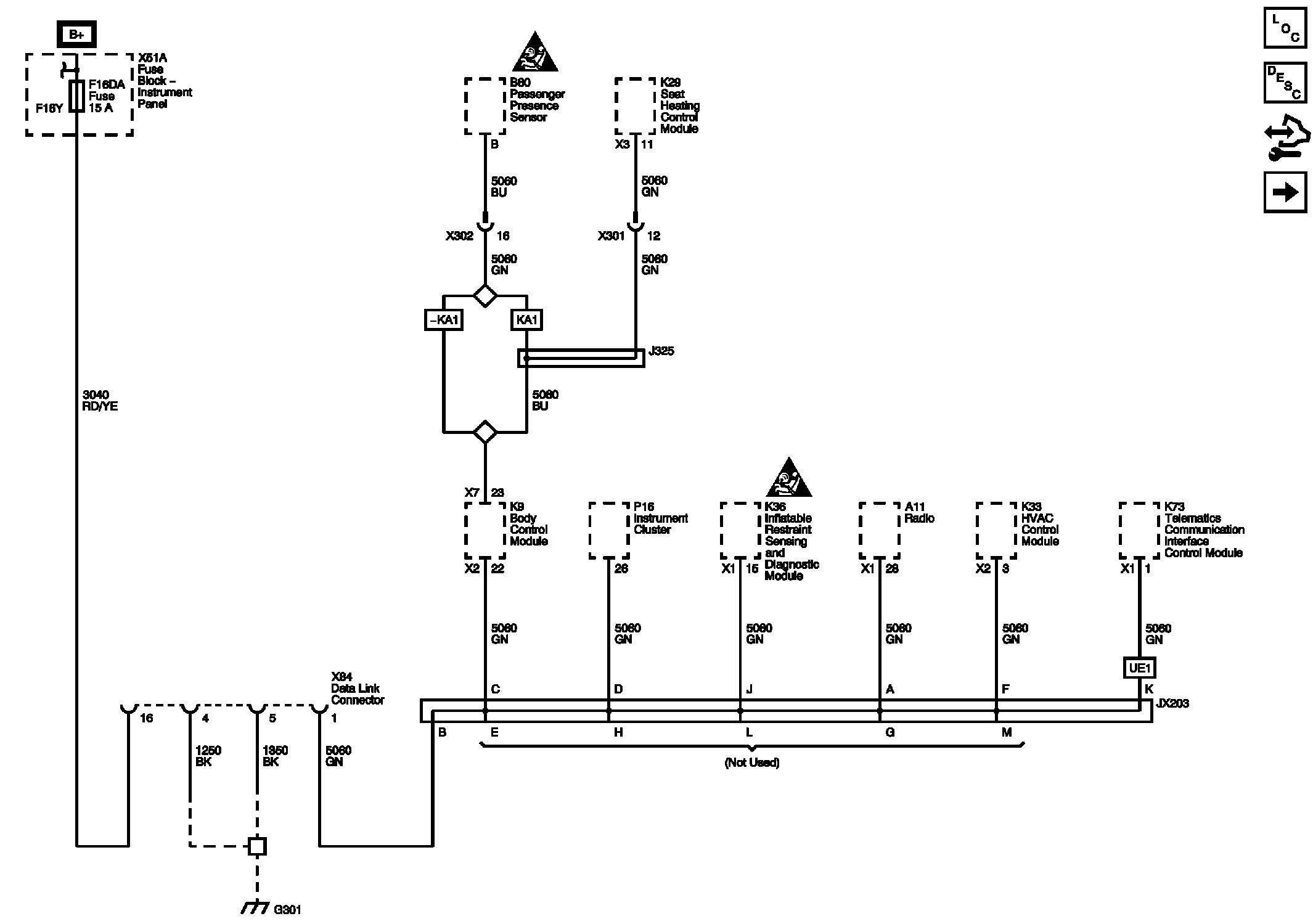

Fig 1: Data Link Power, Ground, and Low Speed GMLAN Wiring Schematic
GM2592137Courtesy of GENERAL MOTORS COMPANY
