Memory Positioning Switch: Locations

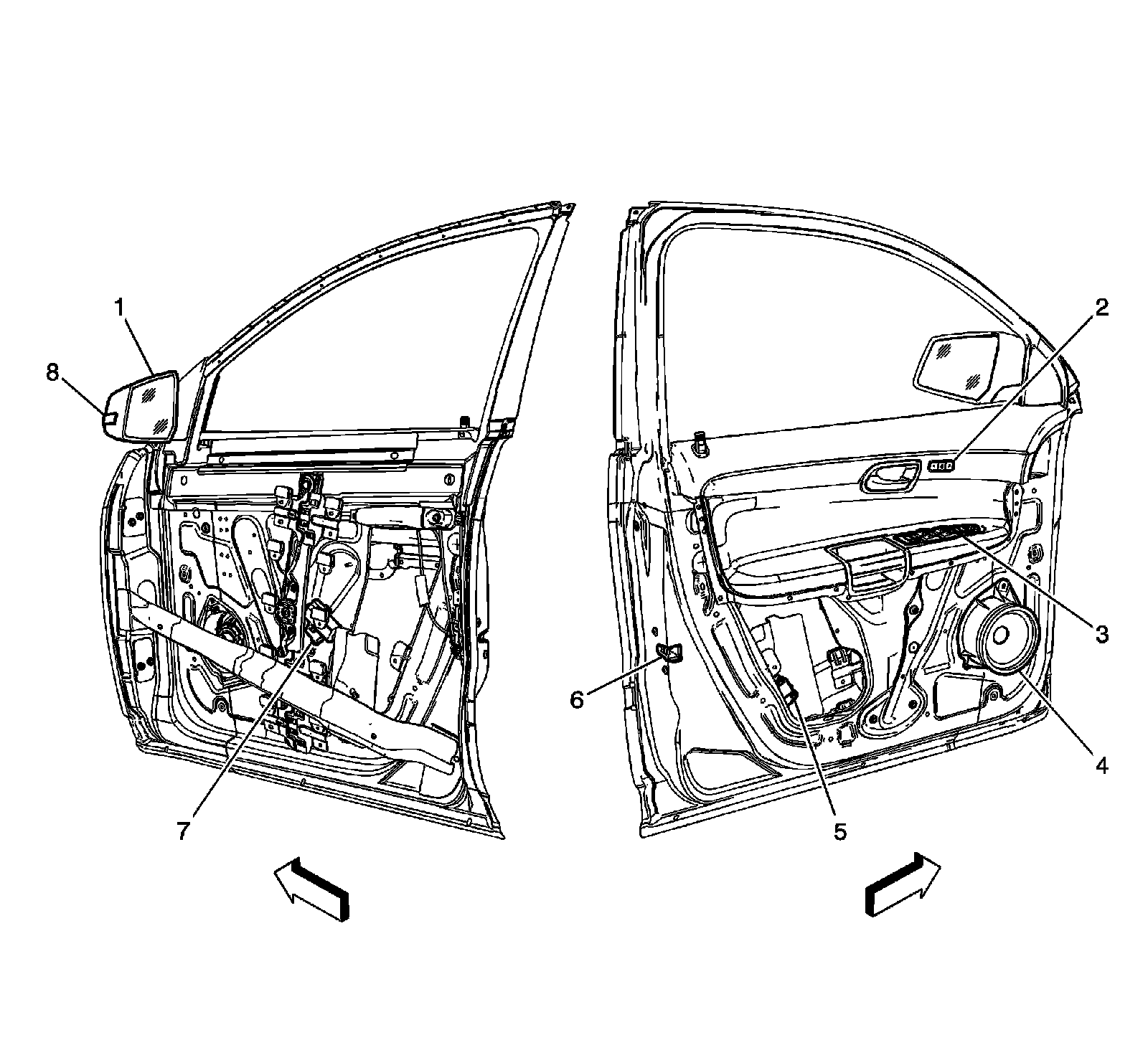

Door Component Views

Driver Door





1 - Outside Rearview Mirror - Driver

2 - Memory Seat Adjuster Switch - Driver (A45)

3 - Door Lock/Window Switch - Driver (AXE)

4 - Speaker - Left Front

5 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front

6 - Door Latch - Driver

7 - Window Motor - Driver

8 - Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP or DS3)
