Control Assembly, HVAC

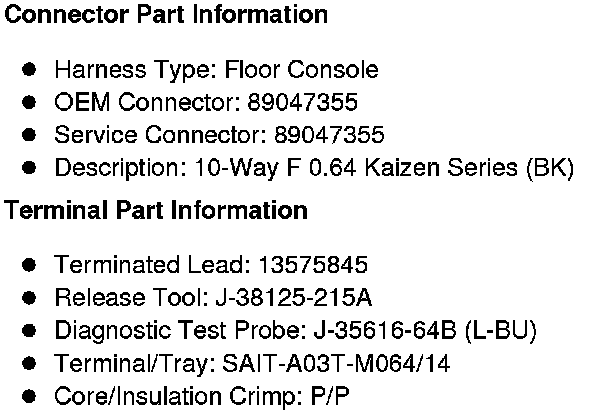

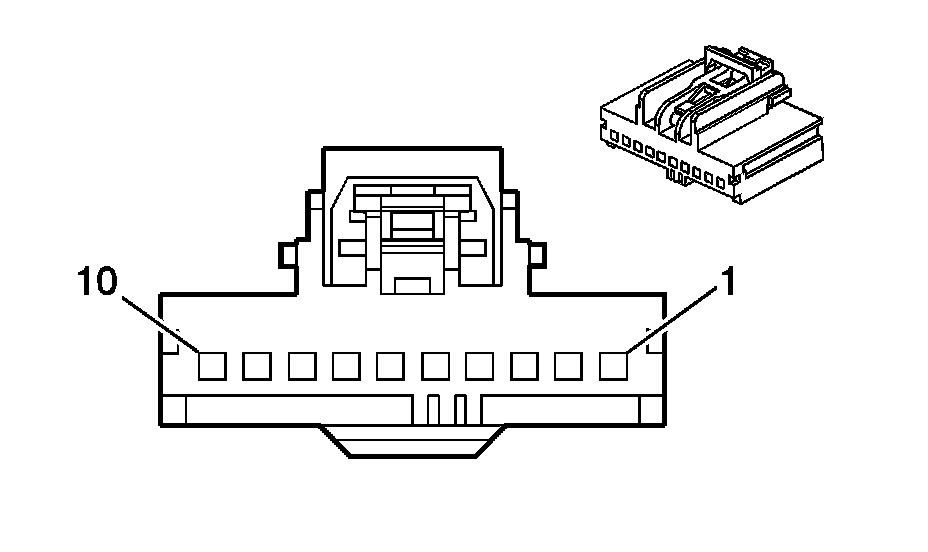

Component Connector End Views

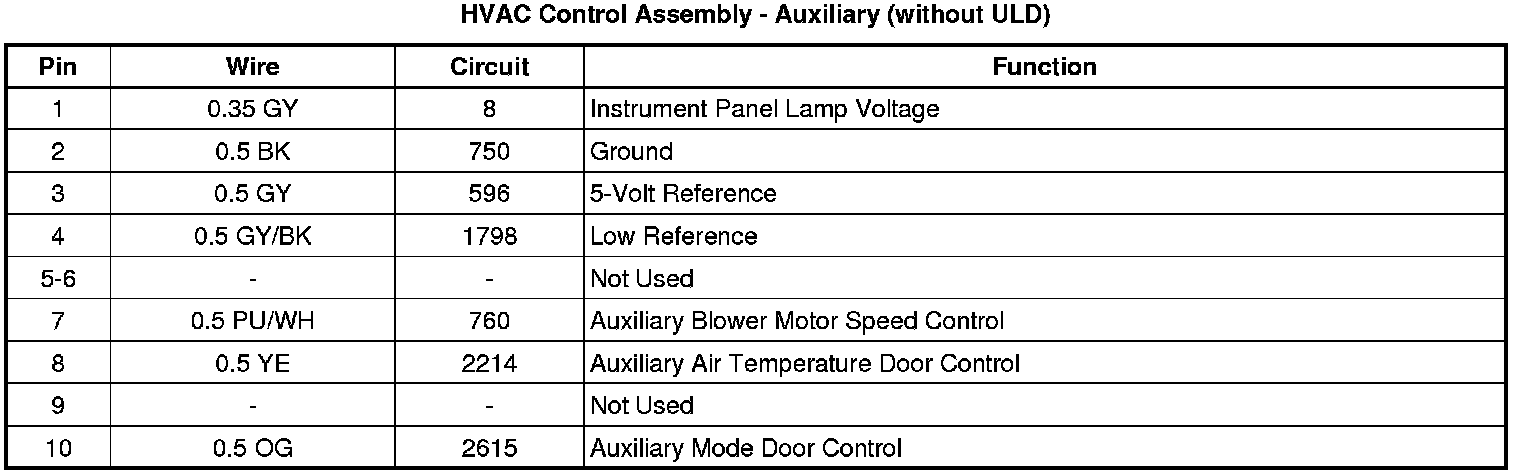

HVAC Control Assembly - Auxiliary (without ULD)
