Rear Differential Clutch Control Module X2 (MH6)

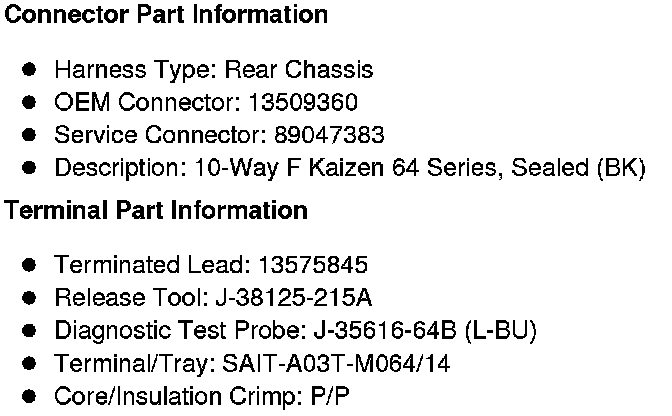

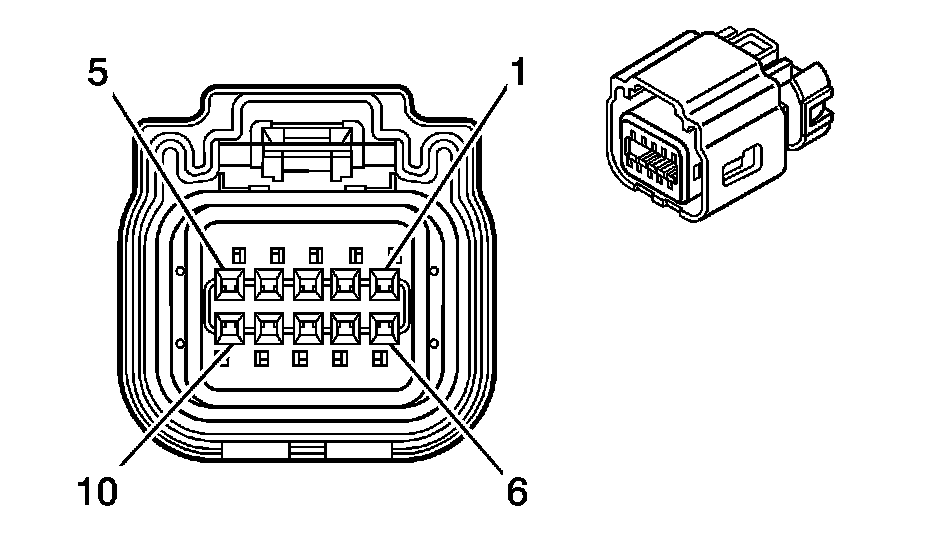

Component Connector End Views

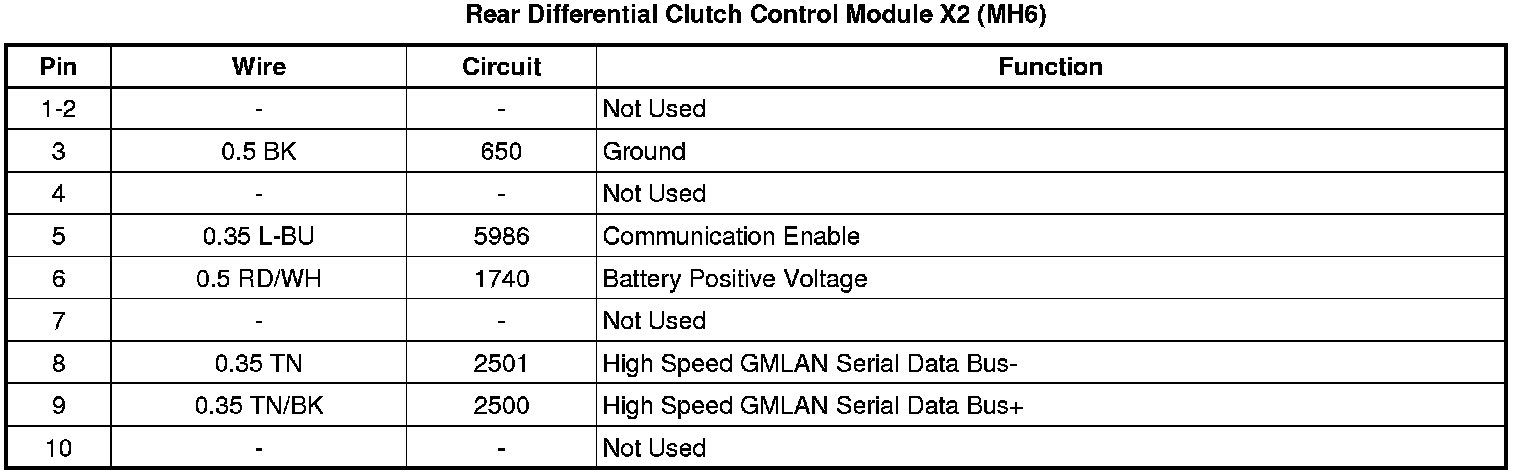

Rear Differential Clutch Control Module X2 (MH6)
