Driver / Vehicle Information Display Switch

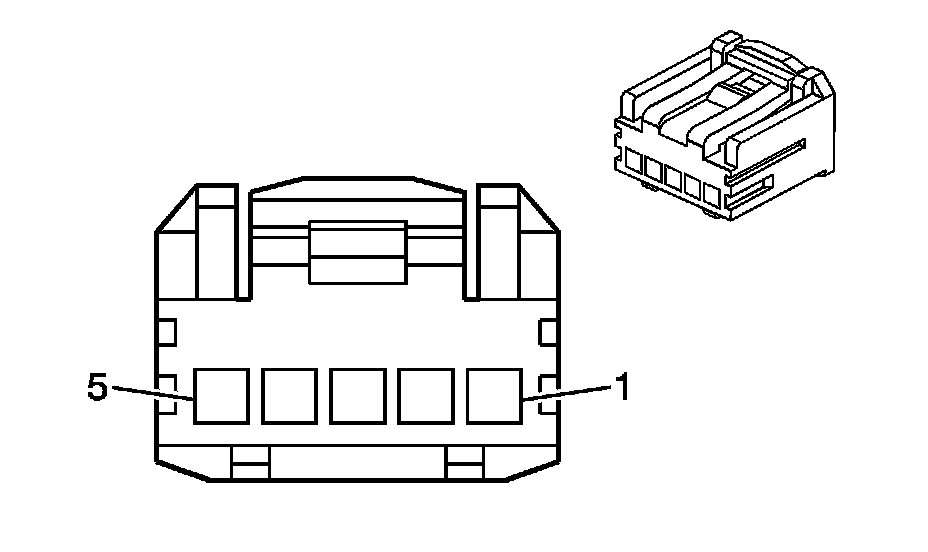

Component Connector End Views

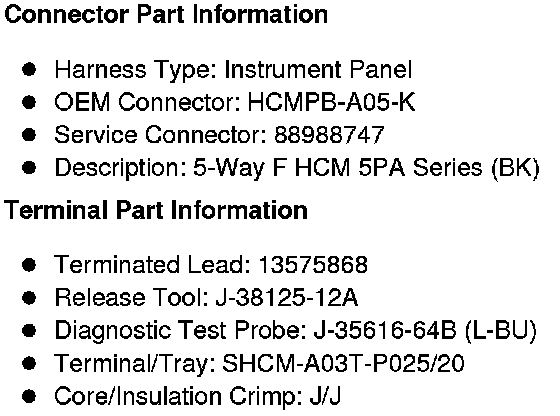

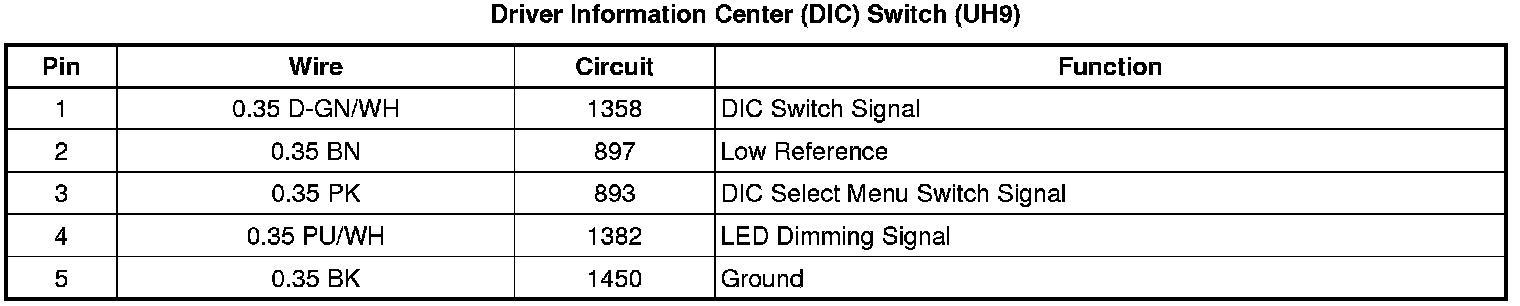

Driver Information Center (DIC) Switch (UH9)
