Automatic Transmission/Transaxle

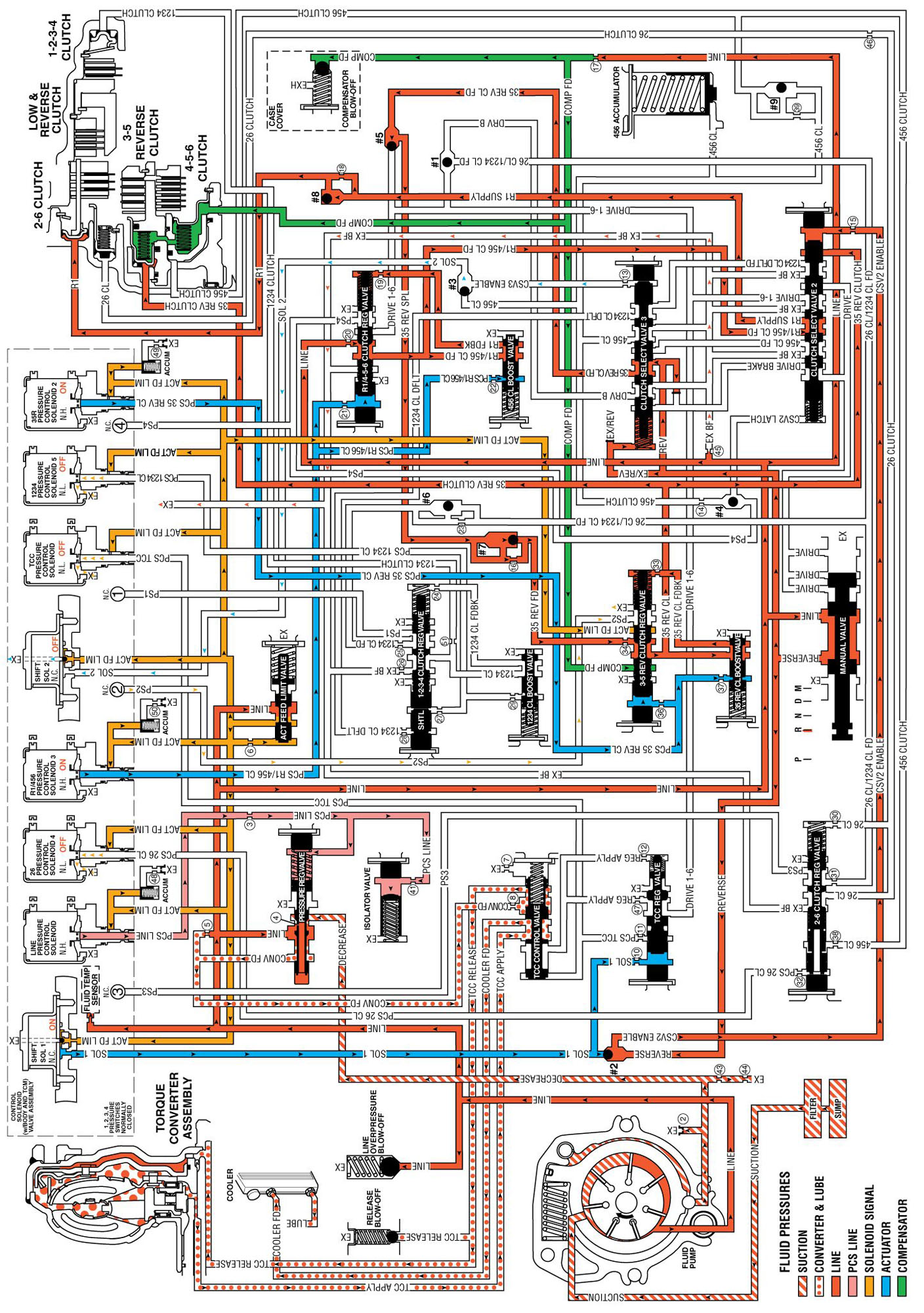

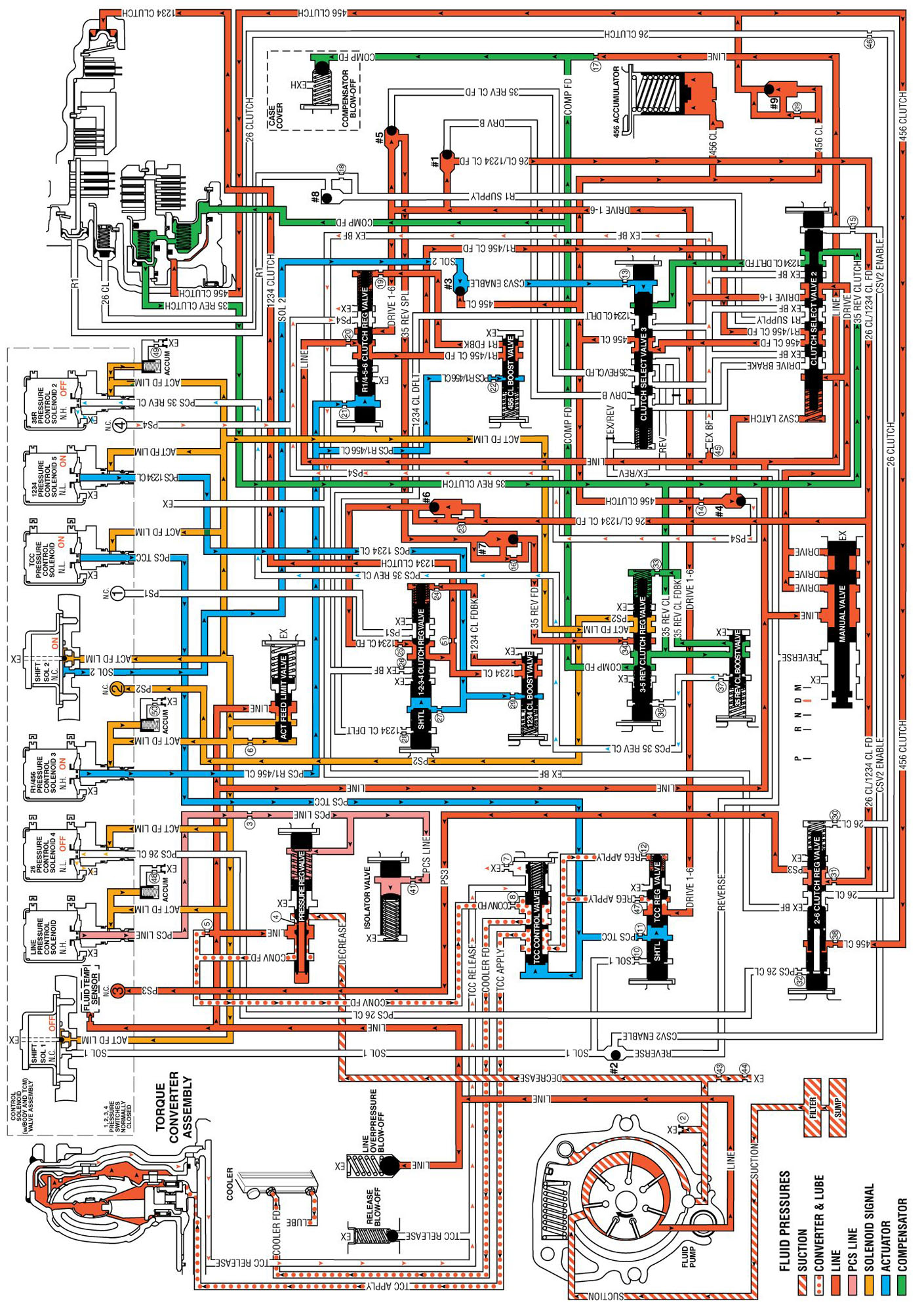

Park- Engine Running

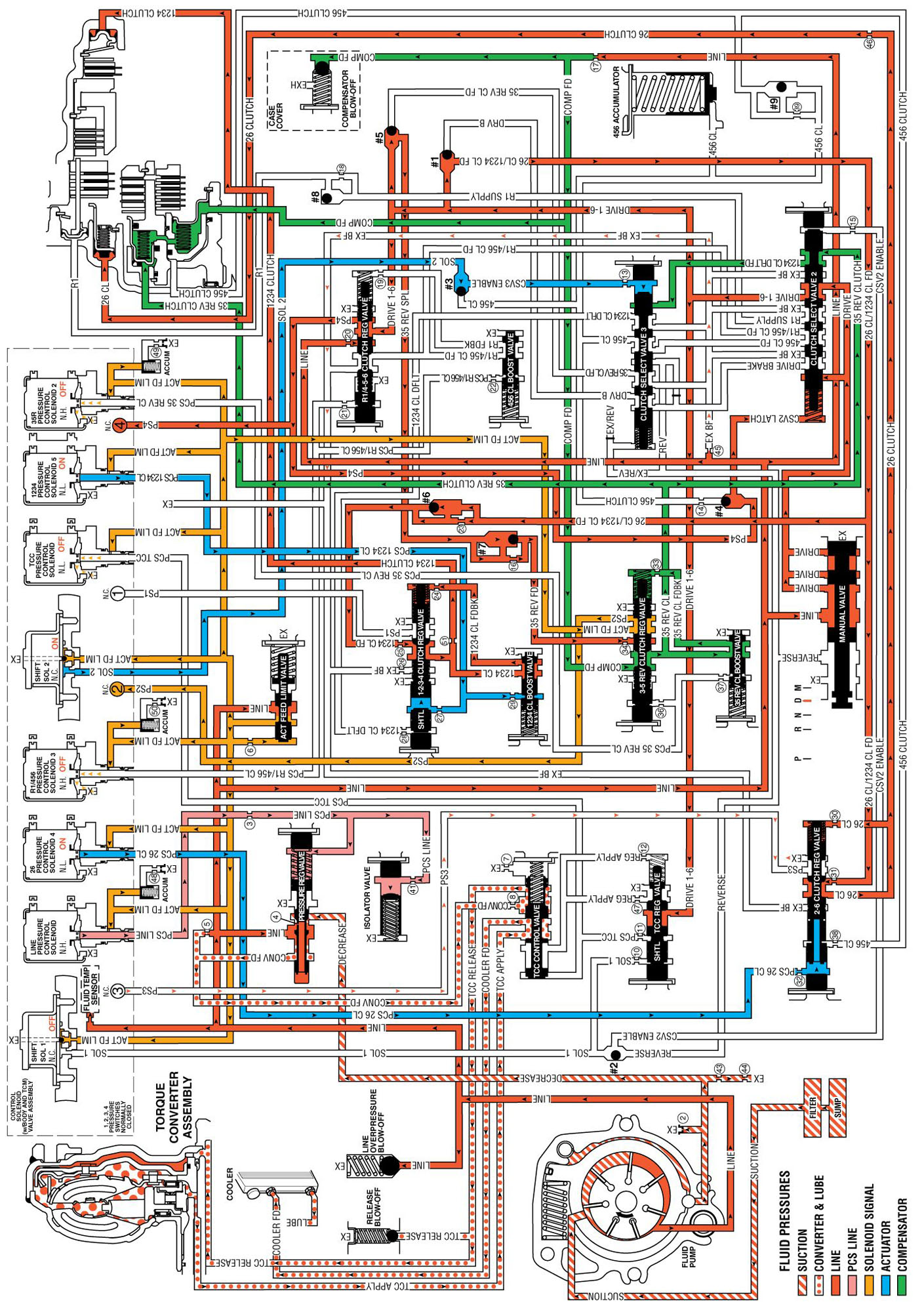

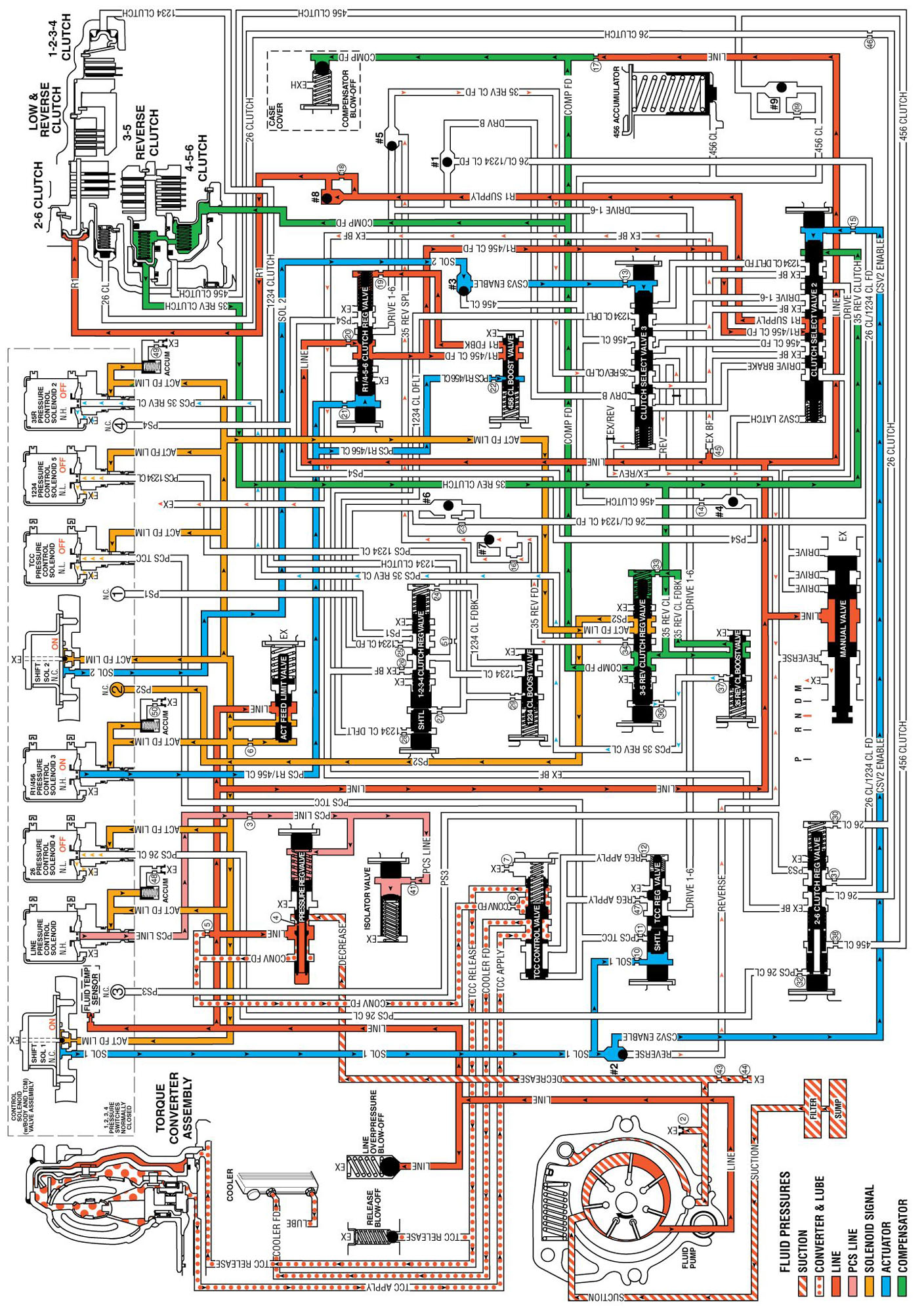

Reverse

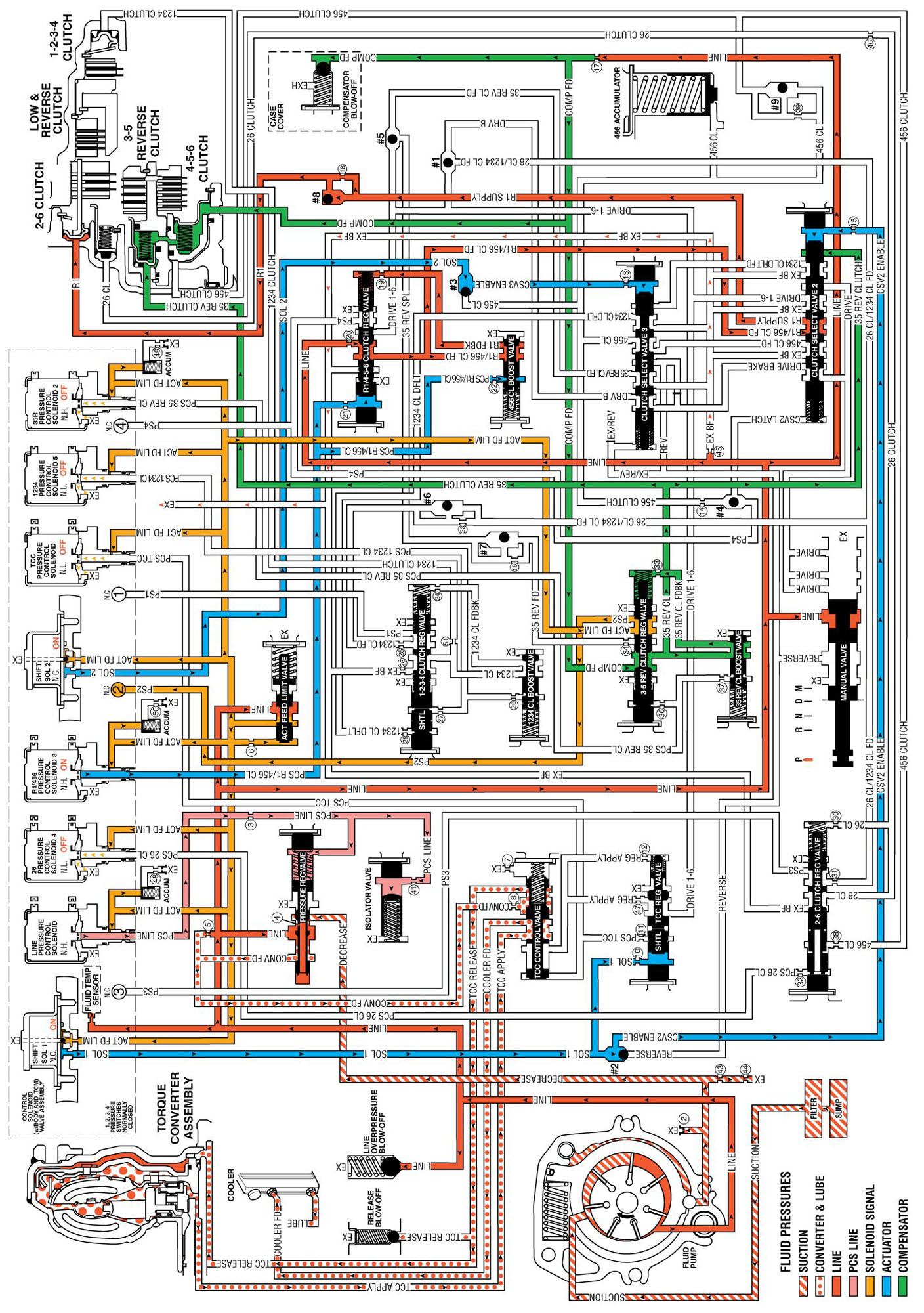

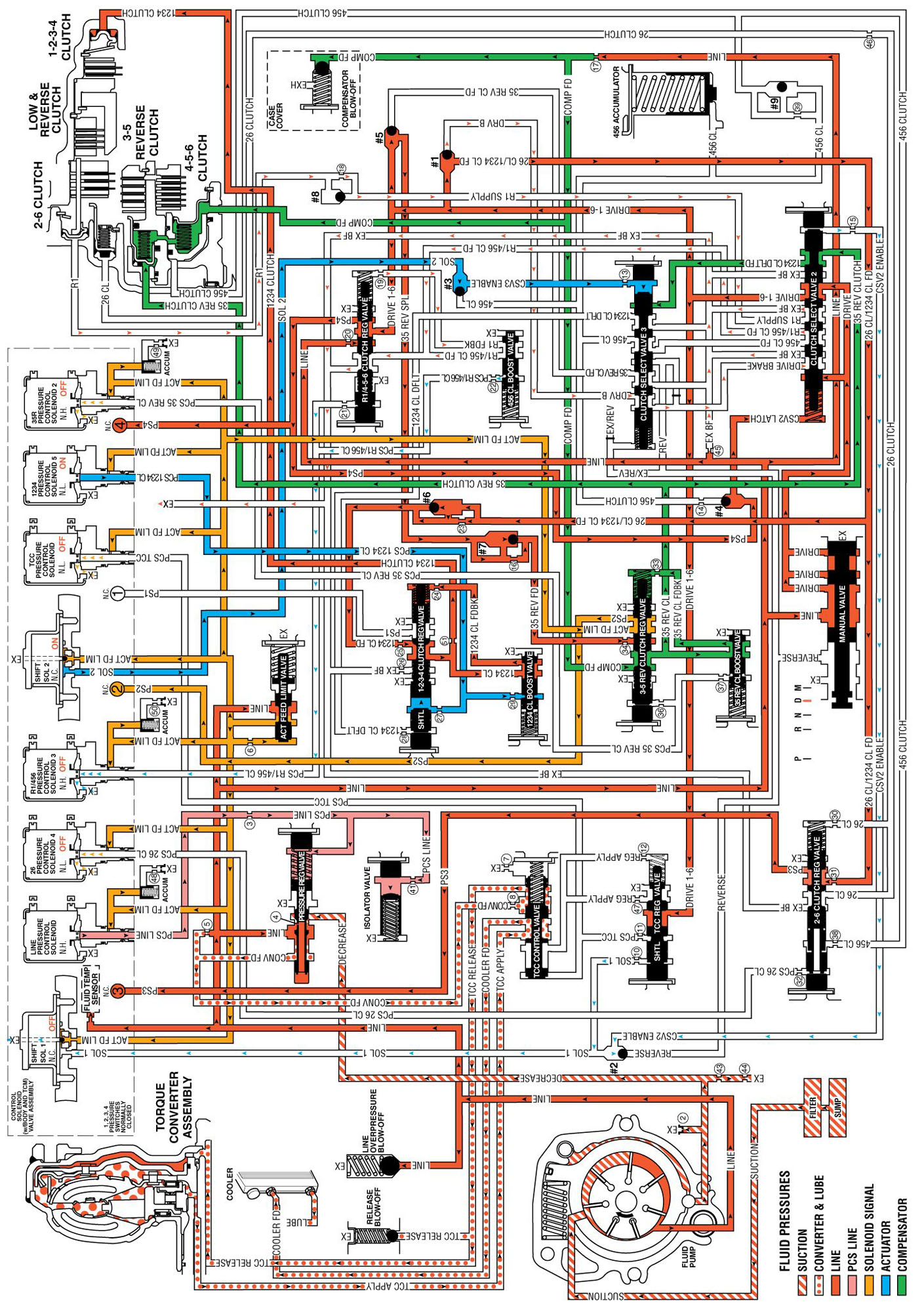

Neutral- Engine Running

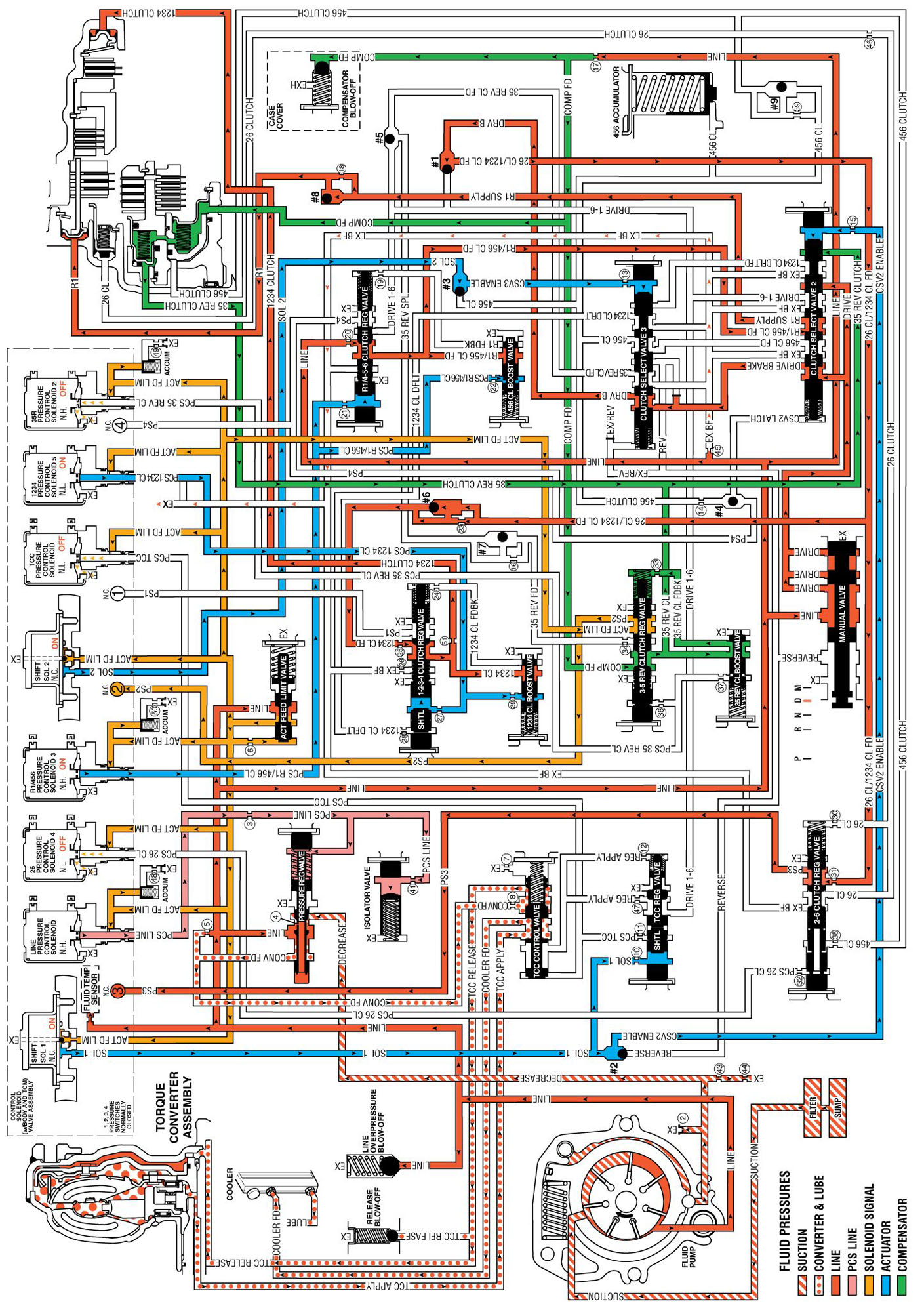

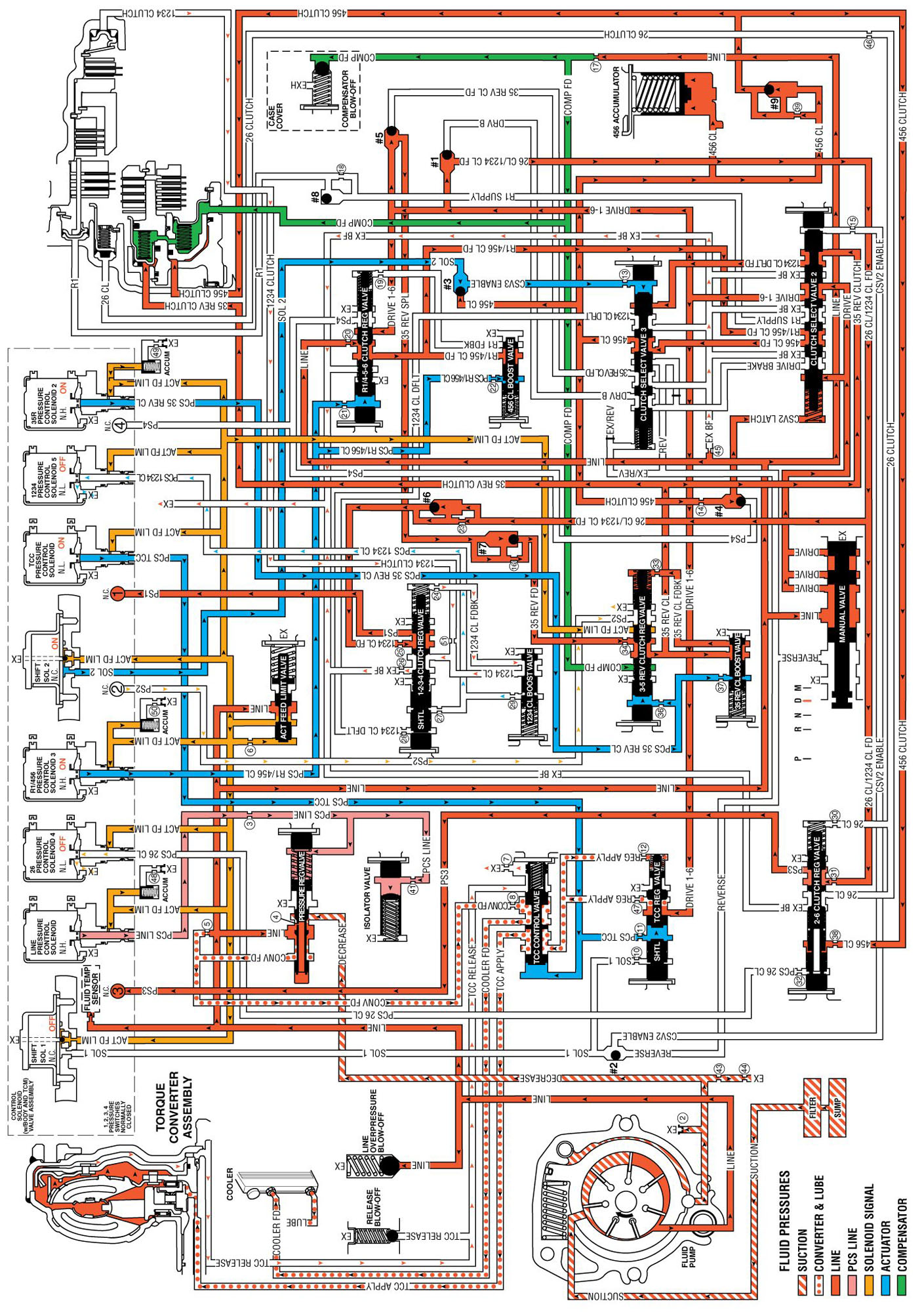

Drive Range

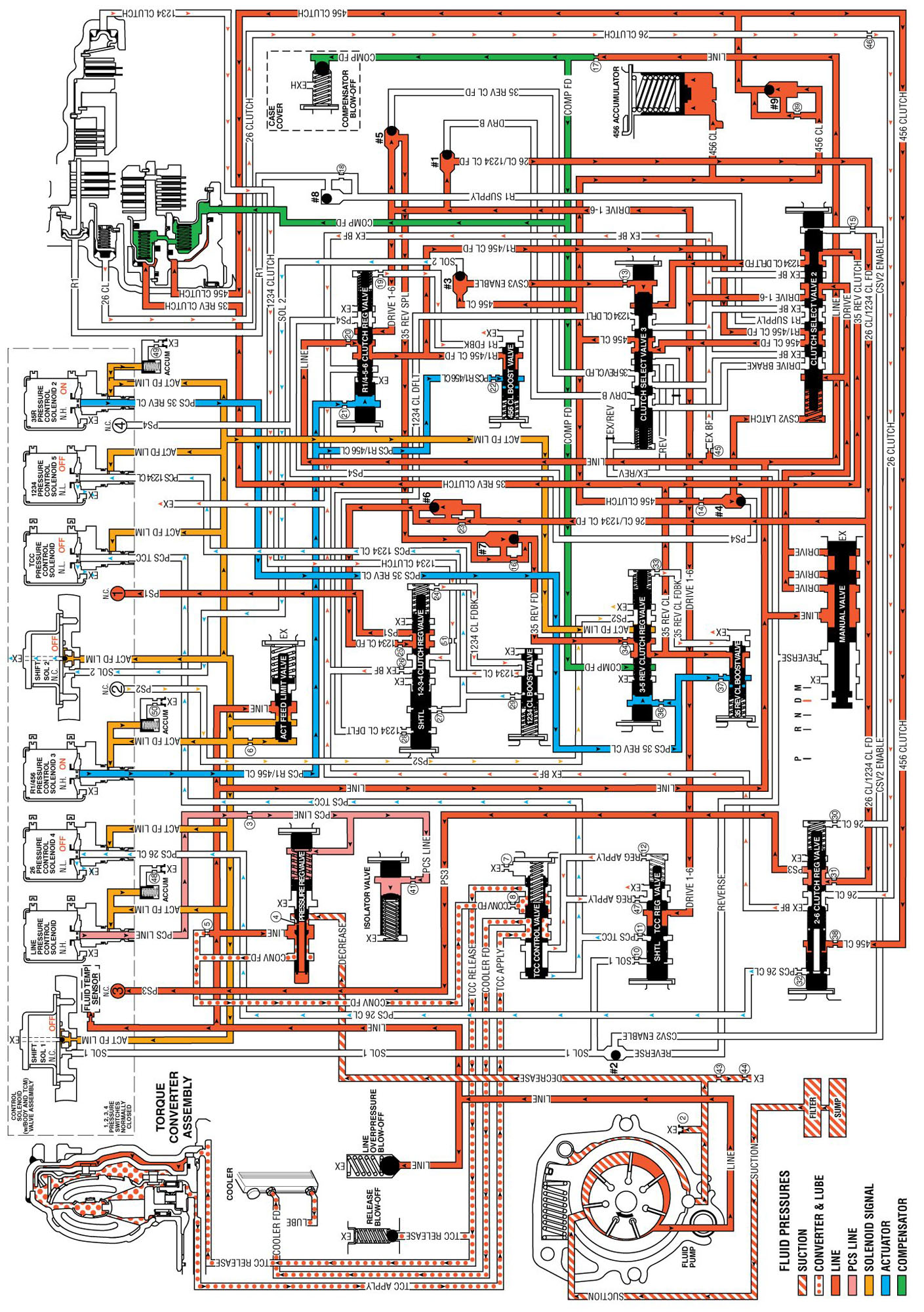

Drive Range, First Gear Engine Braking

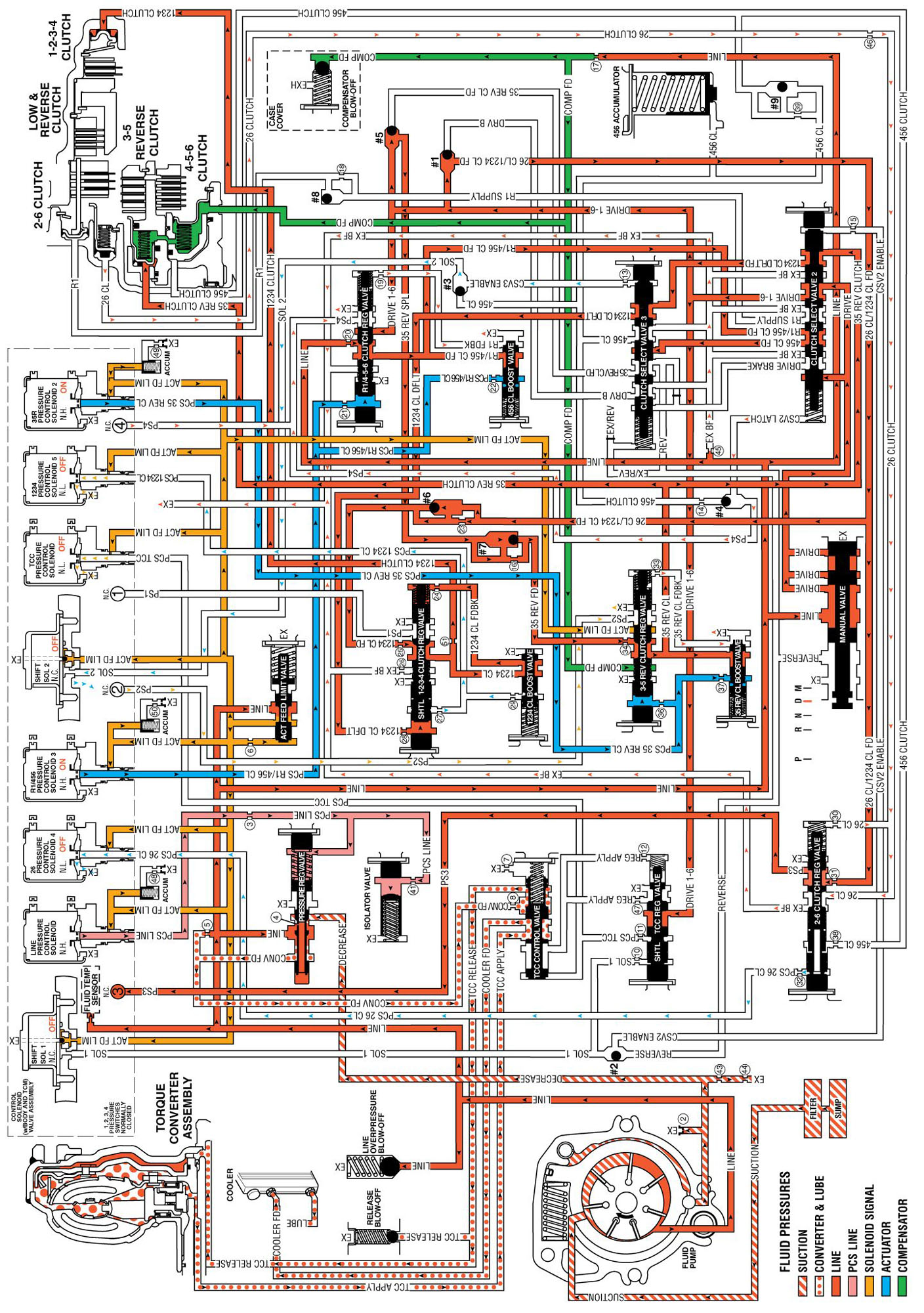

Drive Range, First Gear






Drive Range, Second Gear






Drive Range, Third Gear






Drive Range, Third Gear Default






Drive Range, Fourth Gear






Drive Range, Fifth Gear






Drive Range, Fifth Gear Default






Drive Range, Sixth Gear
