Steering Wheel Components




Instrument Panel/Center Console Component Views

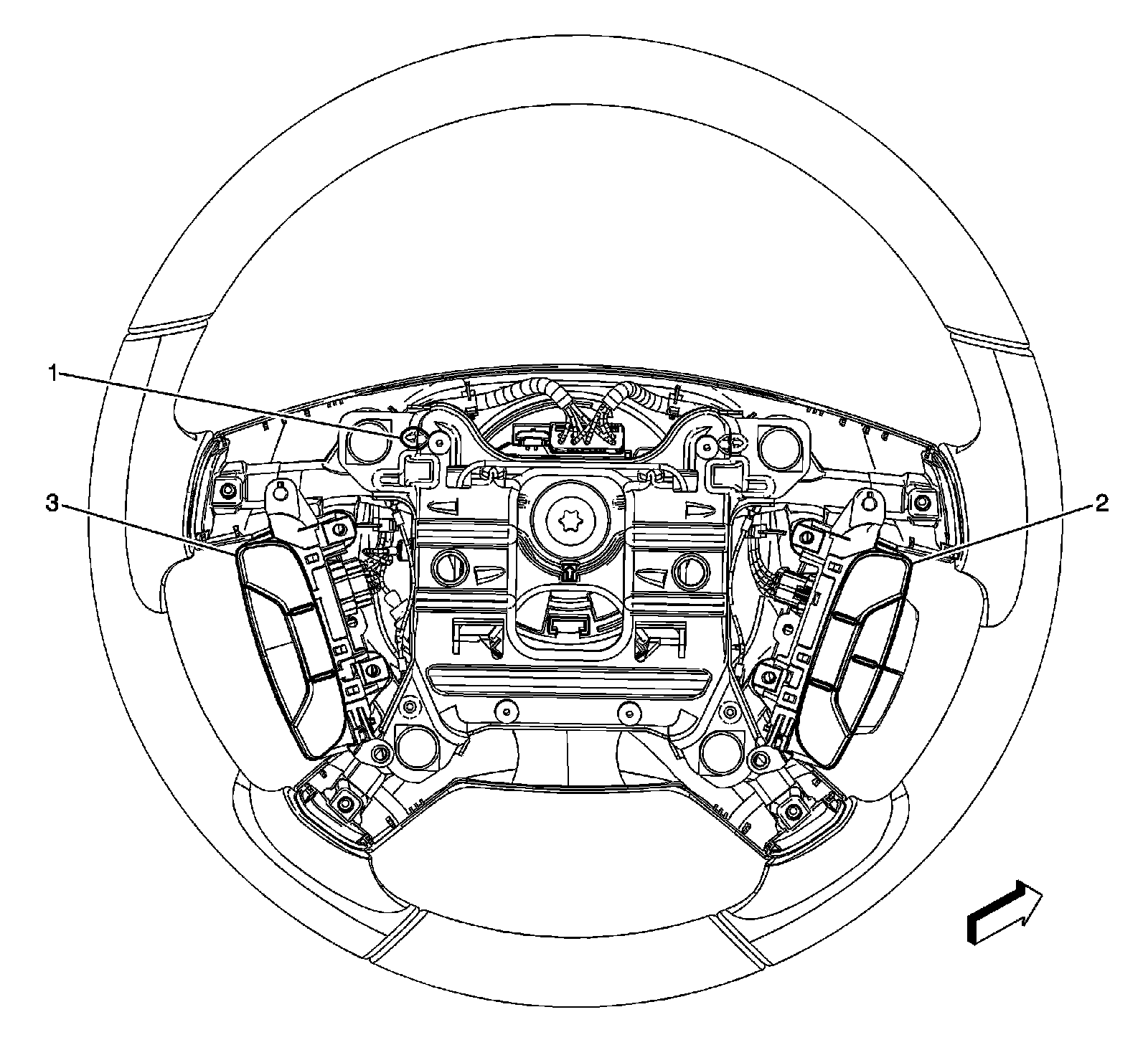

Steering Wheel Components





1 - Horn Switch

2 - Steering Wheel Control Switch - Right (UK3)

3 - Steering Wheel Control Switch - Left
