Engine Compartment Harness Routing

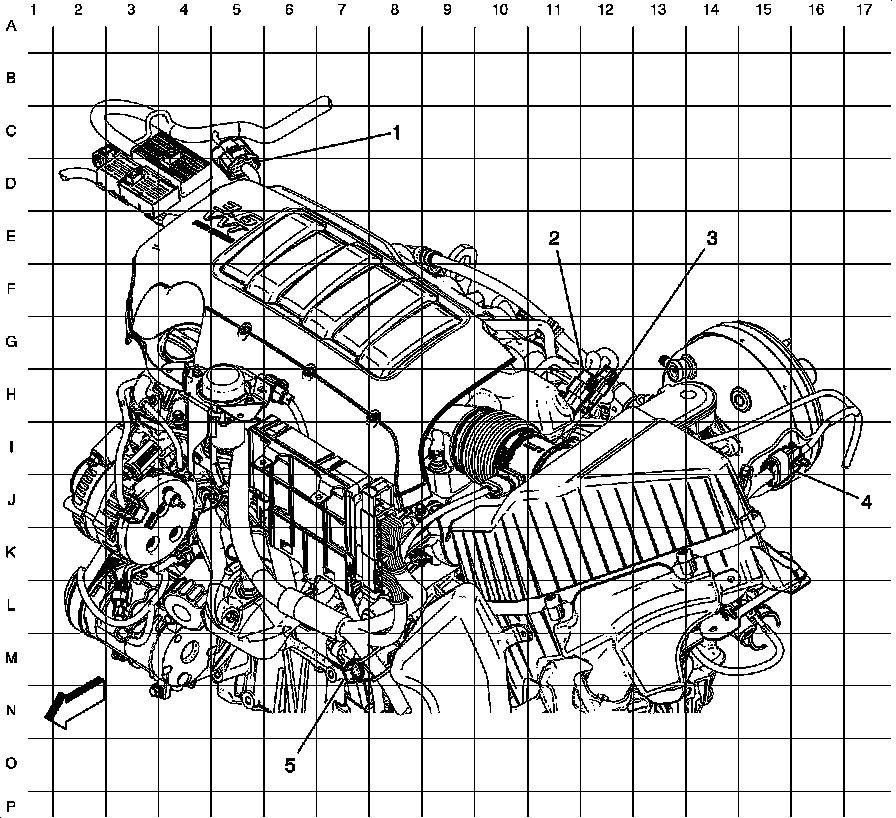

Harness Routing Views

Engine Compartment Harness Routing





1 - X100

2 - X161

3 - X160

4 - X111

5 - X115 (TSH or T26)
