Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

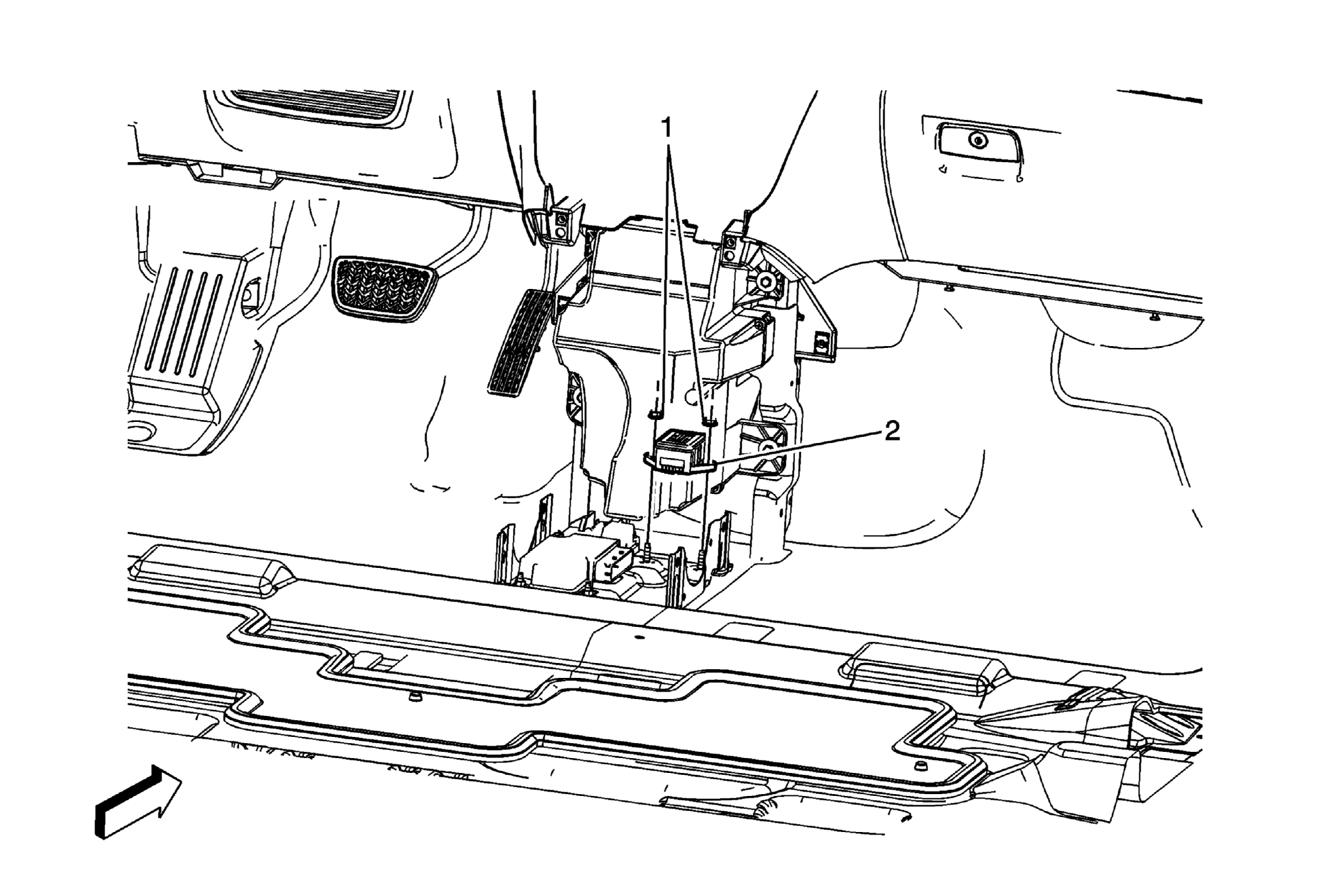

Fig 1: Yaw Sensor with Vehicle Lateral Accelerometer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove front floor console. Refer to Front Floor Console Replacement (Enclave) , Front Floor Console Replacement (Acadia) , Front Floor Console Replacement (Traverse) .
1	Vehicle Yaw Sensor and Lateral Accelerometer Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb ft)
2	Vehicle Yaw with Vehicle Lateral Accelerometer Sensor Assembly Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING:

Preliminary Procedures

Vehicle Yaw Sensor and Lateral Accelerometer Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb ft)

Vehicle Yaw with Vehicle Lateral Accelerometer Sensor Assembly
Procedure
Disconnect the electrical connector.
