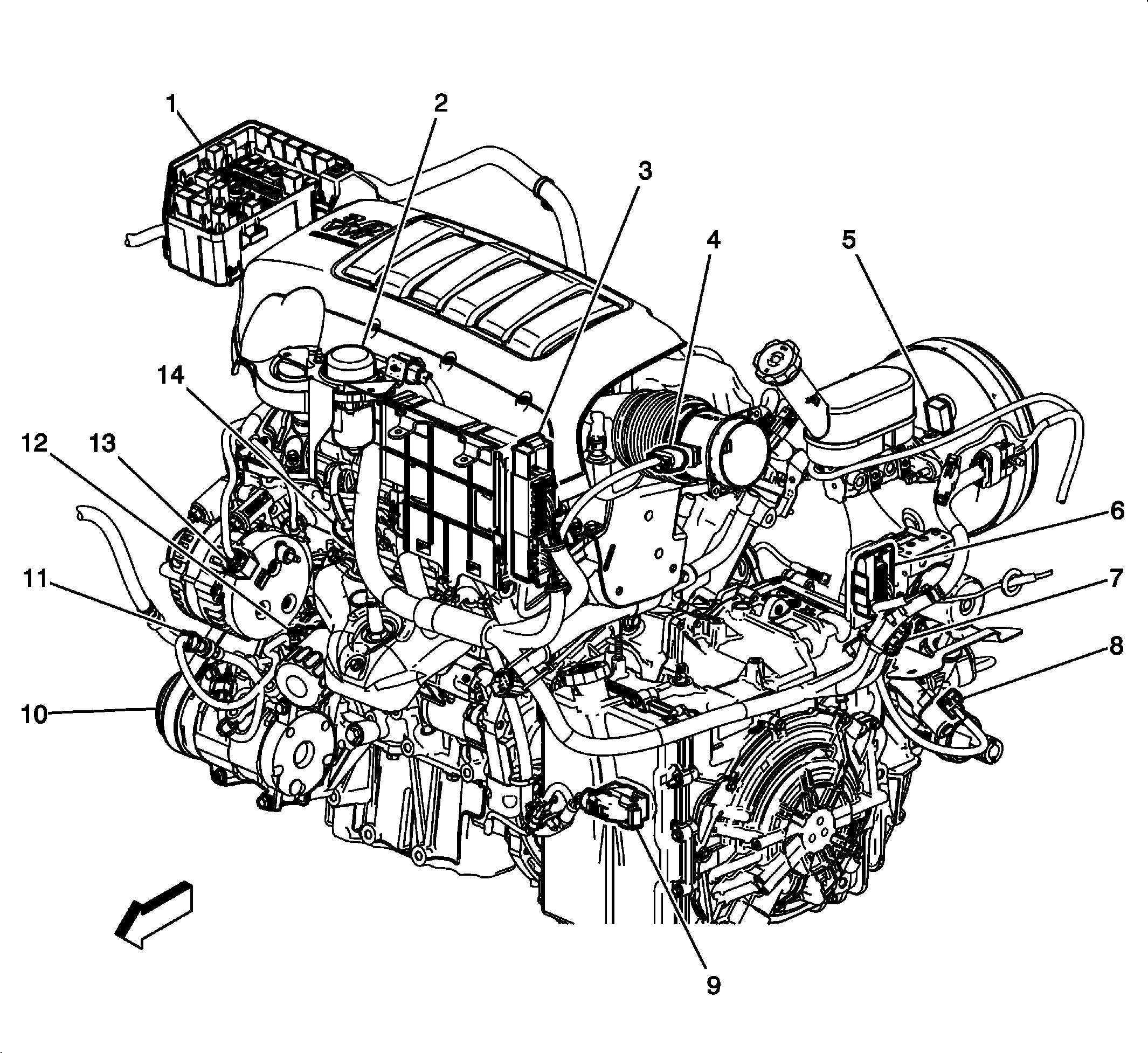

Engine Components - Front Left
Engine Components - Front Left
| Component Name | Callout |
|---|---|
| Fuse Block- Underhood | 1 |
| Brake Booster Pump- Auxiliary | 2 |
| Engine Control Module (ECM) | 3 |
| Multifunction Intake Air Sensor | 4 |
| Brake Booster Vacuum Sensor | 5 |
| Electronic Brake Control Module (EBCM) Connector | 6 |
| Wheel Speed Sensor (WSS) - Left Front Connector | 7 |
| Variable Effort Steering Actuator (NV7) Connector | 8 |
| Control Solenoid Valve Assembly | 9 |
| A/C Compressor Clutch | 10 |
| A/C Refrigerant Pressure Sensor | 11 |
| Engine Oil Pressure (EOP) Switch | 12 |
| Generator | 13 |
| Engine Coolant Temperature (ECT) Sensor | 14 |
