Removal Procedure

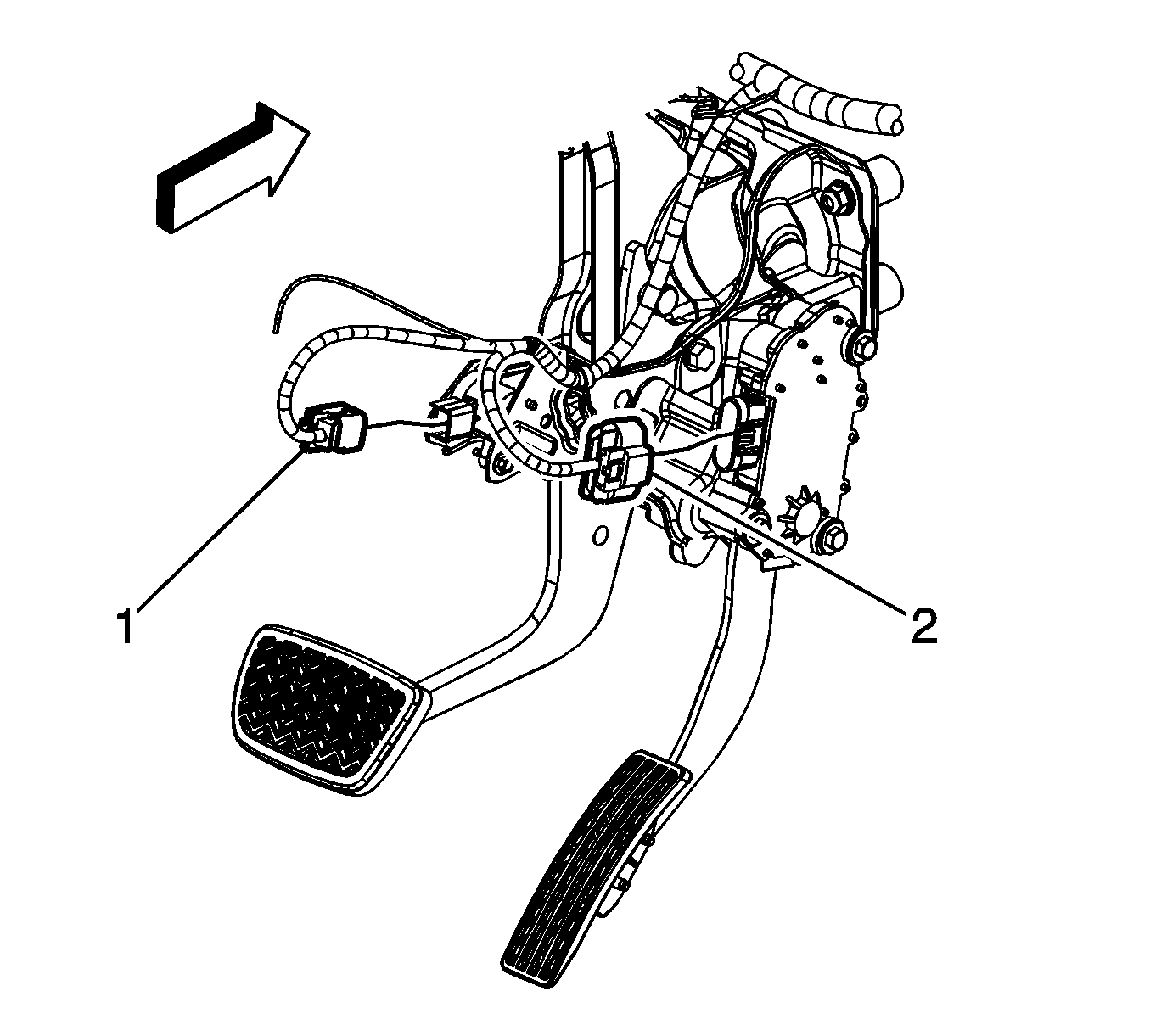

    Fig 1: Identifying Accelerator Pedal Position Sensor Assembly
    GM1858231Courtesy of GENERAL MOTORS COMPANY
  1. Remove the left instrument panel (I/P) insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Enclave) , Instrument Panel Insulator Panel Replacement - Left Side (Acadia) , Instrument Panel Insulator Panel Replacement - Left Side (Traverse) .
  2. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia) , Driver Knee Bolster Replacement (Traverse) , Driver Knee Bolster Replacement (Enclave) .
  3. Remove the I/P wiring harness electrical connector (2) from the accelerator pedal position (APP) sensor assembly.

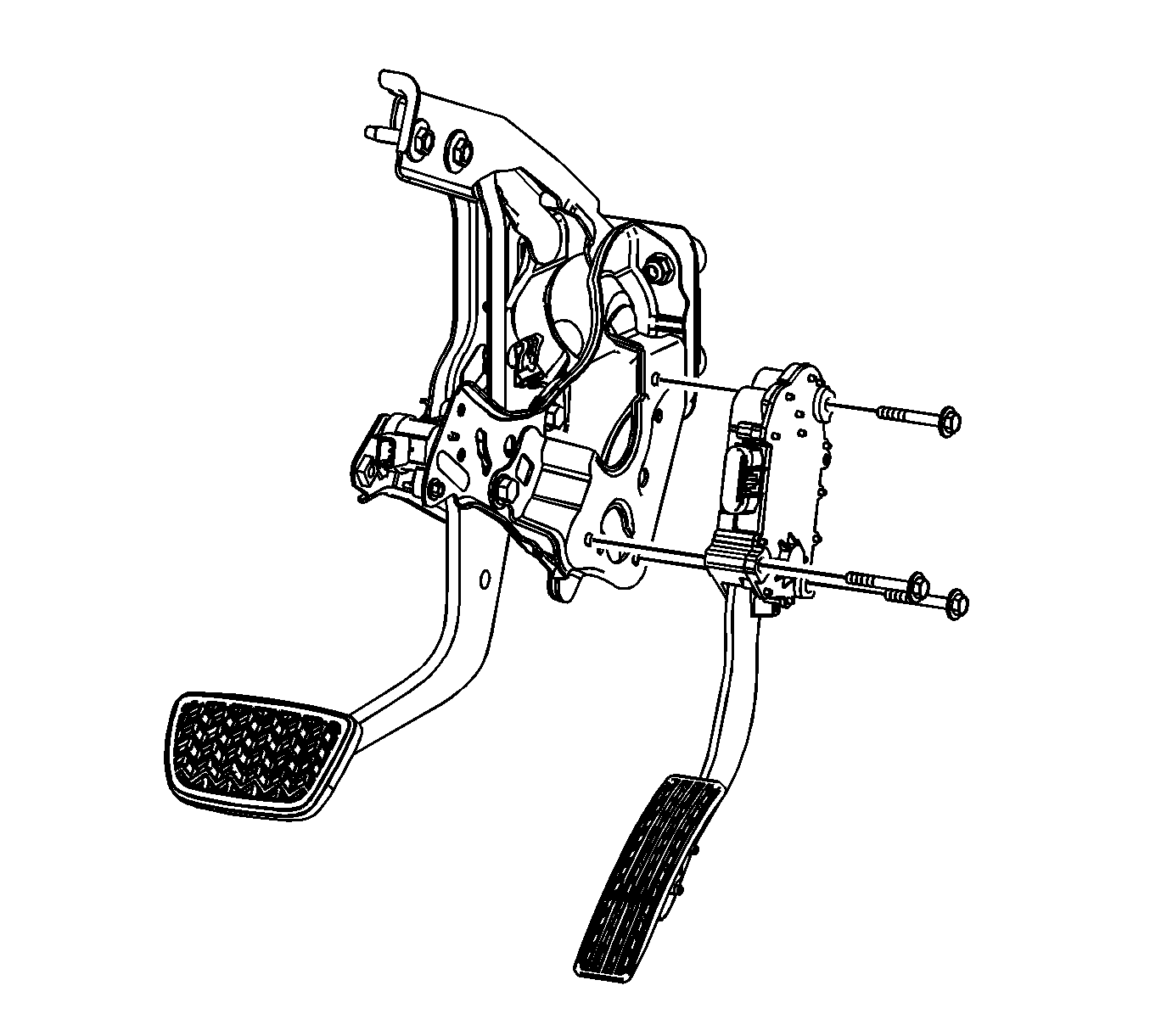

    4. Fig 2: View Of APP Sensor Bolts & Sensor
    GM1858232Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Due to clearance issues, the upper attachment bolt cannot be removed from the APP sensor assembly. Loosen the bolt completely and leave the bolt in the component until the assembly is removed from the vehicle.

  4. Remove the APP sensor bolts and sensor assembly from the vehicle.
